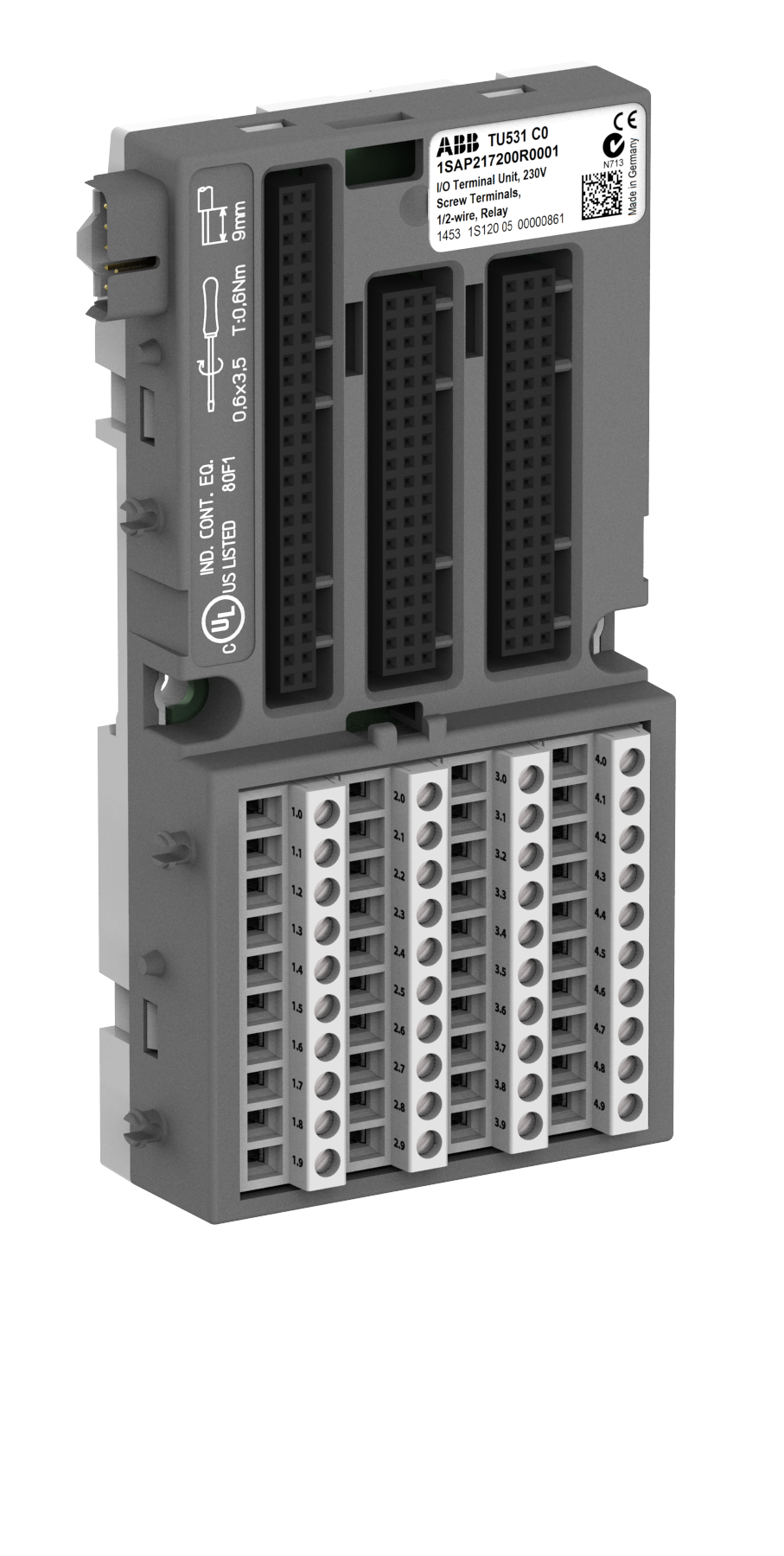

ABB 1SAP217200R0001 TU531 Screw Terminals 230V AC Relay I/O PLC Connection Module

% $-54.63
ABB 1SAP217200R0001 TU531 screw-terminal I/O base, 230V AC + relay, AC500 S500 PLC
ABB 1SAP217200R0001 TU531 screw-terminal I/O base, 230V AC + relay, AC500 S500 PLC

ABB 1SAP217200R0001 TU531 Screw Terminals 230V AC Relay I/O PLC Connection Module

Brand: ABB
Reference No: 1SAP217200R0001
Catalog No: TU531
Series: S500 I/O modules
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$54.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP217200R0001 (TU531) is a screw-terminal I/O base for the AC500 S500 modules that switch 230V AC loads and relay outputs, terminating field wiring on the DIN-rail base rather than on the module itself. That separation lets a faulty relay module be swapped without disturbing the 230V AC field wiring. ABB rates the base IP20 and supplies the terminal electronics at 24V DC.

Technical Specifications

Order code 1SAP217200R0001
Type code TU531
Brand ABB
Series S500 I/O modules (AC500)
EAN 4016779649254
Function For 230V AC and relay modules, screw terminals
Supply Voltage 24 V DC
Degree of Protection IP20
Net Weight 0.238 kg
Dimensions (L x H x W) 28 x 135 x 67.5 mm

Selection Notes

TU531 wires 230V AC and relay-output I/O modules through screw terminals that land directly on the DIN-rail base, keeping the AC side of the circuit off the plug-in module. That base-side termination means a faulty relay module can be pulled and replaced without re-landing the 230V AC field wiring. Use TU531 only with S500 modules built for 230V AC or relay outputs, since the terminal layout doesn't match the lower-voltage 24V DC analog/digital I/O bases.

Technical Details

Short Description
ABB TU531 screw-terminal I/O base for AC500 S500 230V AC and relay output modules. IP20, 24V DC supply.
Mounting Type
Terminal unit
Protection Type
IP20
Catalog No
TU531
Delivery Date (Days)
30 days
Model Number
TU531
Tariff Code
853890
