ABB 1SAP215100R0001 TU532-H 230 VAC Relay Spring Terminals Hot-Swap PLC Connection Module

% $-97.75

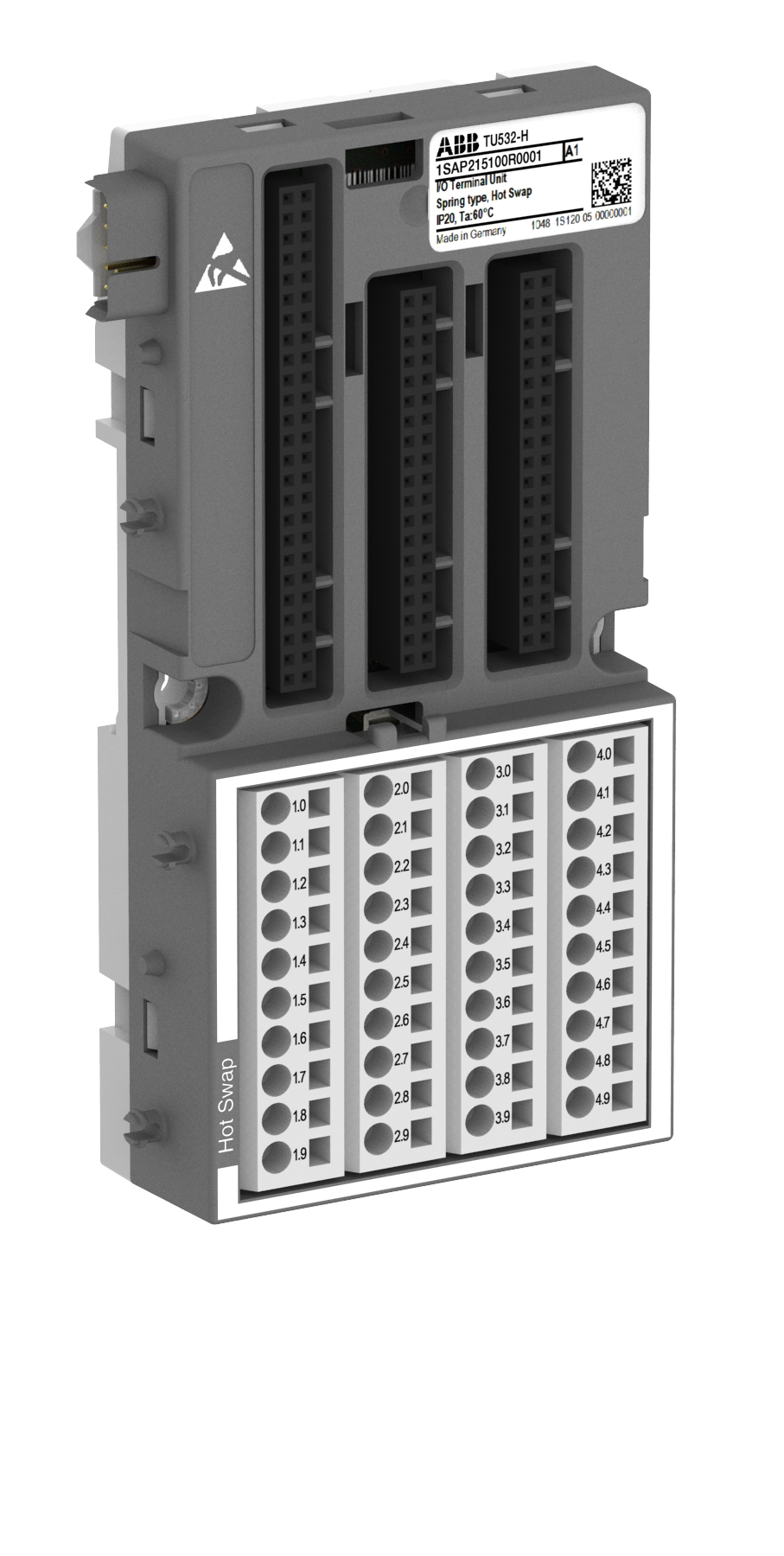

ABB 1SAP215100R0001 TU532-H PLC I/O terminal unit - 230 VAC hot-swap spring terminals
ABB 1SAP215100R0001 TU532-H PLC I/O terminal unit - 230 VAC hot-swap spring terminals

ABB 1SAP215100R0001 TU532-H 230 VAC Relay Spring Terminals Hot-Swap PLC Connection Module

Brand: ABB
Reference No: 1SAP215100R0001
Catalog No: TU532-H
Series: S500 I/O modules
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$97.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB TU532-H (order code 1SAP215100R0001) is a hot-swap variant of the S500 terminal unit for 230 VAC and relay modules, using spring terminals and an IP20 enclosure. Hot-swap means the I/O module mounted on it can be unplugged and replaced without removing power from the rest of the AC500 rack, unlike the standard spring-terminal base.

Technical Specifications

Order Code 1SAP215100R0001
Type Code TU532-H
Brand ABB
Series S500 I/O modules
EAN 4013614531729
Net Weight 0.166 kg
Gross Weight 0.196 kg
Dimensions (L x H x W) 28 x 135 x 67.5 mm
Function For 230 VAC and relay modules, spring terminals, hot swap
Degree of Protection IP20

Selection Notes

Pick the TU532-H over the standard spring-terminal base when the station cannot be powered down to swap a 230 VAC or relay I/O module — maintenance on continuously running lines benefits most from the hot-swap design. If downtime for module replacement is acceptable, the standard base covers the same 230 VAC relay wiring at a lower cost.

Technical Details

Short Description
S500 I/O terminal unit (TU532-H) for 230 VAC and relay modules, spring terminals with hot-swap, IP20.
Mounting Type
Terminal unit
Protection Type
IP20
Catalog No
TU532-H
Delivery Date (Days)
30 days
Model Number
TU532-H
Tariff Code
853890

Downloads
