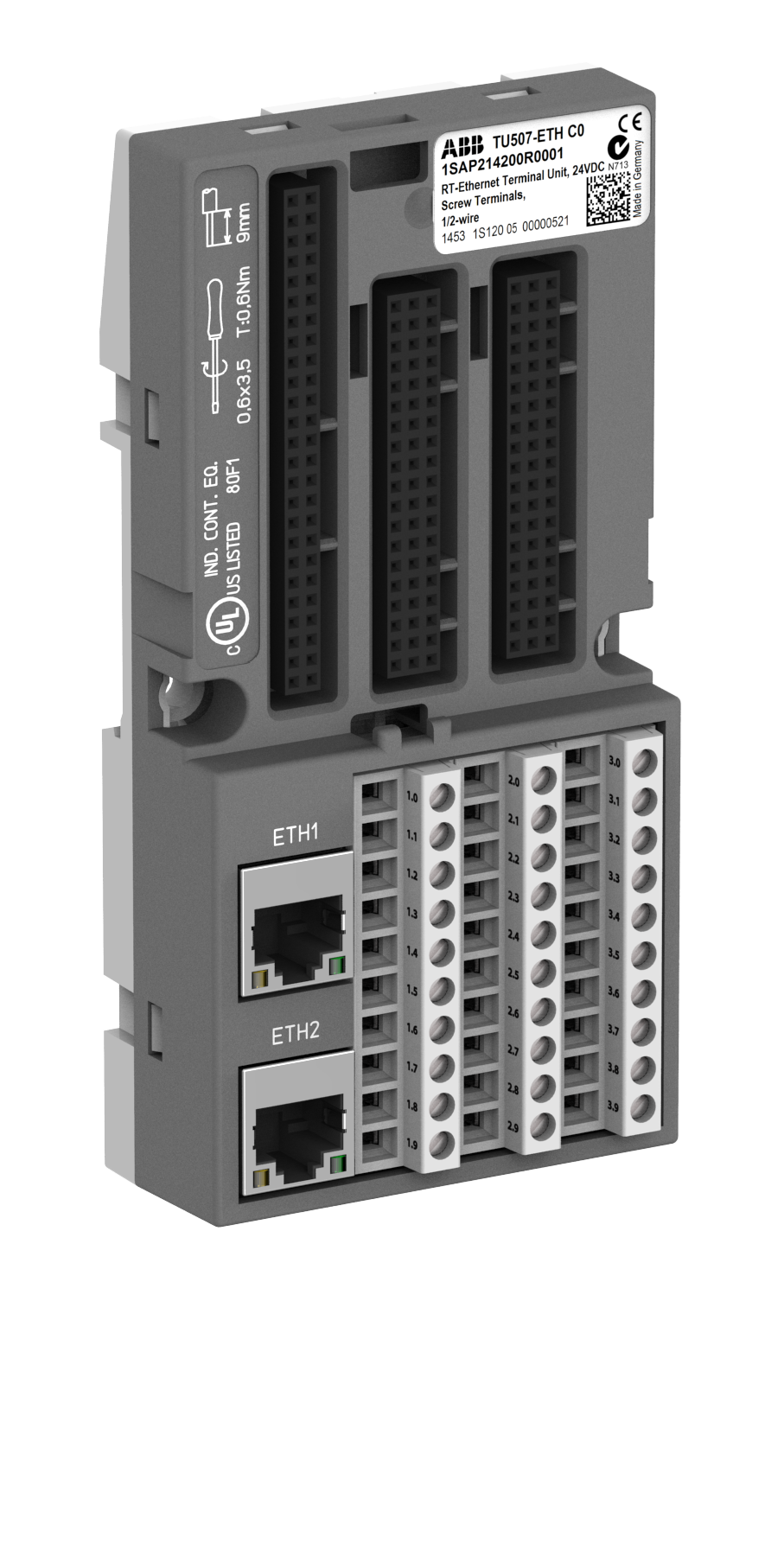

ABB 1SAP214200R0001 TU507-ETH Screw Terminals 2x RJ45 Ethernet PLC Connection Module

% $-69.00
ABB 1SAP214200R0001 TU507-ETH screw-terminal unit, 2x RJ45 Ethernet, AC500 S500 PLC
ABB 1SAP214200R0001 TU507-ETH screw-terminal unit, 2x RJ45 Ethernet, AC500 S500 PLC

ABB 1SAP214200R0001 TU507-ETH Screw Terminals 2x RJ45 Ethernet PLC Connection Module

Brand: ABB
Reference No: 1SAP214200R0001
Catalog No: TU507-ETH
Series: Communication interface modules
Tariff Code (HS): 853890
Communication: Ethernet, 2x RJ45
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$69.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP214200R0001 (TU507-ETH) is a screw-terminal interface unit for the AC500 S500 communication interface modules, built with 2 RJ45 connectors for Ethernet-based protocols. It sits between the communication module and the field network cabling, letting the module be unplugged for service without disturbing the Ethernet wiring itself. ABB rates it IP20 and specifies a 24V DC supply for the terminal electronics.

Technical Specifications

Order code 1SAP214200R0001
Type code TU507-ETH
Brand ABB
Series Communication interface modules (AC500 S500)
EAN 4016779649216
Function For Ethernet protocols, screw terminals
Connectors 2x RJ45
Supply Voltage 24 V DC
Degree of Protection IP20
Net Weight 0.223 kg
Dimensions (L x H x W) 28 x 135 x 67.5 mm

Selection Notes

TU507-ETH's screw terminals suit panel-building standards that require torque-verified field connections for the 24V DC supply feed. It carries the same 2 RJ45 Ethernet layout as the spring-terminal version of this base, so the decision between the two comes down to the panel builder's termination standard rather than electrical capability. Use it only with a communication interface module built for 2 Ethernet ports, since the RJ45 count is fixed by the base.

Technical Details

Short Description
ABB TU507-ETH screw-terminal interface unit with 2 RJ45 ports for Ethernet-based AC500 S500 PLC communication modules. IP20, 24V DC supply.
Mounting Type
Terminal unit
Protection Type
IP20
Catalog No
TU507-ETH
Delivery Date (Days)
30 days
Model Number
TU507-ETH
Tariff Code
853890
