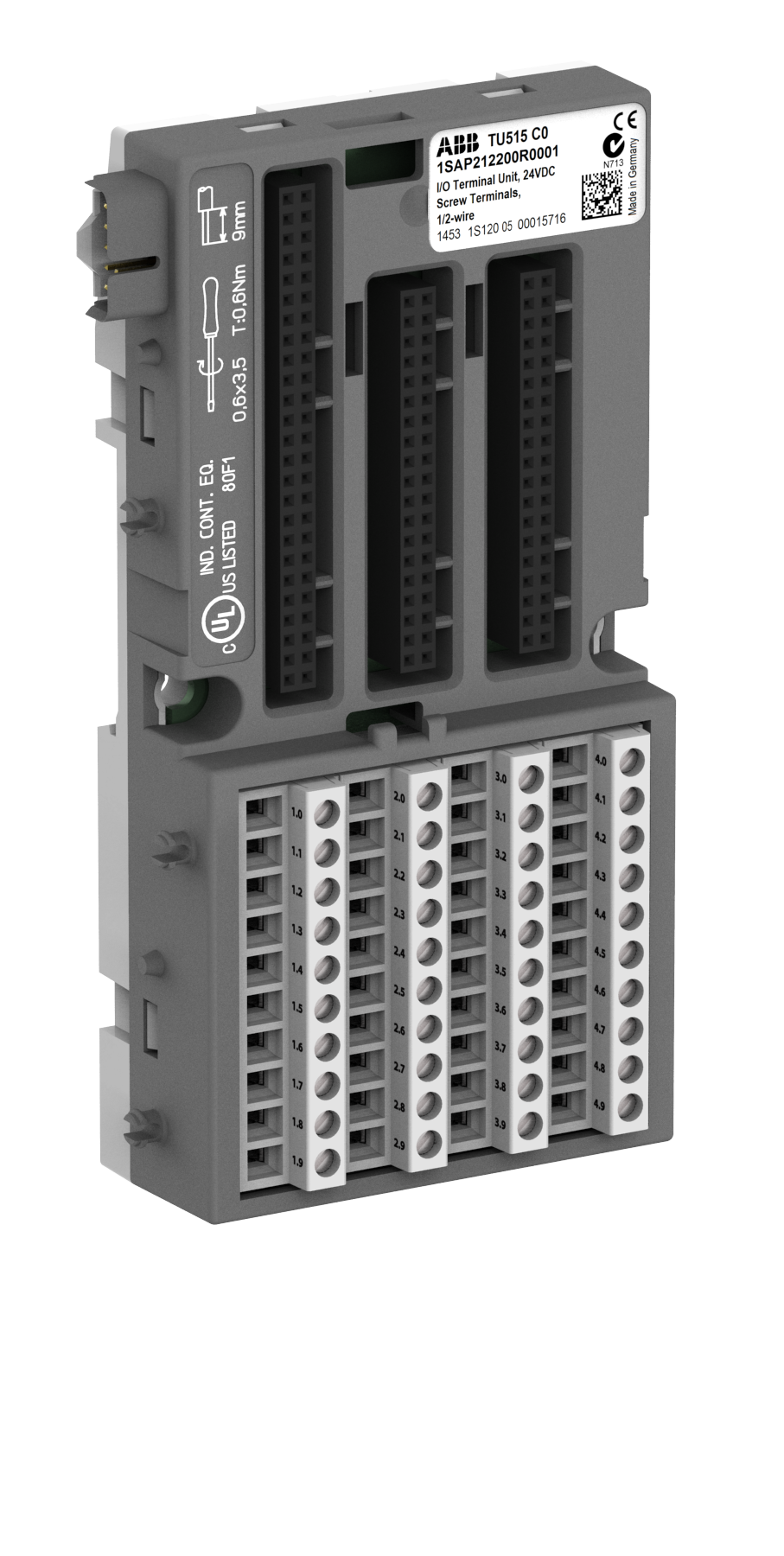

ABB 1SAP212200R0001 TU515 Screw Terminals Analog 24V DC I/O PLC Connection Module

% $-46.00
ABB 1SAP212200R0001 TU515 screw-terminal I/O base, analog + 24V DC digital, AC500 S500
ABB 1SAP212200R0001 TU515 screw-terminal I/O base, analog + 24V DC digital, AC500 S500

ABB 1SAP212200R0001 TU515 Screw Terminals Analog 24V DC I/O PLC Connection Module

Brand: ABB
Reference No: 1SAP212200R0001
Catalog No: TU515
Series: S500 I/O modules
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$46.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP212200R0001 (TU515) is a screw-terminal I/O base for the AC500 S500 analog and 24V DC digital I/O modules, terminating field signal wiring on the DIN-rail base rather than on the module itself. That separation lets a faulty module be swapped without disturbing the field wiring. ABB rates the base IP20 and supplies the terminal electronics at 24V DC.

Technical Specifications

Order code 1SAP212200R0001
Type code TU515
Brand ABB
Series S500 I/O modules (AC500)
EAN 4016779649223
Function For analog and 24V DC digital modules, screw terminals
Supply Voltage 24 V DC
Degree of Protection IP20
Net Weight 0.232 kg
Dimensions (L x H x W) 28 x 135 x 67.5 mm

Selection Notes

TU515's screw terminals suit panels where torque-verified field connections are required for analog and 24V DC digital signals routed through this base. It shares its pinout and function with the spring-terminal versions of this base, so the choice between screw and spring comes down to the panel builder's termination standard. Unlike the hot-swap variant of this base, TU515 requires the field wiring to be isolated before the I/O module is removed.

Technical Details

Short Description
ABB TU515 screw-terminal I/O base for AC500 S500 analog and 24V DC digital modules. IP20, 24V DC supply.
Mounting Type
Terminal unit
Protection Type
IP20
Catalog No
TU515
Delivery Date (Days)
30 days
Model Number
TU515
Tariff Code
853890
