ABB 1SAP187400R0004 TA5212-TSCL PM503x PM505x PM507x Screw Front Terminal Block PLC Connection Module

% $-11.50
ABB 1SAP187400R0004 TA5212-TSCL terminal block set - PM503x/505x/507x screw front
ABB 1SAP187400R0004 TA5212-TSCL terminal block set - PM503x/505x/507x screw front

ABB 1SAP187400R0004 TA5212-TSCL PM503x PM505x PM507x Screw Front Terminal Block PLC Connection Module

Brand: ABB
Reference No: 1SAP187400R0004
Catalog No: TA5212-TSCL
Series: Accessories
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

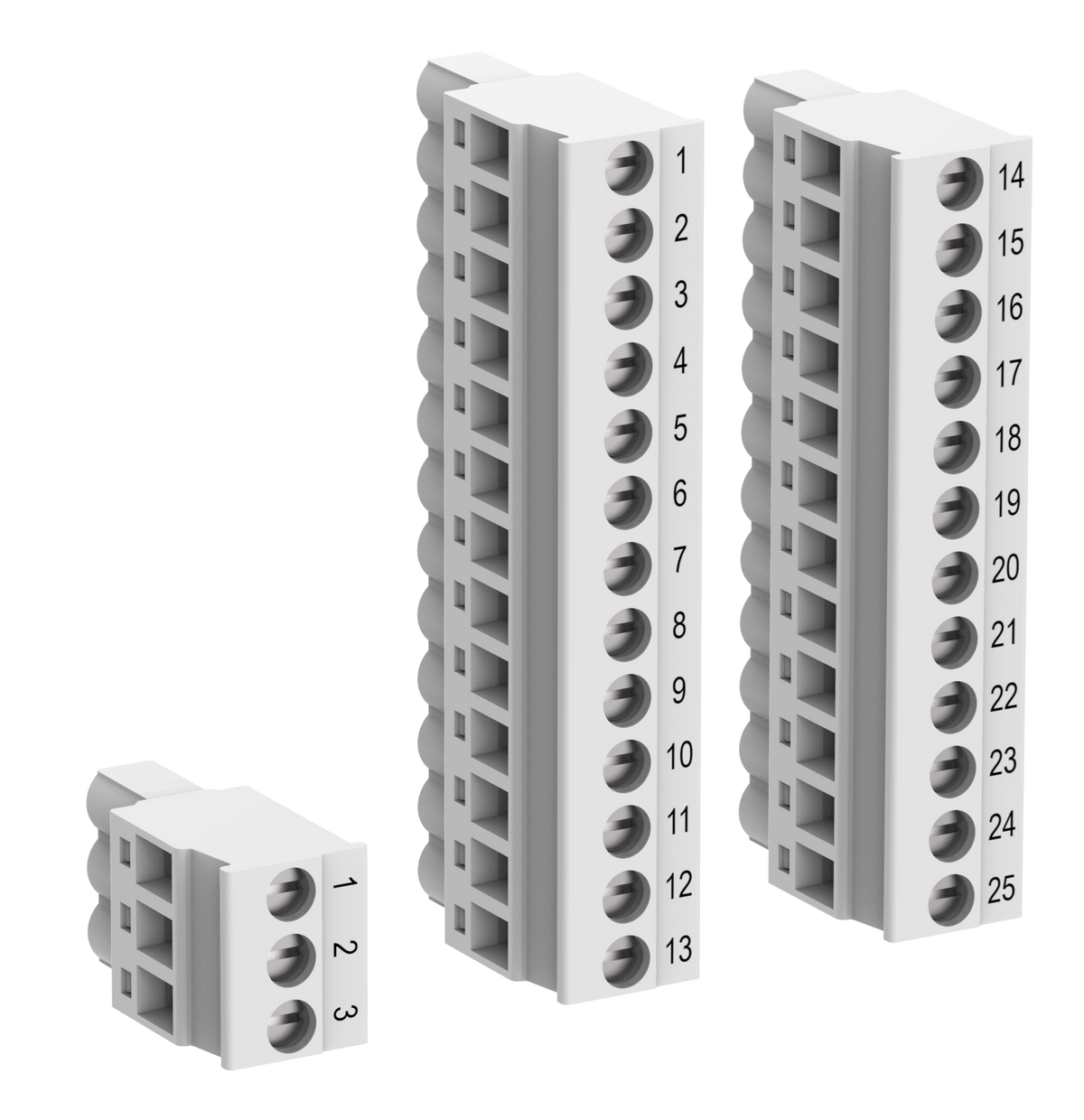

The ABB TA5212-TSCL (order code 1SAP187400R0004) is a terminal block set for the AC500-eCo PM503x, PM505x and PM507x CPUs. It provides 1 power-supply connector and 2 I/O connectors with screw terminals on the front and cable entry from the side, for wiring larger eCo CPUs. The second I/O connector reflects the larger CPU's higher channel count compared with the single-connector PM5012 set.

Technical Specifications

Order code 1SAP187400R0004
Type code TA5212-TSCL
Brand ABB
Series AC500-eCo
EAN 4013614551888
Function for PM503x, PM505x and PM507x. Screw front / cable side. 1 power supply, 2 I/O connectors
Accessory Type Electrical: Plug
Degree of Protection IP20
Net Weight 0.047 kg
Gross Weight 0.054 kg
Dimensions (L x W x H) 40 x 100 x 165 mm

Selection Notes

Use the TA5212-TSCL on PM503x, PM505x and PM507x CPUs, which need 2 I/O connectors rather than the single connector on a PM5012; the TA5212-TSPF gives the same connector count with spring terminals and front cable entry instead. The screw-front, cable-side layout matches the TA5211-TSCL-B style used on the smaller PM5012 set.

Technical Details

Short Description
ABB TA5212-TSCL terminal block set: 1 PSU + 2 I/O connectors, screw front/cable side, for PM503x/505x/507x.
Mounting Type
Terminal block (clip-on, PM503x/PM505x/PM507x)
Protection Type
IP20
Catalog No
TA5212-TSCL
Delivery Date (Days)
30 days
Model Number
TA5212-TSCL
Tariff Code
853890
