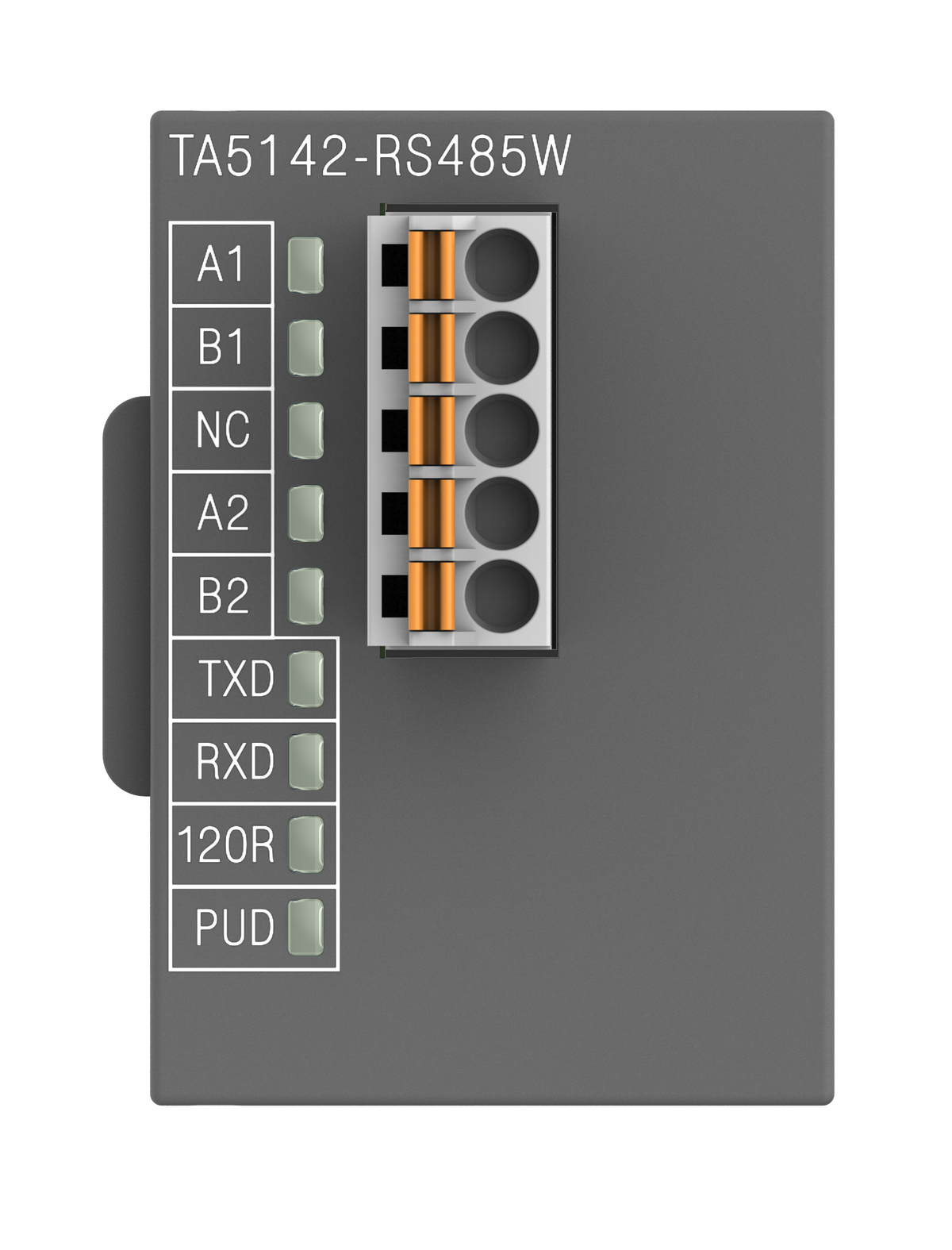

ABB 1SAP187300R0203 TA5142-RS485W Non-Isolated RS485 Serial Option Board PLC I/O Module

% $-34.50
ABB 1SAP187300R0203 TA5142-RS485W PLC I/O Module - Non-Isolated RS485
ABB 1SAP187300R0203 TA5142-RS485W PLC I/O Module - Non-Isolated RS485

ABB 1SAP187300R0203 TA5142-RS485W Non-Isolated RS485 Serial Option Board PLC I/O Module

Brand: ABB
Reference No: 1SAP187300R0203
Catalog No: TA5142-RS485W
Series: Accessories
Tariff Code (HS): 853710
Communication: RS485 (non-isolated)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$34.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP187300R0203 (TA5142-RS485W) is an AC500-eCo serial adapter option board that adds a non-isolated RS485 port to the CPU. It plugs into the eCo CPU's option slot with spring terminals fitted, giving the controller a Modbus RTU or custom RS485 link for installations contained within a single, common-earth enclosure.

Technical Specifications

Order code 1SAP187300R0203
Type code TA5142-RS485W
Brand ABB
Series AC500-eCo
Function Serial adapter option board, RS485 non isolated
Interface RS485
Isolation Non-isolated
Terminal type Spring (included)
Net weight 0.018 kg
Gross weight 0.033 kg
Length 54.2 mm
Height 42 mm
Width 28.5 mm
EAN 4053546054217

Selection Notes

Without galvanic isolation, this board costs less than the isolated version but should stay on a bus that shares a common ground with the CPU, typically a single-enclosure installation. Choose the isolated RS485 board instead when the bus spans separate enclosures or ground potentials, or the RS232 board for a point-to-point link rather than a multi-drop network.

Technical Details

Short Description
AC500-eCo serial adapter option board, non-isolated RS485, spring terminals included.
Mounting Type
Option board, CPU slot-in
Catalog No
TA5142-RS485W
Delivery Date (Days)
30 days
Model Number
TA5142-RS485W
Tariff Code
853710
