ABB 1SAP187300R0201 TA5141-RS232IW Isolated RS232 Serial Option Board PLC I/O Module

% $-54.63
ABB 1SAP187300R0201 TA5141-RS232IW PLC I/O Module - Isolated RS232 Port
ABB 1SAP187300R0201 TA5141-RS232IW PLC I/O Module - Isolated RS232 Port

ABB 1SAP187300R0201 TA5141-RS232IW Isolated RS232 Serial Option Board PLC I/O Module

Brand: ABB
Reference No: 1SAP187300R0201
Catalog No: TA5141-RS232IW
Series: Accessories
Tariff Code (HS): 853710
Communication: RS232 (isolated)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$54.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

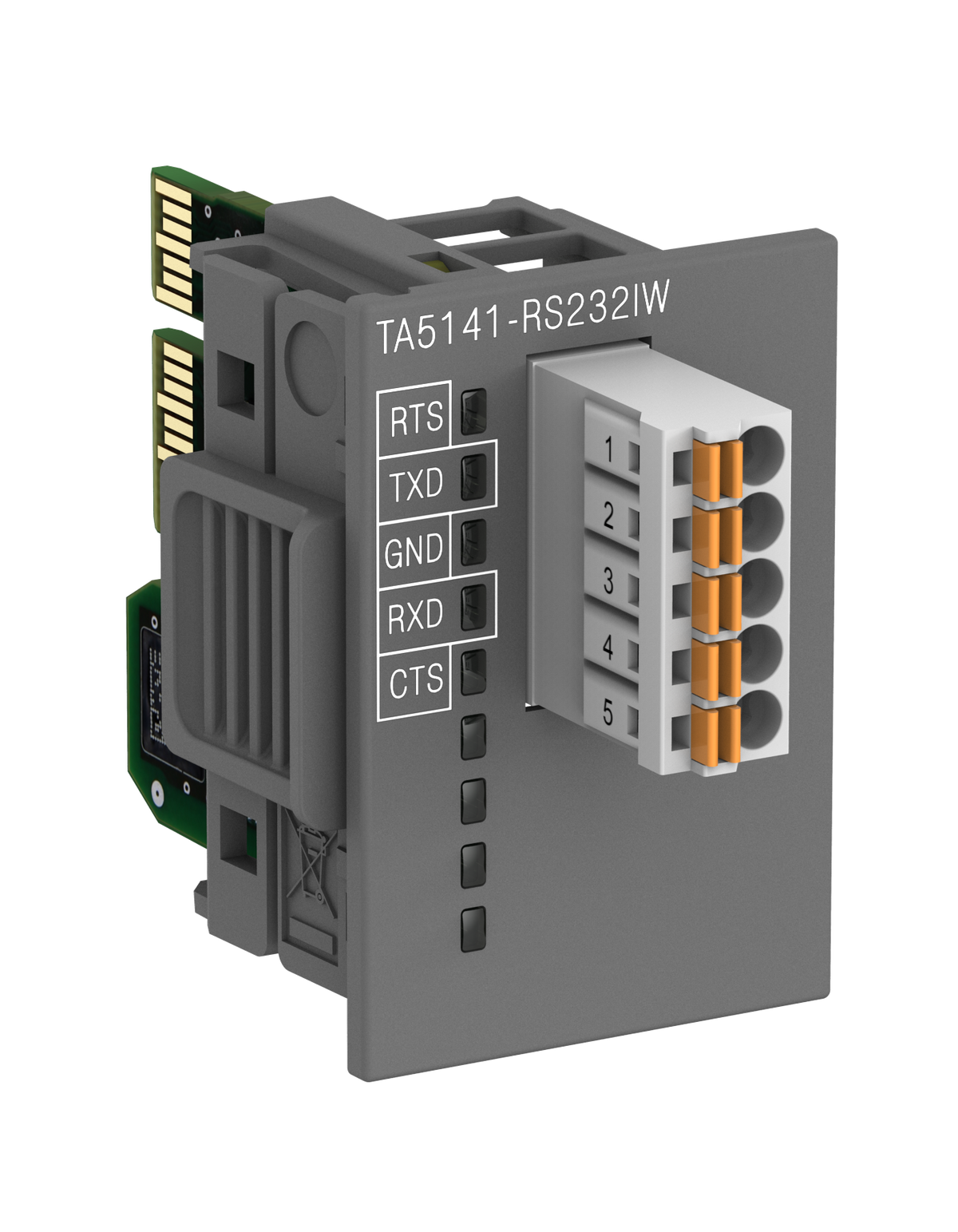

The ABB 1SAP187300R0201 (TA5141-RS232IW) is an AC500-eCo serial adapter option board that adds a galvanically isolated RS232 port to the CPU. It plugs into the eCo CPU's option slot and ships with spring terminals fitted, giving the controller a point-to-point serial link to third-party instruments or modems without exposing the CPU's logic ground to the external device.

Technical Specifications

Order code 1SAP187300R0201
Type code TA5141-RS232IW
Brand ABB
Series AC500-eCo
Function Serial adapter option board, RS232 isolated
Interface RS232
Isolation Galvanically isolated
Terminal type Spring (included)
Net weight 0.018 kg
Gross weight 0.033 kg
Length 54.2 mm
Height 42 mm
Width 28.5 mm
EAN 4053546054194

Selection Notes

Galvanic isolation on this RS232 port protects the CPU from ground-potential differences when the connected serial device sits on separate wiring, which matters where the instrument and the PLC are not on a common earth. Pick an RS485 variant instead for multi-drop serial networks or longer cable runs, or the non-isolated board when isolation is not required and lower cost matters more.

Technical Details

Short Description
AC500-eCo serial adapter option board, isolated RS232, spring terminals included.
Mounting Type
Option board, CPU slot-in
Catalog No
TA5141-RS232IW
Delivery Date (Days)
30 days
Model Number
TA5141-RS232IW
Tariff Code
853710
