ABB 1SAP187300R0005 TA5146-CN Isolated CAN-Bus Serial Adapter PLC I/O Module

% $-48.88

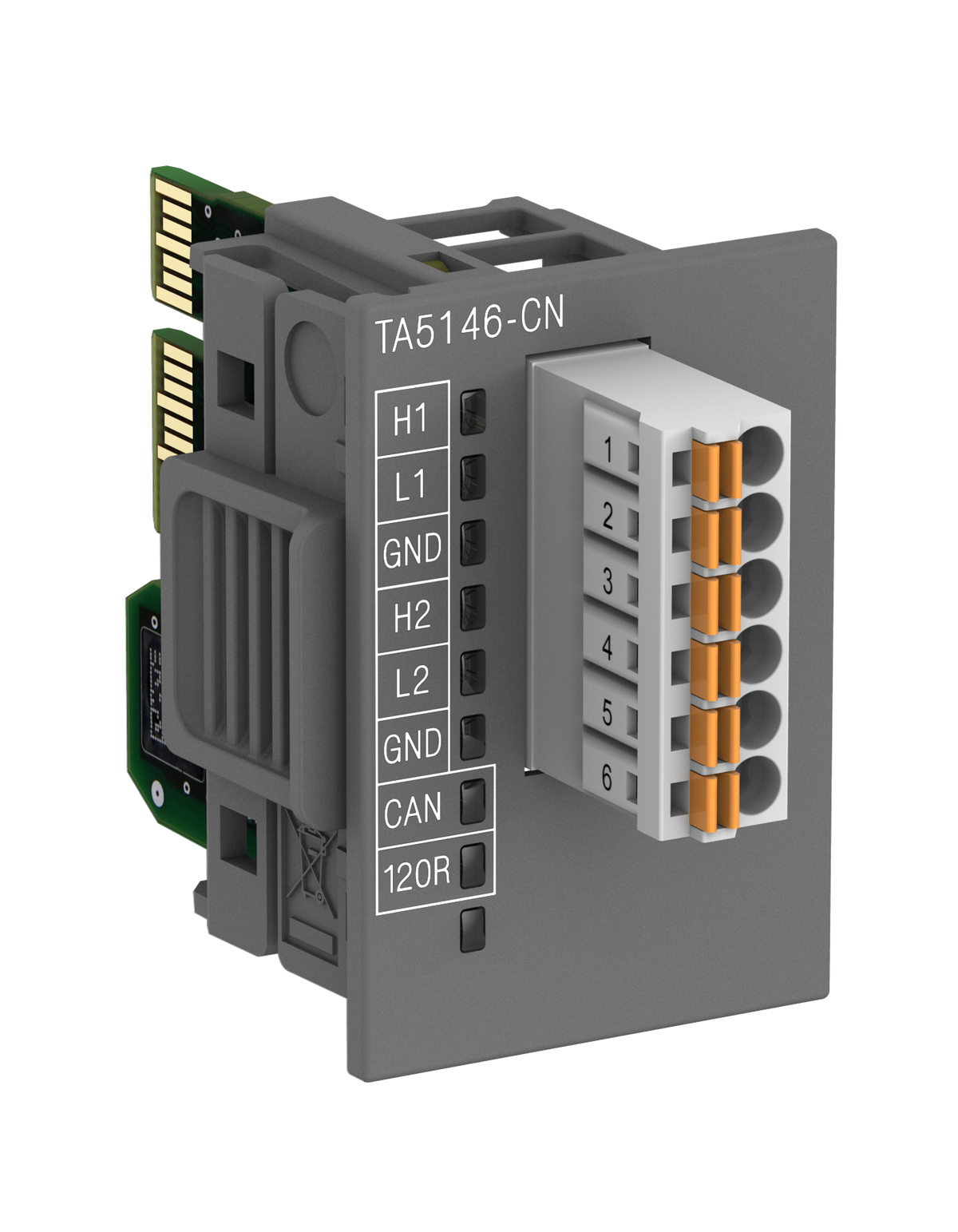

ABB 1SAP187300R0005 TA5146-CN option board - isolated CAN-bus serial adapter
ABB 1SAP187300R0005 TA5146-CN option board - isolated CAN-bus serial adapter

ABB 1SAP187300R0005 TA5146-CN Isolated CAN-Bus Serial Adapter PLC I/O Module

Brand: ABB
Reference No: 1SAP187300R0005
Catalog No: TA5146-CN
Series: Accessories
Tariff Code (HS): 853710
Communication: CAN-bus (isolated)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$48.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB TA5146-CN (order code 1SAP187300R0005) is a serial adapter option board for AC500-eCo PLCs. It adds an electrically isolated CAN-bus port on spring terminals, letting the CPU join a CAN network for distributed control or device communication while isolating the bus from controller ground. The isolation barrier keeps the CAN bus reference separate from the CPU's own ground, useful when nodes on the network sit at different ground potentials.

Technical Specifications

Order code 1SAP187300R0005
Type code TA5146-CN
Brand ABB
Series AC500-eCo
EAN 4053546123609
Function CAN isolated. Spring terminals included
Net Weight 0.018 kg
Gross Weight 0.033 kg
Dimensions (L x W x H) 54.2 x 28.5 x 42 mm

Selection Notes

Pick the TA5146-CN when the AC500-eCo PLC needs to join an isolated CAN-bus network rather than an RS232 or RS485 link; the TA5141-RS232I and TA5142-RS485I cover those protocols on the same slot and terminal style. The isolation barrier separates the CAN reference from the CPU's own ground, useful when network nodes sit at different ground potentials.

Technical Details

Short Description
ABB TA5146-CN option board: isolated CAN-bus serial adapter, spring terminals, for AC500-eCo PLCs.
Mounting Type
AC500-eCo option slot (plug-in board)
Catalog No
TA5146-CN
Delivery Date (Days)
30 days
Model Number
TA5146-CN
Tariff Code
853710
