ABB 1SAP187100R0203 TA5126-2AO-UIW 2-Channel 12-Bit U/I Output PLC I/O Module

% $-126.50
ABB 1SAP187100R0203 TA5126-2AO-UIW PLC I/O Module - 2x U/I Analog Output
ABB 1SAP187100R0203 TA5126-2AO-UIW PLC I/O Module - 2x U/I Analog Output

ABB 1SAP187100R0203 TA5126-2AO-UIW 2-Channel 12-Bit U/I Output PLC I/O Module

Brand: ABB
Reference No: 1SAP187100R0203
Catalog No: TA5126-2AO-UIW
Series: Accessories
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$126.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

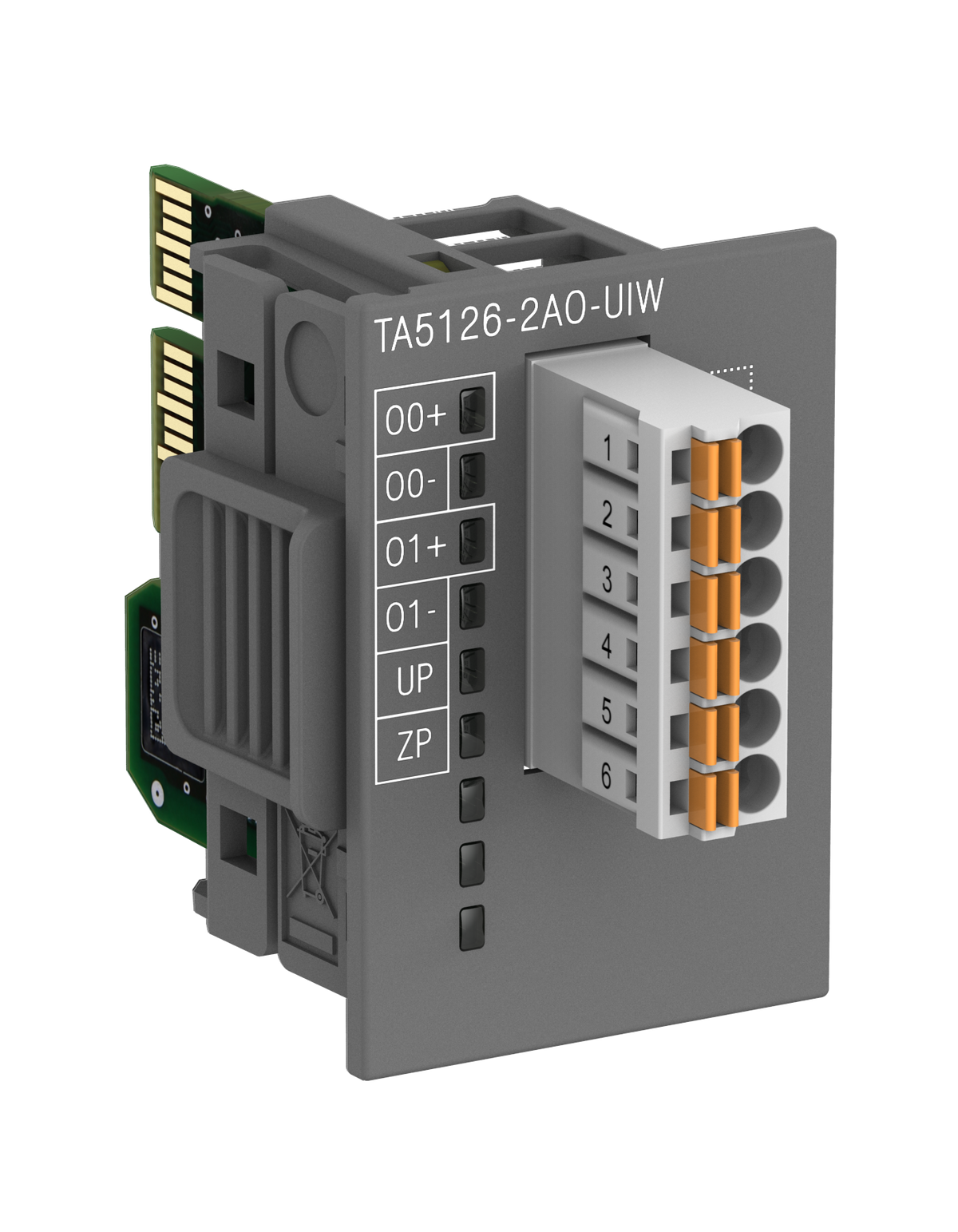

The ABB 1SAP187100R0203 (TA5126-2AO-UIW) is an AC500-eCo analog output option board delivering 2 channels of switchable voltage or current output at 12-bit resolution. It fits the eCo CPU's option slot and arrives with spring terminals pre-installed, letting the controller drive analog actuators or set-point inputs on connected devices without an external I/O module.

Technical Specifications

Order code 1SAP187100R0203
Type code TA5126-2AO-UIW
Brand ABB
Series AC500-eCo
Function Analog output option board, 2 AO: U, I, 12-bit
Output channels 2 x AO (U/I)
Resolution 12-bit
Terminal type Spring (included)
Net weight 0.019 kg
Gross weight 0.035 kg
Length 54.2 mm
Height 42 mm
Width 28.5 mm
EAN 4053546054163

Selection Notes

Two analog outputs covering both voltage and current signal types let this board drive a single actuator in either mode without rewiring the terminal block. Pick an analog input board instead when the task is reading sensors rather than driving outputs, or a combined I/O board when both directions are needed on one card. Spring terminals are already fitted, so no separate terminal block needs to be ordered.

Technical Details

Short Description
AC500-eCo analog output option board, 2x AO U/I, 12-bit, spring terminals included.
Mounting Type
Option board, CPU slot-in
Catalog No
TA5126-2AO-UIW
Delivery Date (Days)
30 days
Model Number
TA5126-2AO-UIW
Tariff Code
853710
