ABB 1SAP187100R0004 TA5122-2AI-TC 2-Channel 16-Bit Thermocouple Input PLC I/O Module

% $-103.50

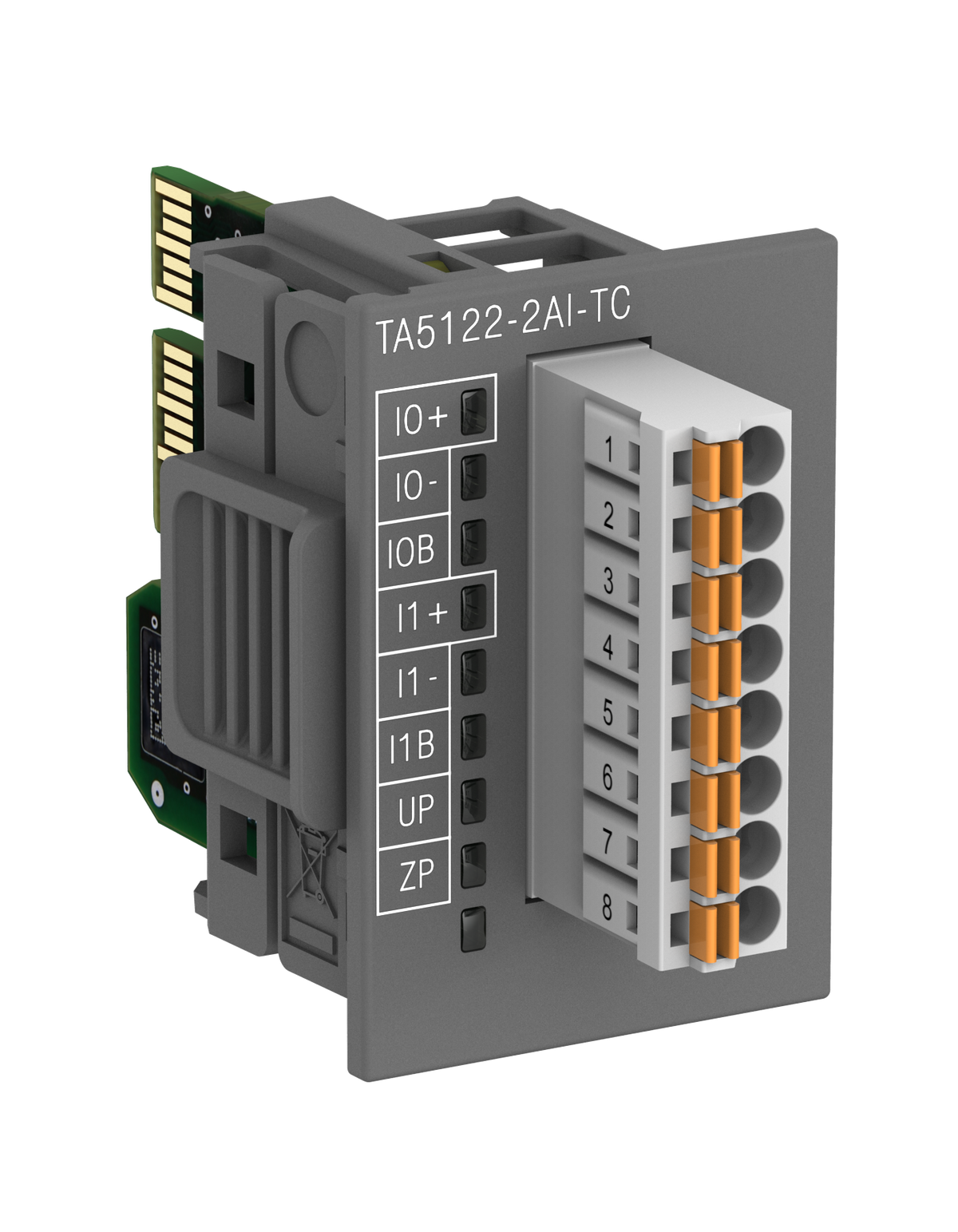

ABB 1SAP187100R0004 TA5122-2AI-TC analog input board - 2 TC 16-bit
ABB 1SAP187100R0004 TA5122-2AI-TC analog input board - 2 TC 16-bit

ABB 1SAP187100R0004 TA5122-2AI-TC 2-Channel 16-Bit Thermocouple Input PLC I/O Module

Brand: ABB
Reference No: 1SAP187100R0004
Catalog No: TA5122-2AI-TC
Series: Accessories
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$103.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB TA5122-2AI-TC (order code 1SAP187100R0004) is an analog input option board for AC500-eCo PLCs. It reads 2 thermocouple channels covering types B, E, J, K, N, R, S and T at 16-bit resolution, with spring terminals included, giving the CPU direct temperature-sensor input without an external signal converter. The board ships with the required spring terminals, so no separate connector part is needed when wiring the eight supported thermocouple types.

Technical Specifications

Order code 1SAP187100R0004
Type code TA5122-2AI-TC
Brand ABB
Series AC500-eCo
EAN 4013614561450
Function 2 AI: Thermocouple B, E, J, K, N, R, S, T. 16-bit. Spring terminals included
Analog Inputs 2
Input Signal Thermocouple (TC)
Resolution 16-bit (analog input)
Number of Analog Configurable I/Os 0
Degree of Protection IP20 (housing)
Net Weight 0.021 kg
Gross Weight 0.035 kg
Dimensions (L x W x H) 54.2 x 28.5 x 42 mm

Selection Notes

Pick the TA5122-2AI-TC when an application needs direct thermocouple input across the B, E, J, K, N, R, S and T types at 16-bit resolution. For RTD sensors, the TA5123-2AI-RTD board uses the same slot and spring terminals, and the TA5120-2AI-UI covers standard U/I analog input instead. The 16-bit resolution gives finer temperature steps than the 12-bit TA5120-2AI-UI board.

Technical Details

Short Description
ABB TA5122-2AI-TC thermocouple input board: 2 TC channels (B,E,J,K,N,R,S,T), 16-bit, for AC500-eCo PLCs.
Mounting Type
AC500-eCo option slot (plug-in board)
Protection Type
IP20 (housing)
Catalog No
TA5122-2AI-TC
Delivery Date (Days)
30 days
Model Number
TA5122-2AI-TC
Tariff Code
853710
