ABB 1SAP187000R0202 TA5105-4DOTW 4 DO 24V DC 0.5A Wide-Temperature PLC I/O Module

% $-46.00
ABB 1SAP187000R0202 TA5105-4DOTW digital output board - 4 DO 24V DC 0.5A wide-temp
ABB 1SAP187000R0202 TA5105-4DOTW digital output board - 4 DO 24V DC 0.5A wide-temp

ABB 1SAP187000R0202 TA5105-4DOTW 4 DO 24V DC 0.5A Wide-Temperature PLC I/O Module

Brand: ABB
Reference No: 1SAP187000R0202
Catalog No: TA5105-4DOTW
Series: Accessories
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$46.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

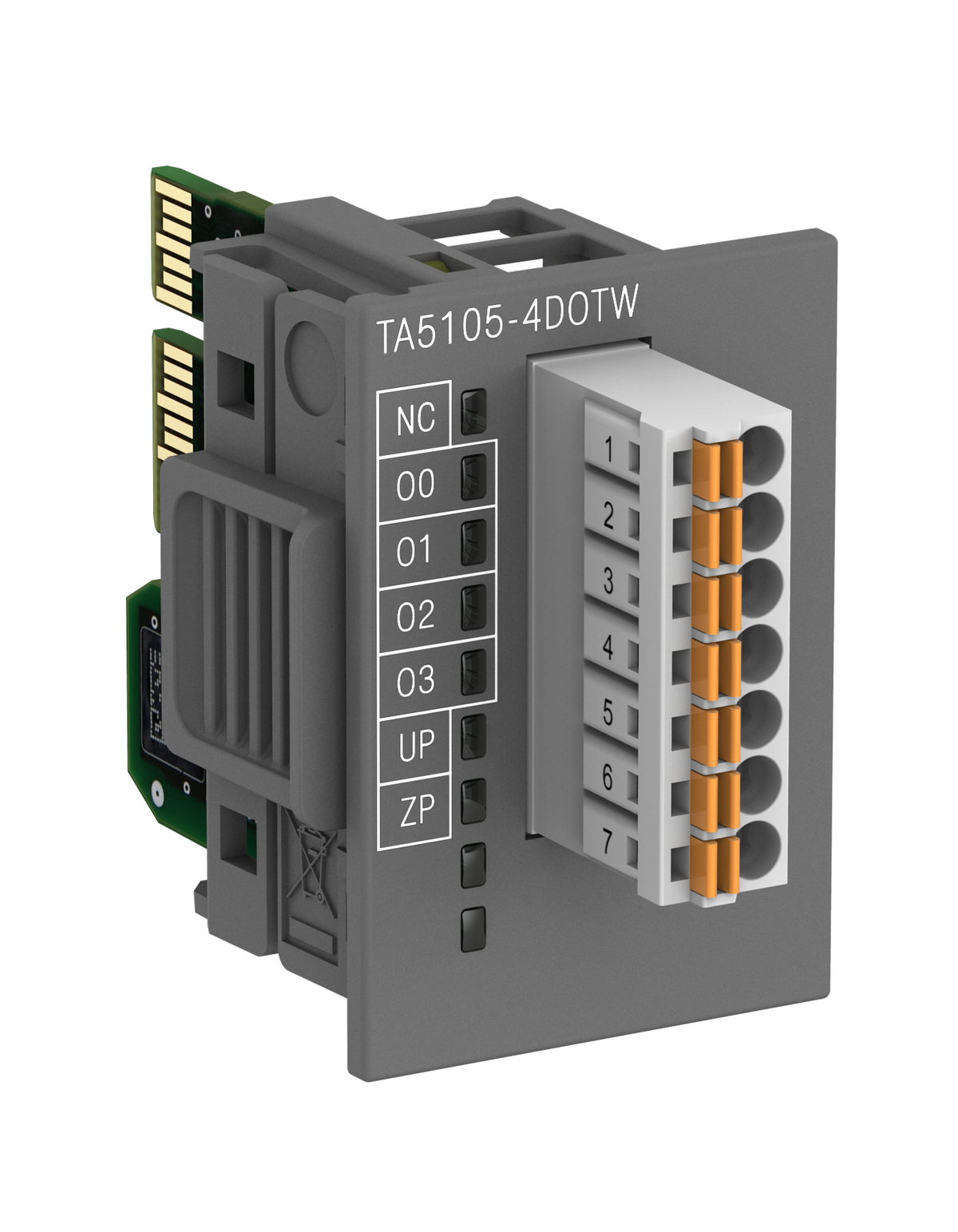

The ABB TA5105-4DOTW (order code 1SAP187000R0202) is a digital output option board for AC500-eCo PLCs, built for wide-temperature operation. It adds 4 digital output channels rated 24 V DC, 0.5 A on spring terminals, for driving relays, indicators or small loads directly from the CPU. Each output's 0.5 A rating sets the practical ceiling for connected relay coils or lamps without an external interposing relay.

Technical Specifications

Order code 1SAP187000R0202
Type code TA5105-4DOTW
Brand ABB
Series AC500-eCo
EAN 4053546054125
Function 4 DO: 24VDC 0.5A. Spring terminals included
Digital Outputs 4
Output Rating 24 V DC, 0.5 A
Net Weight 0.02 kg
Gross Weight 0.034 kg
Dimensions (L x W x H) 54.2 x 28.5 x 42 mm

Selection Notes

Pick the TA5105-4DOTW when a wide-temperature installation needs 4 extra 24 V DC, 0.5 A digital outputs on an AC500-eCo CPU to drive relays or indicators. For digital inputs instead, the TA5101-4DIW shares the same slot and spring-terminal style, and the TA5110-2DI2DOW splits the slot between 2 inputs and 2 outputs. Size any connected relay coil current within the 0.5 A per-channel limit.

Technical Details

Short Description
ABB TA5105-4DOTW digital output board: 4 DO, 24 V DC 0.5A, wide-temperature, for AC500-eCo PLCs.
Mounting Type
AC500-eCo option slot (plug-in board)
Catalog No
TA5105-4DOTW
Delivery Date (Days)
30 days
Model Number
TA5105-4DOTW
Tariff Code
853710
