ABB 1SAP180300R0001 TA521 CR2450 Battery Adapter Cable for AC500 CPU PLC Accessory

% $-37.38
ABB 1SAP180300R0001 TA521 PLC Accessory - CR2450 Battery Adapter Cable
ABB 1SAP180300R0001 TA521 PLC Accessory - CR2450 Battery Adapter Cable

ABB 1SAP180300R0001 TA521 CR2450 Battery Adapter Cable for AC500 CPU PLC Accessory

Brand: ABB
Reference No: 1SAP180300R0001
Catalog No: TA521
Series: Accessories
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$37.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

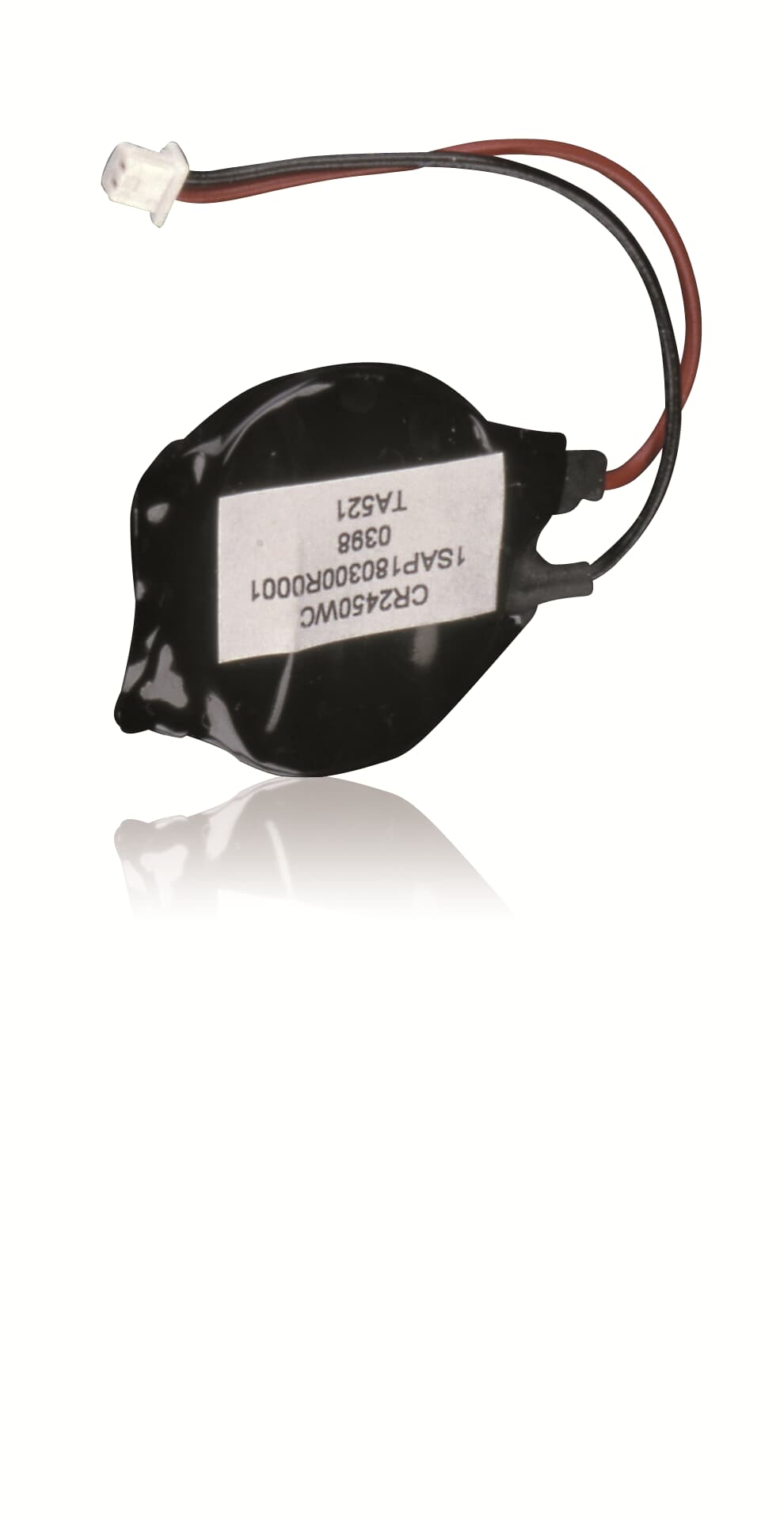

The ABB 1SAP180300R0001 (TA521) is an adapter cable with an encapsulated CR2450 lithium button cell that backs up the remanent memory and real-time clock of AC500 CPUs. It fits CPU types PM57x, PM58x, PM59x (excluding PM595) and the V3 PM56xx family, connecting the battery to the CPU without needing a bare cell soldered or clipped in place.

Technical Specifications

Order code 1SAP180300R0001
Type code TA521
Brand ABB
Series AC500
Function Lithium button cell adapter cable for PM5xx and PM56xx CPUs
Compatible CPUs PM57x, PM58x, PM59x (not PM595), PM56xx
Battery type CR2450 lithium primary button cell, encapsulated
Degree of protection IP20
Operating temperature 0 ... +60 °C
Storage temperature -20 ... +60 °C
Net weight 0.009 kg
Gross weight 0.014 kg
Length 8 mm
Height 170 mm
Width 100 mm
EAN 4016779648950

Selection Notes

This cable supplies backup power to the CPU's real-time clock and retentive memory while the controller is unpowered, so the clock and any retained variables survive a power loss. It is only compatible with the listed PM5xx/PM56xx CPU families, and PM595 is explicitly excluded, so confirm the exact CPU model before ordering. Replace the cell when the CPU reports a low-battery diagnostic rather than waiting for a full retentive-data loss.

Technical Details

Short Description
CR2450 lithium battery adapter cable for AC500 PM5xx/PM56xx CPU backup power.
Mounting Type
CPU battery connector (adapter cable)
Protection Type
IP20
Catalog No
TA521
Delivery Date (Days)
30 days
Model Number
TA521
Tariff Code
853890
