ABB 1SAP176000R0080 CM5640-2ETH Dual Ethernet Modbus TCP Communication Module PLC Communication Module

% $-540.50

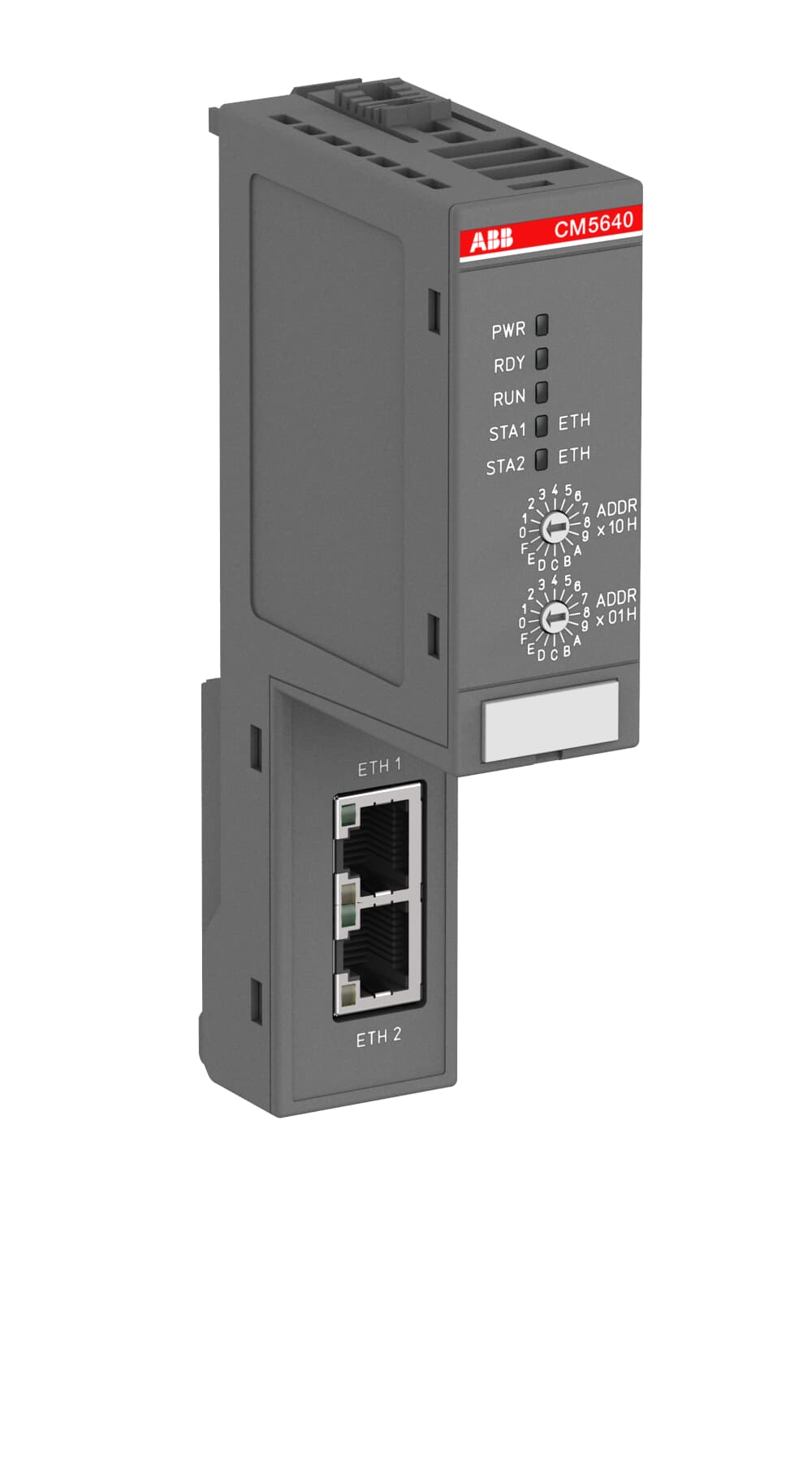

ABB 1SAP176000R0080 CM5640-2ETH PLC Communication Module - Dual Ethernet
ABB 1SAP176000R0080 CM5640-2ETH PLC Communication Module - Dual Ethernet

ABB 1SAP176000R0080 CM5640-2ETH Dual Ethernet Modbus TCP Communication Module PLC Communication Module

Brand: ABB
Reference No: 1SAP176000R0080
Catalog No: CM5640-2ETH
Series: Communication modules
Tariff Code (HS): 851762
Communication: TCP/IP, UDP, Modbus TCP, 2x Ethernet
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$540.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP176000R0080 (CM5640-2ETH) is an AC500 communication module with 2 Ethernet interfaces supporting TCP/IP, UDP and Modbus TCP at up to 100 Mbit/s. It plugs into the CPU's expansion bus and adds Ethernet-based connectivity for SCADA or PLC-to-PLC links without routing traffic through the CPU's own network port entirely.

Technical Specifications

Order code 1SAP176000R0080
Type code CM5640-2ETH
Brand ABB
Series AC500 Communication Modules
Function Communication module, protocols TCP/IP, UDP, Modbus TCP, 2 Ethernet interfaces, no switch
Communication protocols TCP/IP, UDP, Modbus TCP
Ethernet ports 2 (no internal switch)
Data transmission rate 100 Mbit/s
Net weight 0.101 kg
Gross weight 0.134 kg
Length 62 mm
Height 135 mm
Width 28 mm
EAN 4053546050936

Selection Notes

Two Ethernet ports without an internal switch means each port is a separate network interface rather than a daisy-chain pair, so a device plugged into one port does not automatically reach the other. Modbus TCP support covers most SCADA integrations directly; choose the RS232/RS485 communication module instead when the upstream system only speaks serial Modbus RTU.

Technical Details

Short Description
AC500 communication module, 2x Ethernet, TCP/IP, UDP and Modbus TCP, 100 Mbit/s.
Mounting Type
DIN-rail, CPU expansion bus
Catalog No
CM5640-2ETH
Delivery Date (Days)
30 days
Model Number
CM5640-2ETH
Tariff Code
851762
