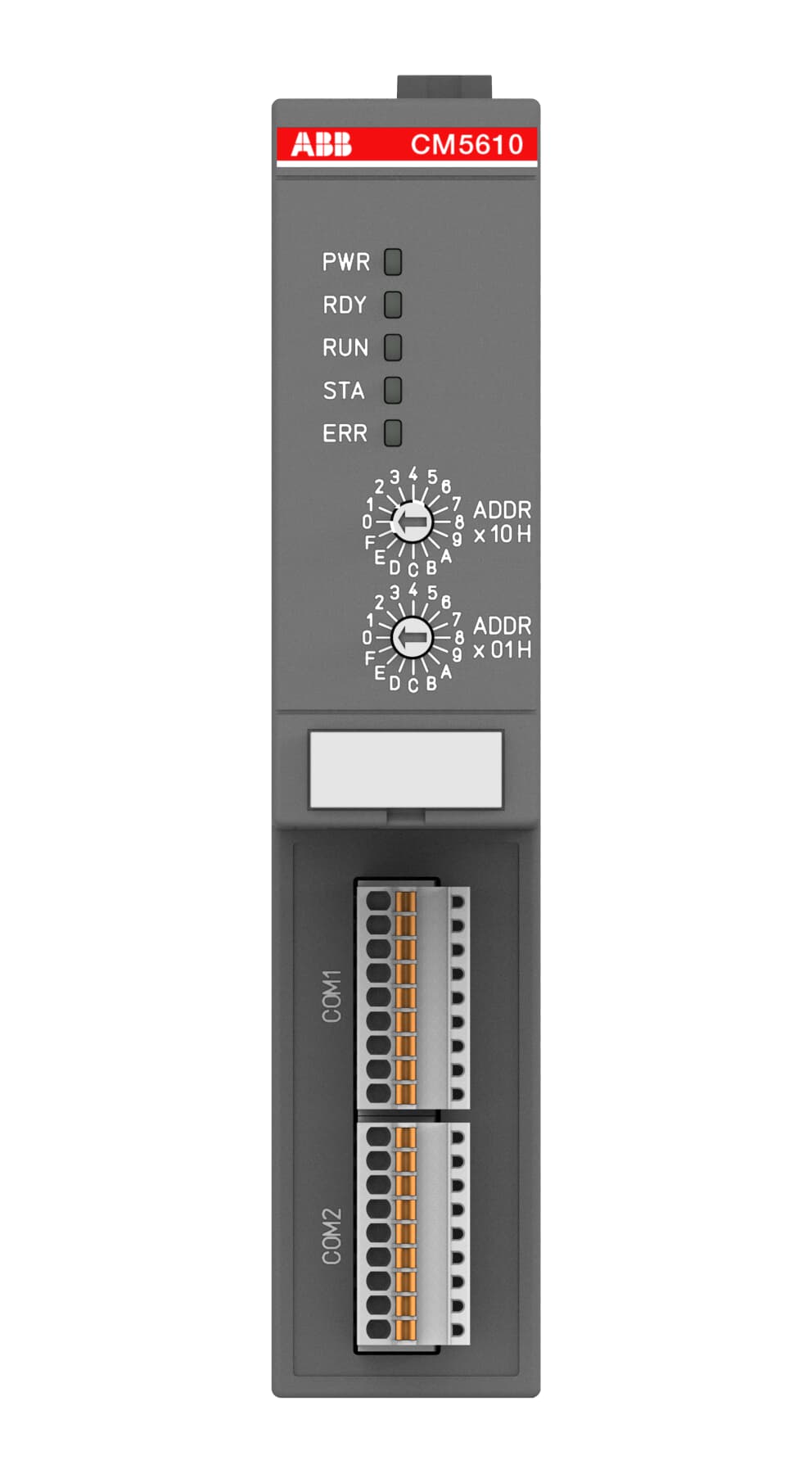

ABB 1SAP176000R0020 CM5610-2RS Dual RS232/RS485 Serial Communication Module PLC Communication Module

% $-434.13
ABB 1SAP176000R0020 CM5610-2RS PLC Communication Module - Dual Serial
ABB 1SAP176000R0020 CM5610-2RS PLC Communication Module - Dual Serial

ABB 1SAP176000R0020 CM5610-2RS Dual RS232/RS485 Serial Communication Module PLC Communication Module

Brand: ABB
Reference No: 1SAP176000R0020
Catalog No: CM5610-2RS
Series: Communication modules
Tariff Code (HS): 851762
Communication: RS232/RS485 (selectable, 2 ports)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$434.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP176000R0020 (CM5610-2RS) is an AC500 communication module with 2 serial interfaces that can each be configured as RS232 or RS485, running a selectable protocol at up to 187.5 kbit/s. It plugs into the AC500 CPU's expansion bus to add serial connectivity for Modbus or custom protocol links beyond the CPU's onboard ports.

Technical Specifications

Order code 1SAP176000R0020
Type code CM5610-2RS
Brand ABB
Series AC500 Communication Modules
Function Communication module, selectable protocol, 2 serial interfaces RS232/RS485
Communication interface Serial
Serial ports 2 x RS-232/485 (selectable)
Data transmission rate 187.5 kbit/s
Net weight 0.09 kg
Gross weight 0.132 kg
Length 62 mm
Height 135 mm
Width 28 mm
EAN 4053546050912

Selection Notes

Two independently configurable RS232/RS485 ports let one module serve either a point-to-point link and a multi-drop bus, or two multi-drop buses, without needing separate single-port modules. The 187.5 kbit/s ceiling covers standard Modbus RTU baud rates comfortably; pick an Ethernet-based communication module instead when the link needs TCP/IP rather than serial.

Technical Details

Short Description
AC500 communication module, 2x selectable RS232/RS485 serial interfaces.
Mounting Type
DIN-rail, CPU expansion bus
Catalog No
CM5610-2RS
Delivery Date (Days)
30 days
Model Number
CM5610-2RS
Tariff Code
851762
