ABB 1SAP173200R0001 CM592-DP PROFIBUS Master RS-485 PLC Communication Module

% $-540.50

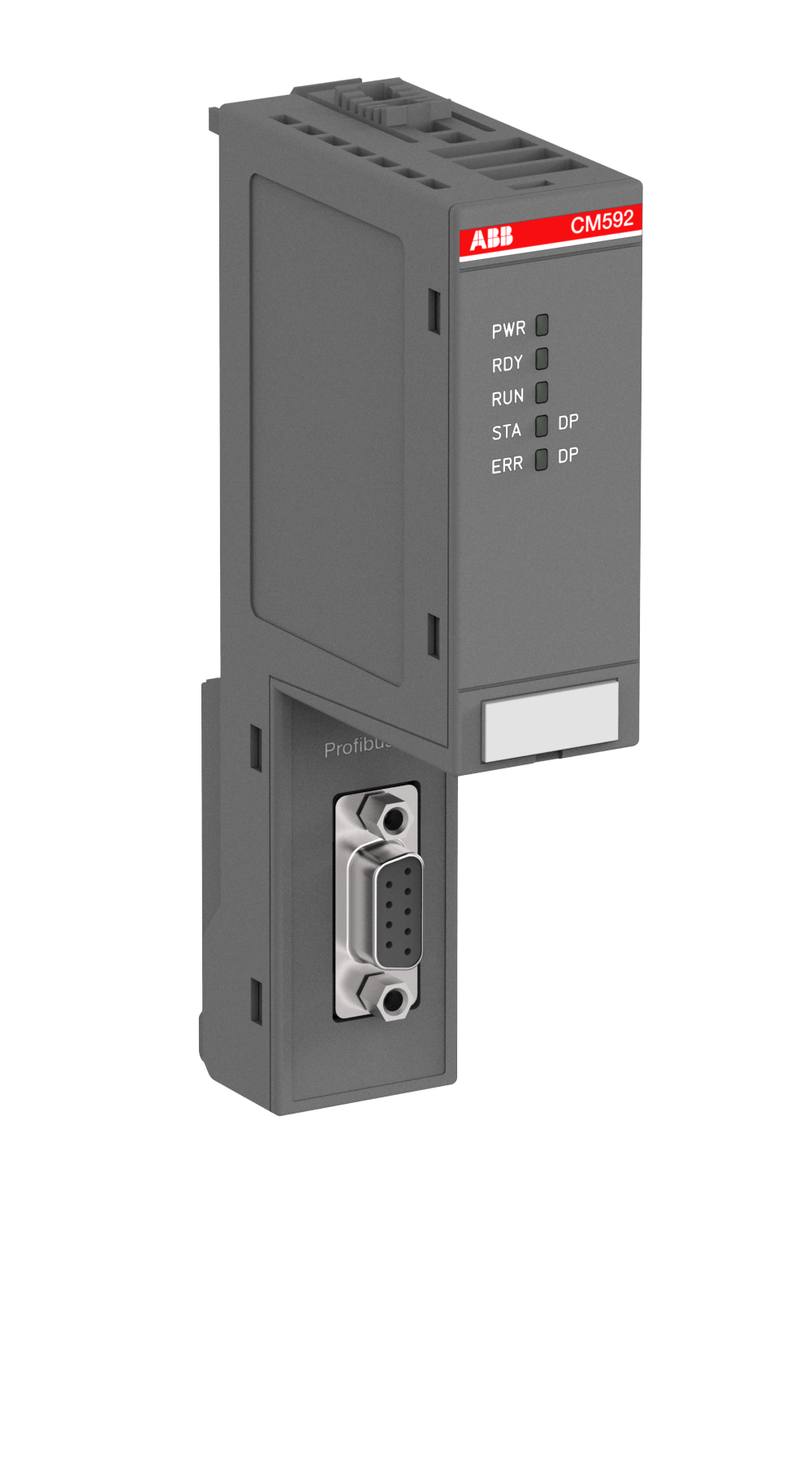

ABB 1SAP173200R0001 CM592-DP PROFIBUS master communication module
ABB 1SAP173200R0001 CM592-DP PROFIBUS master communication module

ABB 1SAP173200R0001 CM592-DP PROFIBUS Master RS-485 PLC Communication Module

Brand: ABB
Reference No: 1SAP173200R0001
Catalog No: CM592-DP
Series: Communication modules
Tariff Code (HS): 851762
Communication: PROFIBUS master, RS-485, up to 12000 kbit/s
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$540.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP173200R0001 (CM592-DP) is an AC500 PLC communication module that acts as a PROFIBUS master over a single RS-485 interface, with data rates up to 12,000 kbit/s. It fits into a communication module slot on an AC500 terminal base and carries IP20 protection. Net weight is 0.092 kg.

Technical Specifications

Order code 1SAP173200R0001
Type code CM592-DP
Brand ABB
Series AC500 Communication modules
EAN 4013614506239
Function PROFIBUS master
Communication protocol PROFIBUS, Master
Communication interface Serial
Hardware interfaces 1x RS-485
Data transmission rate 12000 kbit/s
Degree of protection IP20
Dimensions (L x H x W) 62 x 135 x 28 mm
Net weight 0.092 kg
Gross weight 0.125 kg

Selection Notes

CM592-DP adds PROFIBUS master capability to an AC500 CPU through a terminal base communication slot, so it suits applications where the AC500 needs to poll PROFIBUS slave devices rather than act as one. The single RS-485 port runs at up to 12 Mbit/s, which covers typical PROFIBUS DP segment lengths without extra repeaters. Choose this module over the CANopen counterpart when the plant's field devices are already standardized on PROFIBUS rather than CAN.

Technical Details

Short Description
AC500 PROFIBUS master communication module, 1 RS-485 interface, 12000 kbit/s, IP20.
Mounting Type
AC500 terminal base communication module slot
Protection Type
IP20
Catalog No
CM592-DP
Delivery Date (Days)
30 days
Model Number
CM592-DP
Tariff Code
851762
