ABB 1SAP131000R0378 PM5630-2ETH AC500 CPU 8 MB 2x Ethernet Programmable Logic Controller

% $-825.13

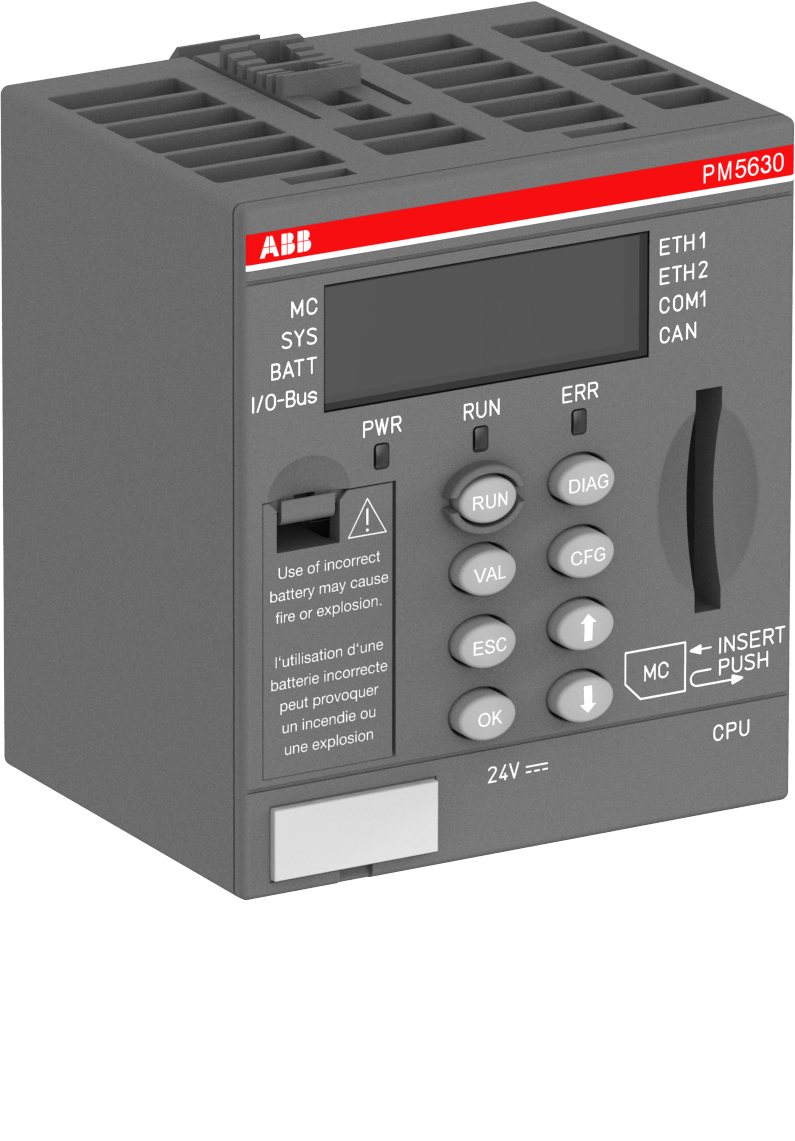

ABB 1SAP131000R0378 PM5630-2ETH AC500 CPU with 8 MB memory and display
ABB 1SAP131000R0378 PM5630-2ETH AC500 CPU with 8 MB memory and display

ABB 1SAP131000R0378 PM5630-2ETH AC500 CPU 8 MB 2x Ethernet Programmable Logic Controller

Brand: ABB
Reference No: 1SAP131000R0378
Catalog No: PM5630-2ETH
Series: CPUs
Tariff Code (HS): 853710
Communication: 2x Ethernet, RS-232/485, CAN
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$825.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP131000R0378 (PM5630-2ETH) is an AC500 processor module with 8 MB of user memory, two Ethernet ports, one RS232/485 serial port, a CAN interface, and an onboard display. It runs from a 24 V DC supply (20.4-28.8 V DC) and mounts on a compatible AC500 terminal base. Its controller processing time is listed at 0.00002 ms per instruction.

Technical Specifications

Order code 1SAP131000R0378
Type code PM5630-2ETH
Brand ABB
Series AC500 CPUs
EAN 4013614570902
Function Memory 8 MB, 2 Ethernet, RS232/485, CAN, display
Memory size 39256 kB
Memory type (user data) RAM
Controller processing time 0.00002 ms
Number of digital configurable I/Os 0
Rated voltage (Ur) 24 V DC
Supply voltage 20.4-28.8 V DC
Dimensions (L x H x W) 62 x 76 x 67.5 mm
Net weight 0.134 kg
Gross weight 0.157 kg

Selection Notes

As the 8 MB entry point of the PM56xx CPU line, PM5630-2ETH suits smaller AC500 programs where two Ethernet ports plus RS232/485 and CAN already cover the needed HMI, I/O and fieldbus links. Its onboard display lets commissioning staff read status and diagnostics without attaching a separate HMI panel. Step up to the 80 MB or 160 MB variants in the same housing once the application logic or data logging outgrows 8 MB.

Technical Details

Short Description
AC500 CPU, 8 MB memory, 2 Ethernet, RS232/485, CAN, display, 24 V DC.
Mounting Type
AC500 terminal base (CPU slot)
Catalog No
PM5630-2ETH
Delivery Date (Days)
30 days
Model Number
PM5630-2ETH
Tariff Code
853710
