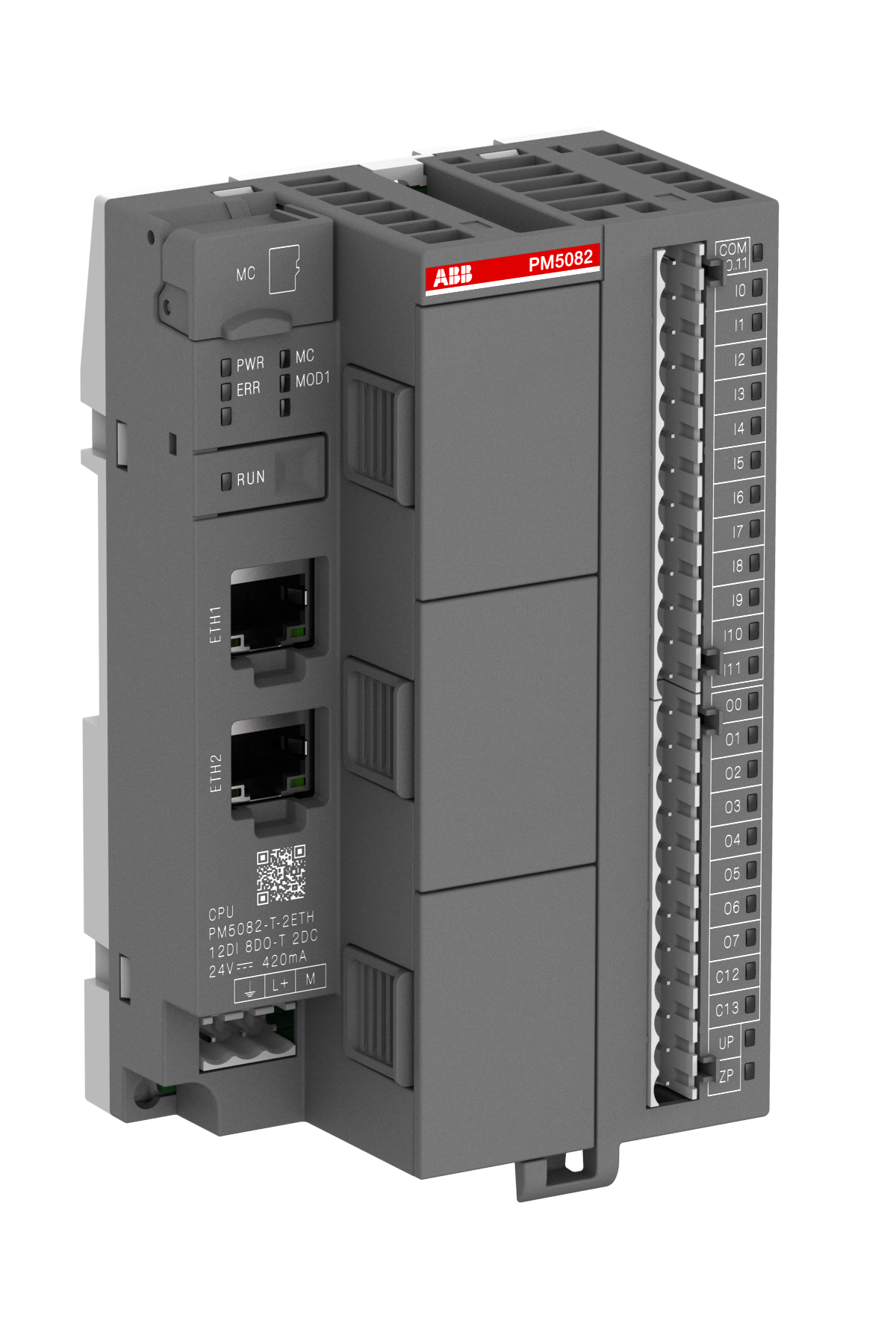

ABB 1SAP124600R0173 PM5082-T-2ETH 18 MB 12 DI 8 DO 2x Ethernet Programmable Logic Controller

% $-529.00
ABB 1SAP124600R0173 PM5082-T-2ETH programmable logic controller - 18MB dual Ethernet
ABB 1SAP124600R0173 PM5082-T-2ETH programmable logic controller - 18MB dual Ethernet

ABB 1SAP124600R0173 PM5082-T-2ETH 18 MB 12 DI 8 DO 2x Ethernet Programmable Logic Controller

Brand: ABB
Reference No: 1SAP124600R0173
Catalog No: PM5082-T-2ETH
Series: CPUs
Tariff Code (HS): 853710
Communication: 2x Ethernet
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$529.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB PM5082-T-2ETH (order code 1SAP124600R0173) is an AC500-eCo processor module with 18 MB memory, 12 digital inputs, 8 transistor outputs at 0.5 A, 2 configurable digital I/O, and two Ethernet interfaces, powered from 24 V DC. The larger memory over the PM5072-T-2ETH suits bigger control programs while the I/O count, outputs, and three option slots stay the same.

Technical Specifications

Catalog No PM5082-T-2ETH
SKU 1SAP124600R0173
Brand ABB
Series AC500-eCo
EAN 4013614570988
Function Processor module, memory 18MB, 12 DI 24 VDC, 8 DO 24 VDC 0.5A, 2 DC 24 VDC, 2 Ethernet interfaces, 3 option slots
Memory Size 18,432 kB (18 MB)
Memory Type (User Data) RAM
Controller Processing Time 0.00001 ms
Number of Digital Inputs 12
Number of Digital Outputs 8 (Transistor, 0.5A, 24 V DC)
Number of Digital Configurable I/Os 2
Input Voltage Type DC
Rated Voltage (Ur) 24 V DC
Supply Voltage 20.4 - 28.8 V DC
Net Weight 0.262 kg
Gross Weight 0.302 kg
Net Dimensions (L x H x W) 74 x 135 x 82 mm

Selection Notes

The 18 MB memory is roughly double the PM5072-T-2ETH's capacity while every I/O count, the dual Ethernet ports, and the three option slots stay the same, making this the choice when the control program outgrows the PM5072-T-2ETH rather than when more I/O or ports are needed.

Technical Details

Short Description
ABB PM5082-T-2ETH AC500-eCo PLC CPU, 18MB, 12 DI, 8 DO-Transistor, 2 Ethernet ports.
Catalog No
PM5082-T-2ETH
Delivery Date (Days)
30 days
Model Number
PM5082-T-2ETH
Tariff Code
853710
