ABB 1SAP124500R0173 PM5072-T-2ETH 9 MB 12 DI 8 DO 2x Ethernet Programmable Logic Controller

% $-402.50

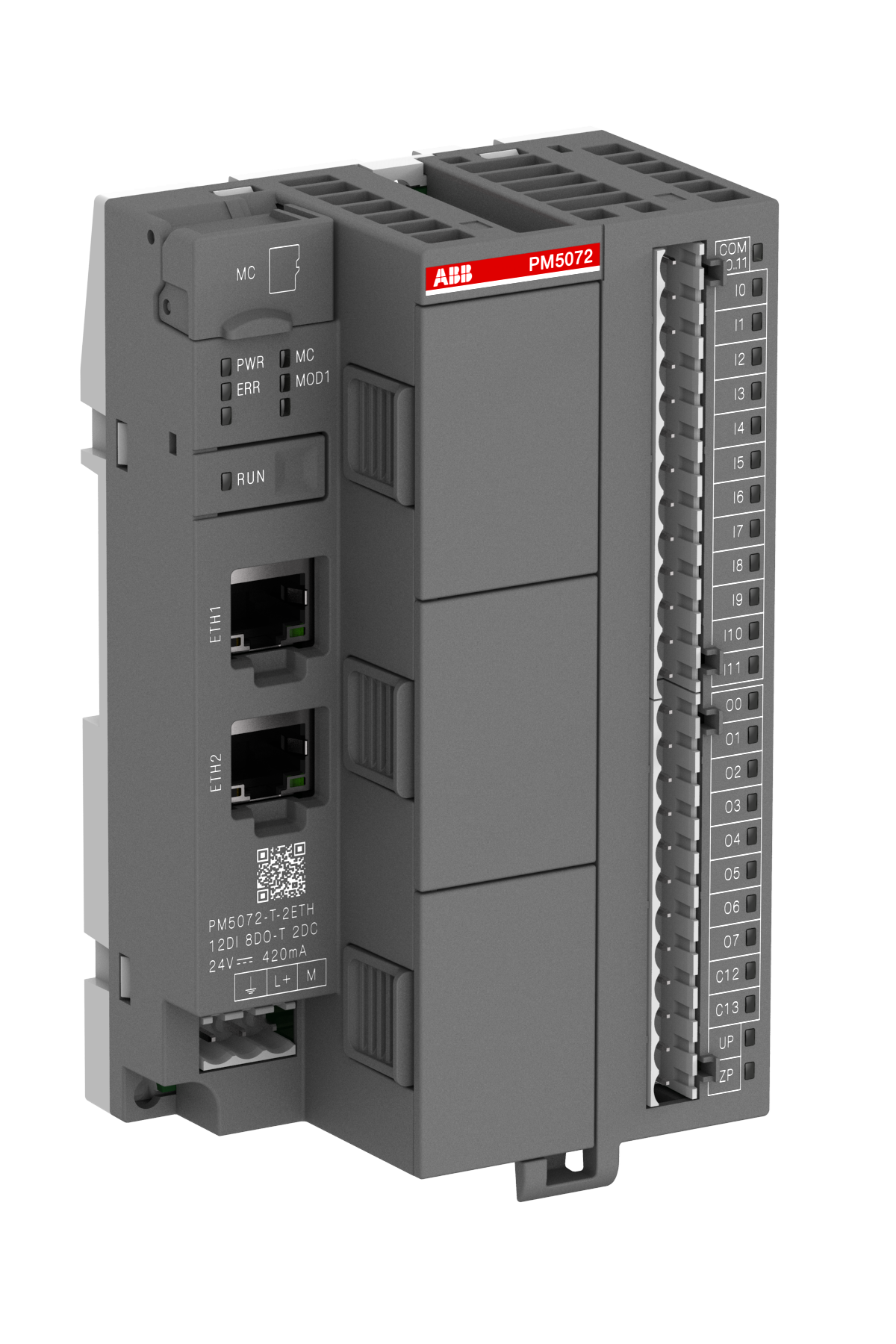

ABB 1SAP124500R0173 PM5072-T-2ETH programmable logic controller - dual Ethernet
ABB 1SAP124500R0173 PM5072-T-2ETH programmable logic controller - dual Ethernet

ABB 1SAP124500R0173 PM5072-T-2ETH 9 MB 12 DI 8 DO 2x Ethernet Programmable Logic Controller

Brand: ABB
Reference No: 1SAP124500R0173
Catalog No: PM5072-T-2ETH
Series: CPUs
Tariff Code (HS): 853710
Communication: 2x Ethernet
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$402.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB PM5072-T-2ETH (order code 1SAP124500R0173) is an AC500-eCo processor module with 12 digital inputs, 8 transistor outputs at 0.5 A, 2 configurable digital I/O, and two Ethernet interfaces, powered from 24 V DC. The second Ethernet port supports a separate network segment for device-level communication alongside the controller's main link, with three option slots for expansion.

Technical Specifications

Catalog No PM5072-T-2ETH
SKU 1SAP124500R0173
Brand ABB
Series AC500-eCo
EAN 4013614570896
Function Processor module, memory 8MB, 12 DI 24 VDC, 8 DO 24 VDC 0.5A, 2 DC 24 VDC, 2 Ethernet interfaces, 3 option slots
Memory Size 9,216 kB (9 MB)
Memory Type (User Data) RAM
Controller Processing Time 0.00002 ms
Number of Digital Inputs 12
Number of Digital Outputs 8 (Transistor, 0.5A, 24 V DC)
Number of Digital Configurable I/Os 2
Input Voltage Type DC
Rated Voltage (Ur) 24 V DC
Supply Voltage 20.4 - 28.8 V DC
Net Weight 0.262 kg
Gross Weight 0.302 kg
Net Dimensions (L x H x W) 74 x 135 x 82 mm

Selection Notes

A second Ethernet interface lets this CPU separate a device-level network from the main controller link, something a single-Ethernet CPU in the same I/O class cannot do. The I/O count, output type, and three option slots match the single-Ethernet PM5052-T-ETH, so the step up is specifically for dual-network applications.

Technical Details

Short Description
ABB PM5072-T-2ETH AC500-eCo PLC CPU, 12 DI, 8 DO-Transistor, 2 Ethernet ports, 3 option slots.
Catalog No
PM5072-T-2ETH
Delivery Date (Days)
30 days
Model Number
PM5072-T-2ETH
Tariff Code
853710
