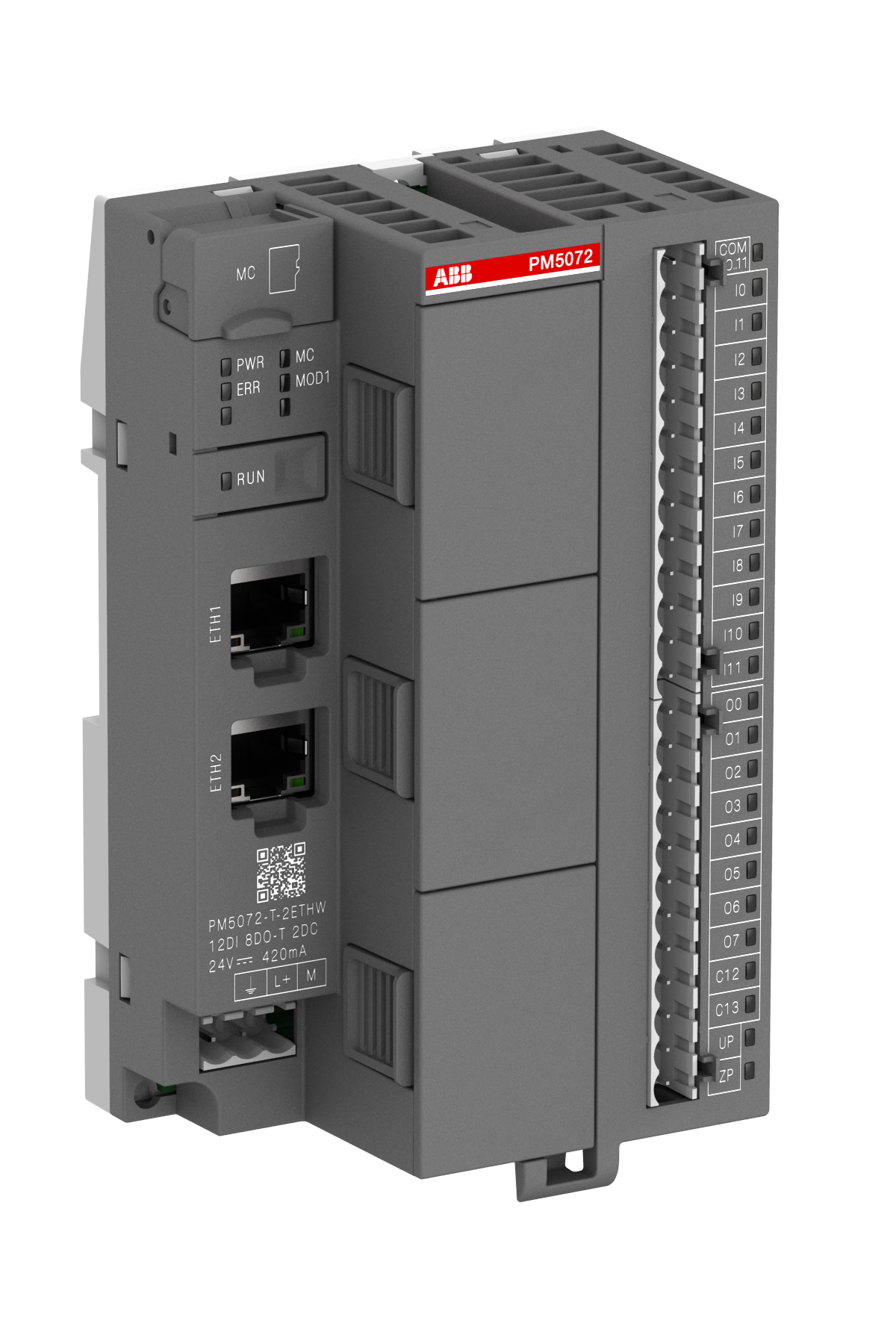

ABB 1SAP124400R0173 PM5072-T-2ETHW 8MB 12DI 8DO 2 Ethernet Wide-Temp Programmable Logic Controller

% $-529.00
ABB 1SAP124400R0173 PM5072-T-2ETHW AC500-eCo CPU - 8MB 2 Ethernet wide-temp
ABB 1SAP124400R0173 PM5072-T-2ETHW AC500-eCo CPU - 8MB 2 Ethernet wide-temp

ABB 1SAP124400R0173 PM5072-T-2ETHW 8MB 12DI 8DO 2 Ethernet Wide-Temp Programmable Logic Controller

Brand: ABB
Reference No: 1SAP124400R0173
Catalog No: PM5072-T-2ETHW
Series: CPUs
Tariff Code (HS): 853710
Communication: 2 Ethernet interfaces
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$529.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB PM5072-T-2ETHW (order code 1SAP124400R0173) is an AC500-eCo processor module built for wide-temperature operation. It runs 8 MB of memory with 12 digital inputs, 8 digital outputs and 2 configurable digital I/Os onboard, plus 2 Ethernet interfaces and 3 option slots for expansion boards, powered from 24 V DC.

Technical Specifications

Order code 1SAP124400R0173
Type code PM5072-T-2ETHW
Brand ABB
Series AC500-eCo (CPUs)
EAN 4013614570889
Function Memory 8MB. 12 DI 24VDC. 8 DO 24VDC 0.5A. 2 DC 24VDC. 2 Ethernet interfaces. 3 option slots
Memory Size 9216 kB
Memory Type (User Data) RAM
Controller Processing Time 0.00002 ms
Digital Inputs 12
Digital Outputs 8
Digital Configurable I/Os 2
Input Voltage Type DC
Rated Voltage (Ur) 24 V DC
Supply Voltage 20.4 - 28.8 V DC
Net Weight 0.265 kg
Gross Weight 0.307 kg
Dimensions (L x W x H) 74 x 82 x 135 mm

Selection Notes

The PM5072-T-2ETHW is the wide-temperature variant of the AC500-eCo PM5072 CPU, with 8 MB memory, 12 DI, 8 DO, 2 configurable I/Os and 2 Ethernet ports plus a broader rated operating range for enclosures exposed to heat or cold. Its 3 option slots accept the TA51xx analog, digital, serial or terminal boards for application-specific I/O or communication expansion. Confirm 24 V DC supply availability (20.4-28.8 V DC) before sizing the power supply.

Technical Details

Short Description
ABB PM5072-T-2ETHW AC500-eCo CPU: 8 MB, 12 DI, 8 DO, 2 configurable I/Os, 2 Ethernet, wide-temp.
Catalog No
PM5072-T-2ETHW
Delivery Date (Days)
30 days
Model Number
PM5072-T-2ETHW
Tariff Code
853710
