ABB 1SAP124100R0172 PM5052-R-ETH 7 MB 12 DI 6 DO-Relay Ethernet Programmable Logic Controller

% $-276.00

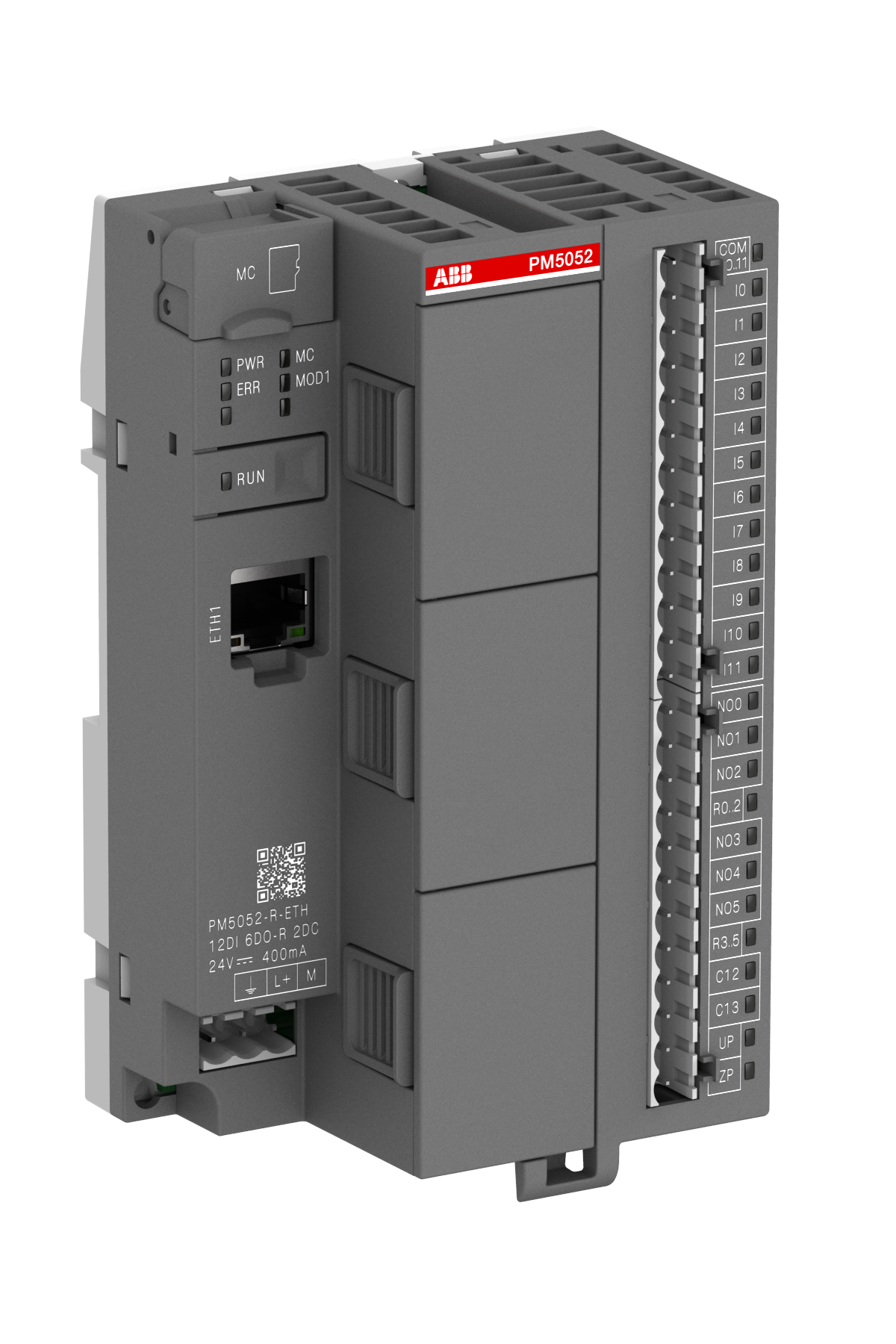

ABB 1SAP124100R0172 PM5052-R-ETH programmable logic controller - 12 DI 6 DO-Relay
ABB 1SAP124100R0172 PM5052-R-ETH programmable logic controller - 12 DI 6 DO-Relay

ABB 1SAP124100R0172 PM5052-R-ETH 7 MB 12 DI 6 DO-Relay Ethernet Programmable Logic Controller

Brand: ABB
Reference No: 1SAP124100R0172
Catalog No: PM5052-R-ETH
Series: CPUs
Tariff Code (HS): 853710
Communication: Ethernet
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$276.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB PM5052-R-ETH (order code 1SAP124100R0172) is an AC500-eCo processor module with 12 digital inputs, 6 relay outputs, and 2 configurable digital I/O, running from 24 V DC. It carries Ethernet and three option slots, one more than the PM5032-R-ETH, for larger I/O expansion builds that still need relay outputs.

Technical Specifications

Catalog No PM5052-R-ETH
SKU 1SAP124100R0172
Brand ABB
Series AC500-eCo
EAN 4013614570865
Function Processor module, memory 4MB, 12 DI 24 VDC, 6 DO-Relay, 2 DC 24 VDC, Ethernet interface, 3 option slots
Memory Size 7,168 kB (7 MB)
Memory Type (User Data) RAM
Controller Processing Time 0.00002 ms
Number of Digital Inputs 12
Number of Digital Outputs 6 (Relay)
Number of Digital Configurable I/Os 2
Input Voltage Type DC
Rated Voltage (Ur) 24 V DC
Supply Voltage 20.4 - 28.8 V DC
Net Weight 0.271 kg
Gross Weight 0.311 kg
Net Dimensions (L x H x W) 74 x 135 x 82 mm

Selection Notes

A third option slot over the PM5032-R-ETH gives this CPU room for one more expansion board while keeping the same 12 DI, 6 relay DO count. Pick the relay-output -R variant over a transistor-output equivalent when outputs need to switch loads directly rather than at high cycle rates.

Technical Details

Short Description
ABB PM5052-R-ETH AC500-eCo PLC CPU, 12 DI, 6 DO-Relay, 2 configurable I/O, Ethernet, 3 option slots.
Catalog No
PM5052-R-ETH
Delivery Date (Days)
30 days
Model Number
PM5052-R-ETH
Tariff Code
853710
