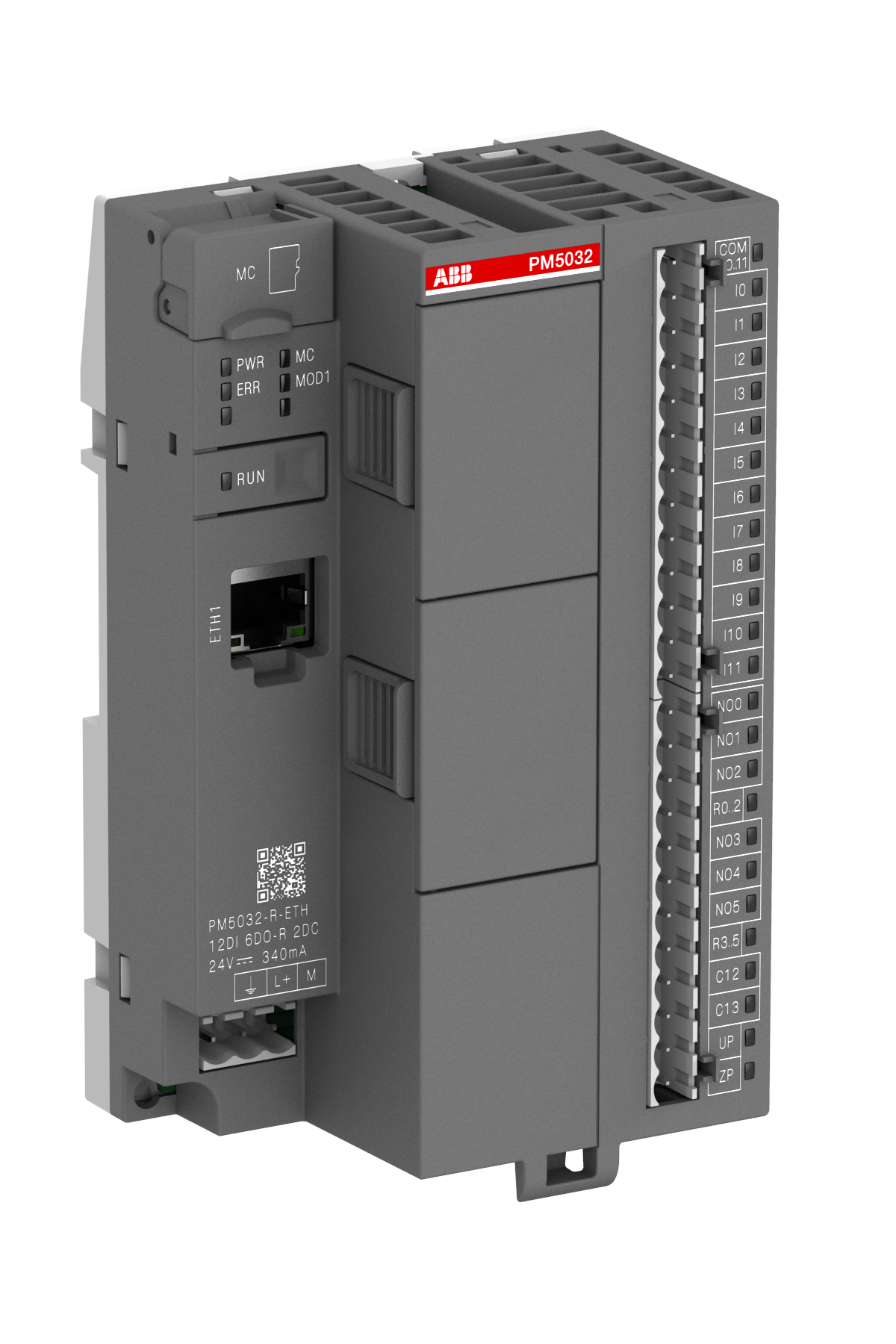

ABB 1SAP123500R0172 PM5032-R-ETH programmable logic controller - 12 DI 6 DO-Relay

ABB 1SAP123500R0172 PM5032-R-ETH 5 MB 12 DI 6 DO-Relay Ethernet Programmable Logic Controller

Name: ABB 1SAP123500R0172 PM5032-R-ETH 5 MB 12 DI 6 DO-Relay Ethernet Programmable Logic Controller
Brand: ABB
SKU: 1SAP123500R0172
Price: 209.88 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: ABB

Reference No: 1SAP123500R0172

Catalog No: PM5032-R-ETH

Series: CPUs

Tariff Code (HS): 853710

Communication: Ethernet

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$209.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The ABB PM5032-R-ETH (order code 1SAP123500R0172) is an AC500-eCo processor module with 12 digital inputs, 6 relay outputs, and 2 configurable digital I/O, powered from 24 V DC. Ethernet and two option slots support communication and I/O expansion. The extra option slot over the PM5012 series allows two expansion boards instead of one.

Technical Specifications

Catalog No	PM5032-R-ETH
SKU	1SAP123500R0172
Brand	ABB
Series	AC500-eCo
EAN	4013614570841
Function	Processor module, memory 2MB, 12 DI 24 VDC, 6 DO-Relay, 2 DC 24VDC, Ethernet interface, 2 option slots
Memory Size	5,120 kB (5 MB)
Memory Type (User Data)	RAM
Controller Processing Time	0.00002 ms
Number of Digital Inputs	12
Number of Digital Outputs	6 (Relay)
Number of Digital Configurable I/Os	2
Input Voltage Type	DC
Rated Voltage (Ur)	24 V DC
Supply Voltage	20.4 - 28.8 V DC
Net Weight	0.266 kg
Gross Weight	0.305 kg
Net Dimensions (L x H x W)	74 x 135 x 82 mm

Selection Notes

Two option slots, one more than the PM5012 CPUs, let this module carry two expansion boards instead of one, while the relay outputs suit direct load switching over a transistor-output equivalent. Its 12 DI and 6 DO cover roughly double the I/O of the PM5012 series on the same CPU form factor.

Technical Details

Short Description

ABB PM5032-R-ETH AC500-eCo PLC CPU, 12 DI, 6 DO-Relay, 2 configurable I/O, Ethernet, 2 option slots.

Catalog No

PM5032-R-ETH

Delivery Date (Days)

30 days

Model Number

PM5032-R-ETH

Tariff Code

853710
