ABB 1SAP122600R0172 PM5012-T-ETH 1 MB 6 DI 4 DO-Transistor Ethernet Programmable Logic Controller

% $-123.63

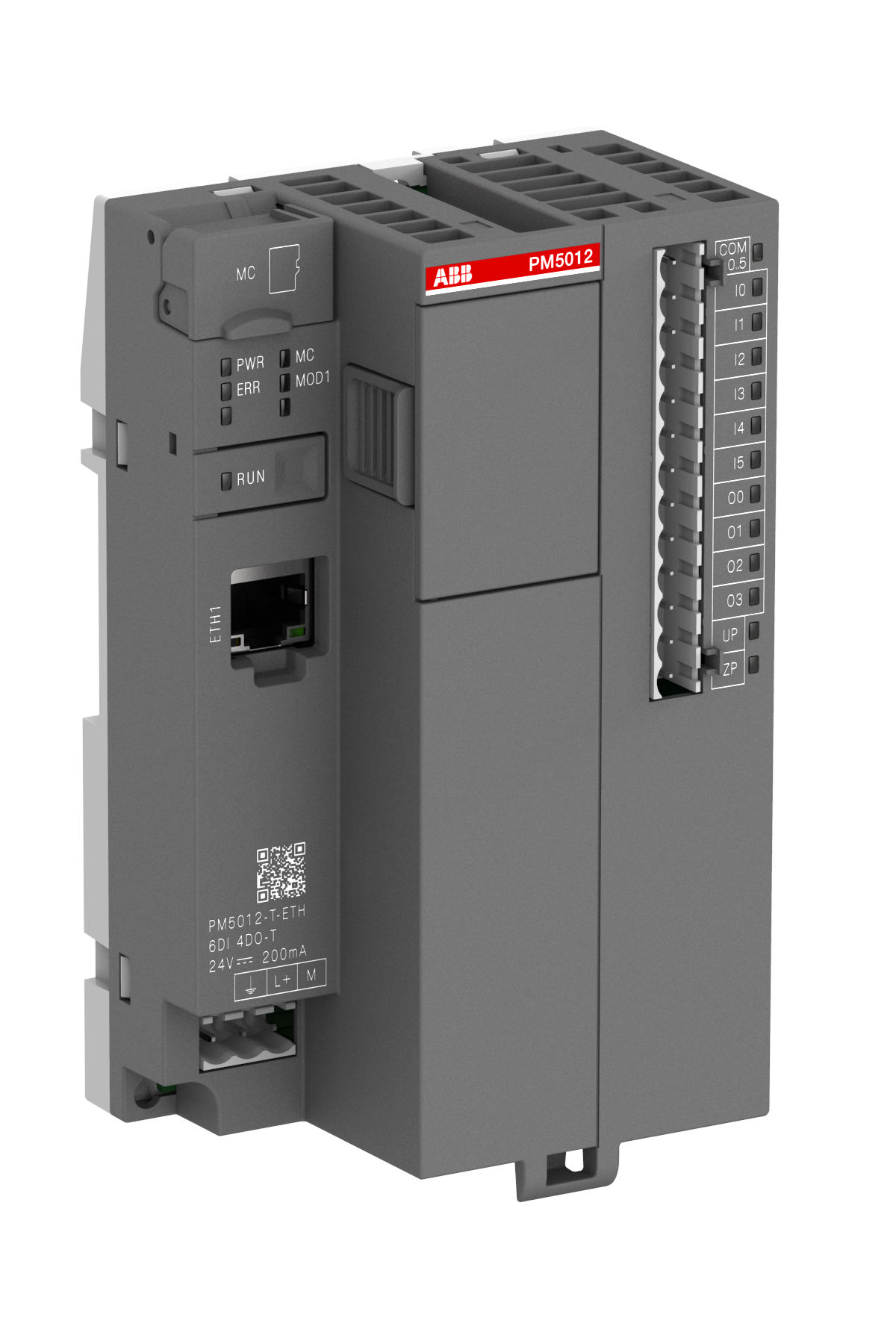

ABB 1SAP122600R0172 PM5012-T-ETH programmable logic controller - 6 DI 4 DO transistor
ABB 1SAP122600R0172 PM5012-T-ETH programmable logic controller - 6 DI 4 DO transistor

ABB 1SAP122600R0172 PM5012-T-ETH 1 MB 6 DI 4 DO-Transistor Ethernet Programmable Logic Controller

Brand: ABB
Reference No: 1SAP122600R0172
Catalog No: PM5012-T-ETH
Series: CPUs
Tariff Code (HS): 853710
Communication: Ethernet
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$123.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB PM5012-T-ETH (order code 1SAP122600R0172) is an AC500-eCo processor module with 1 MB memory, 6 digital inputs, and 4 transistor outputs at 24 V DC. It includes a built-in Ethernet interface and one option slot. The transistor outputs switch faster than relays, suiting high-cycle digital control over the relay-output PM5012-R-ETH.

Technical Specifications

Catalog No PM5012-T-ETH
SKU 1SAP122600R0172
Brand ABB
Series AC500-eCo
EAN 4013614570810
Function Processor module, memory 1MB, 6 DI 24 VDC, 4 DO-Transistor 24 VDC, Ethernet interface, 1 option slot
Memory Size 1,024 kB (1 MB)
Memory Type (User Data) RAM
Controller Processing Time 0.0002 ms
Number of Digital Inputs 6
Number of Digital Outputs 4 (Transistor)
Number of Digital Configurable I/Os 0
Input Voltage Type DC
Rated Voltage (Ur) 24 V DC
Supply Voltage 20.4 - 28.8 V DC
Net Weight 0.22 kg
Gross Weight 0.26 kg
Net Dimensions (L x H x W) 74 x 135 x 82 mm

Selection Notes

The transistor outputs on the -T variant switch faster and more often than the relay-output PM5012-R-ETH, better suited to high-cycle digital control than to switching heavier loads directly. Like the -R version it has one option slot, so it fits applications needing only a single expansion board.

Technical Details

Short Description
ABB PM5012-T-ETH AC500-eCo PLC CPU, 1MB, 6 DI, 4 DO-Transistor, Ethernet, 1 option slot, 24VDC.
Catalog No
PM5012-T-ETH
Delivery Date (Days)
30 days
Model Number
PM5012-T-ETH
Tariff Code
853710
