ABB 1SAP117200R0271 TF521-CMS 2 Comm Slots Ethernet Interface PLC Connection Module

% $-172.50
ABB 1SAP117200R0271 TF521-CMS PLC Connection Module – 2 comm slots, Ethernet
ABB 1SAP117200R0271 TF521-CMS PLC Connection Module – 2 comm slots, Ethernet

ABB 1SAP117200R0271 TF521-CMS 2 Comm Slots Ethernet Interface PLC Connection Module

Brand: ABB
Reference No: 1SAP117200R0271
Catalog No: TF521-CMS
Series: Condition Monitoring CMS
Tariff Code (HS): 853890
Communication: Ethernet, 2x communication module slots
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$172.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

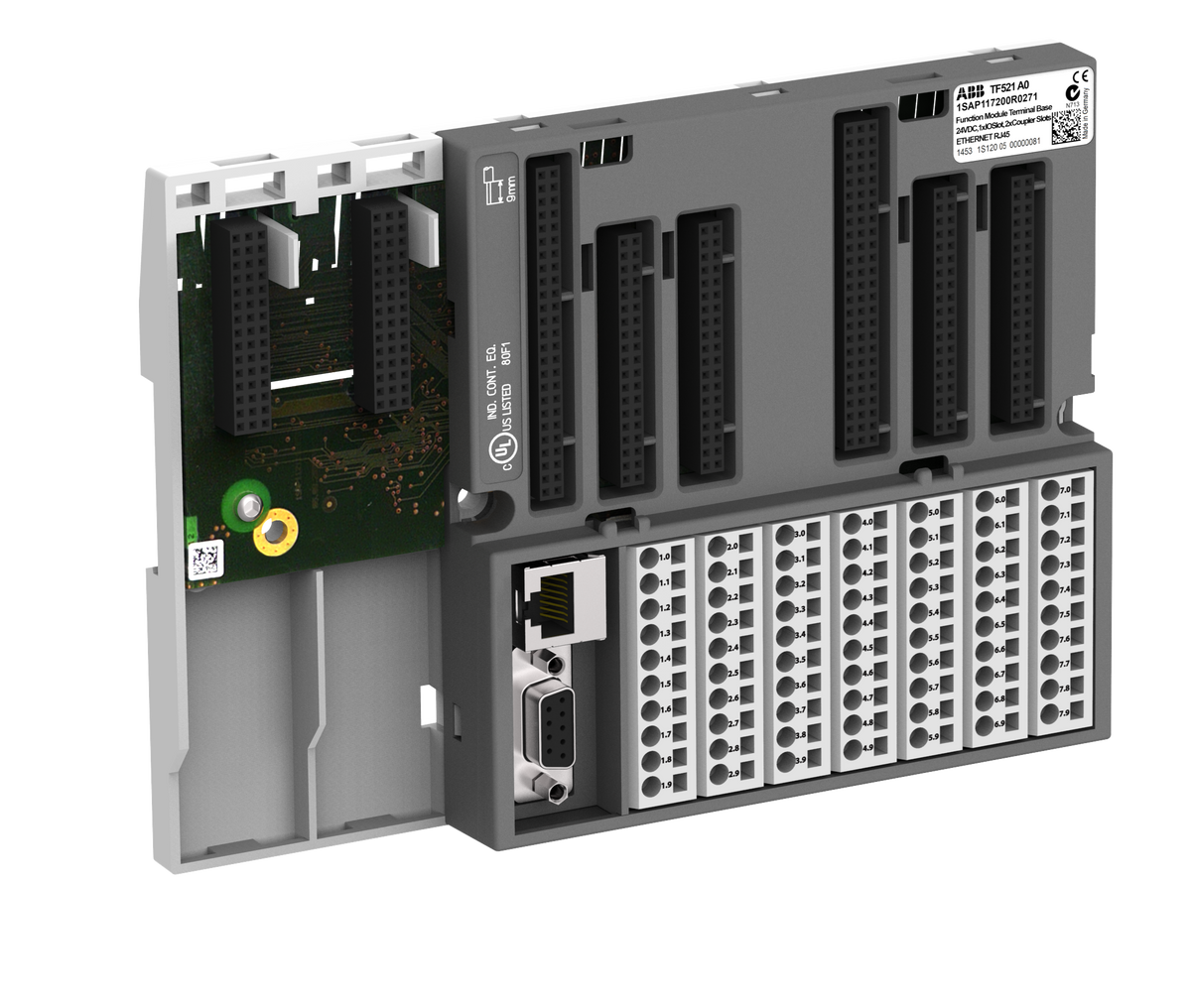

The ABB TF521-CMS (order code 1SAP117200R0271) is an AC500 function module terminal base with two slots for communication modules and a built-in Ethernet interface. IP20 rated and weighing 0.4 kg, it carries a condition monitoring function module alongside up to two CM5xx communication modules in standard-environment systems.

Technical Specifications

Order code 1SAP117200R0271
Type code TF521-CMS
Brand ABB
Series AC500 – Condition Monitoring CMS
EAN 4013614493546
Function 2 slots for communication module. Ethernet interface
Input Voltage Type DC
Degree of Protection IP20
Net Weight 0.4 kg
Net Depth / Length 28 mm
Net Height 135 mm
Net Width 191 mm
Gross Weight 0.439 kg

Selection Notes

Two communication-module slots let this terminal base carry a condition monitoring function module alongside up to two CM5xx communication modules on one base, useful when condition-monitoring data needs to reach a fieldbus beyond the base's own Ethernet interface. A rack with no communication-module requirement can use the slot-less version instead; a cabinet outside 0...+60 degrees C needs the XC-rated version of this terminal base.

Technical Details

Short Description
ABB TF521-CMS terminal base, 2 comm module slots, Ethernet interface, IP20.
Mounting Type
Terminal base
Protection Type
IP20
Catalog No
TF521-CMS
Delivery Date (Days)
30 days
Model Number
TF521-CMS
Tariff Code
853890
