ABB 1SAP114300R0278 TB5640-2ETH AC500 Terminal Base 4-Slot 2x Ethernet PLC Accessory

% $-184.00

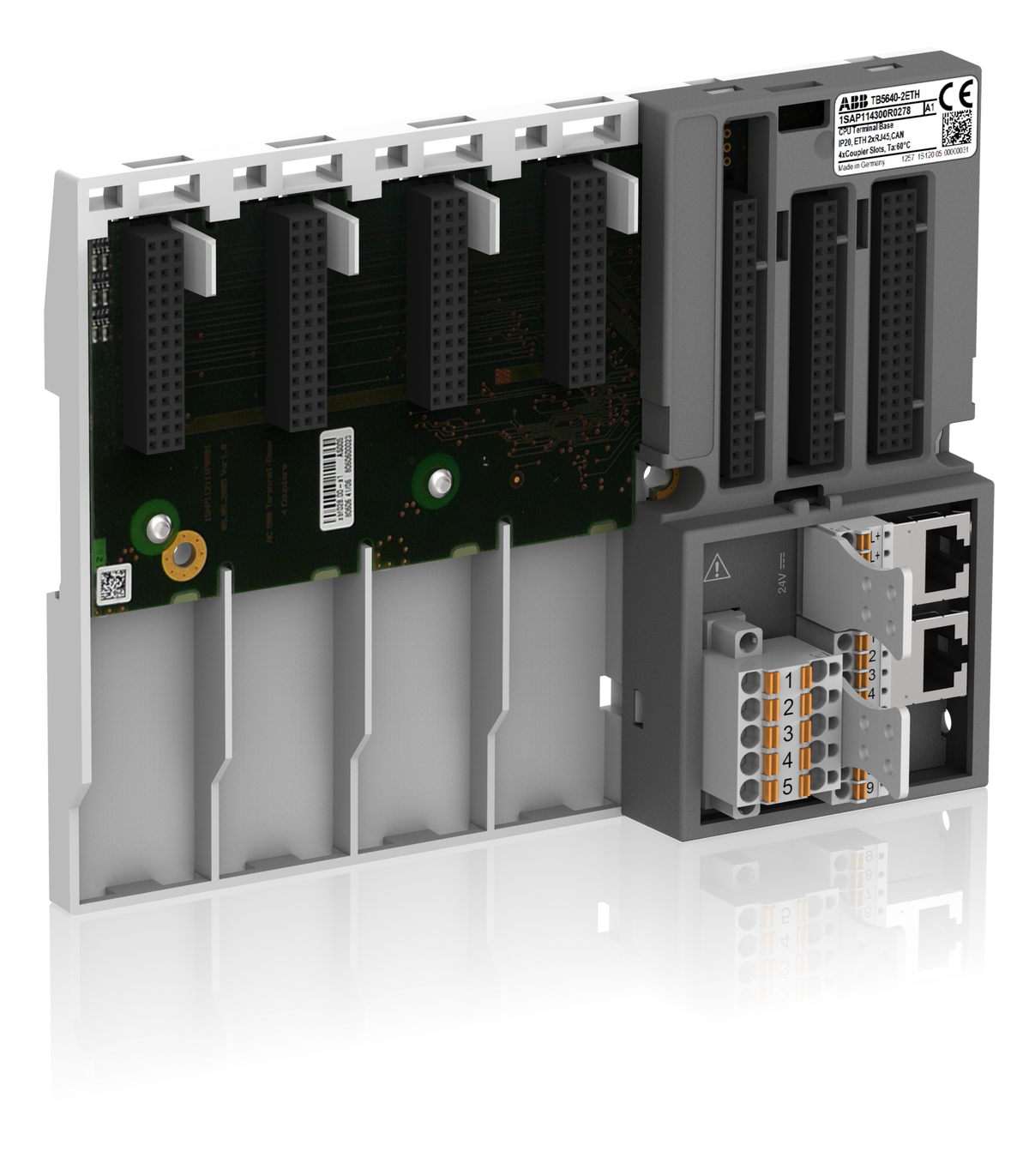

ABB 1SAP114300R0278 TB5640-2ETH AC500 terminal base, 4 slots
ABB 1SAP114300R0278 TB5640-2ETH AC500 terminal base, 4 slots

ABB 1SAP114300R0278 TB5640-2ETH AC500 Terminal Base 4-Slot 2x Ethernet PLC Accessory

Brand: ABB
Reference No: 1SAP114300R0278
Catalog No: TB5640-2ETH
Series: CPUs
Tariff Code (HS): 853890
Communication: 2x Ethernet, 1x serial, 1x CAN
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$184.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP114300R0278 (TB5640-2ETH) is an AC500 V3 terminal base with four slots for communication modules, alongside two Ethernet ports, one serial interface and one CAN interface. It carries the CPU module and distributes its DC supply across the backplane, with IP20 protection and a net weight of 0.236 kg.

Technical Specifications

Order code 1SAP114300R0278
Type code TB5640-2ETH
Brand ABB
Series AC500 CPUs (terminal base)
EAN 4013614522512
Function AC500 V3 terminal base, 4 communication module slots, 2 Ethernet, 1 serial, 1 CAN
Communication module slots 4
Input voltage type DC
Degree of protection IP20
Dimensions (L x H x W) 28 x 135 x 179.5 mm
Net weight 0.236 kg
Gross weight 0.317 kg

Selection Notes

TB5640-2ETH provides four communication module slots, enough for a CPU that needs to combine several fieldbus masters or extra serial/CAN modules at once instead of a single protocol. Its wider housing trades footprint for that expansion room, so reserve it for configurations that genuinely need more than two add-on modules; the 1- or 2-slot bases are more compact when fewer modules are planned.

Technical Details

Short Description
AC500 V3 terminal base, 4 communication module slots, 2 Ethernet, serial, CAN, IP20.
Mounting Type
AC500 CPU terminal base, 4 communication module slots
Protection Type
IP20
Catalog No
TB5640-2ETH
Delivery Date (Days)
30 days
Model Number
TB5640-2ETH
Tariff Code
853890
