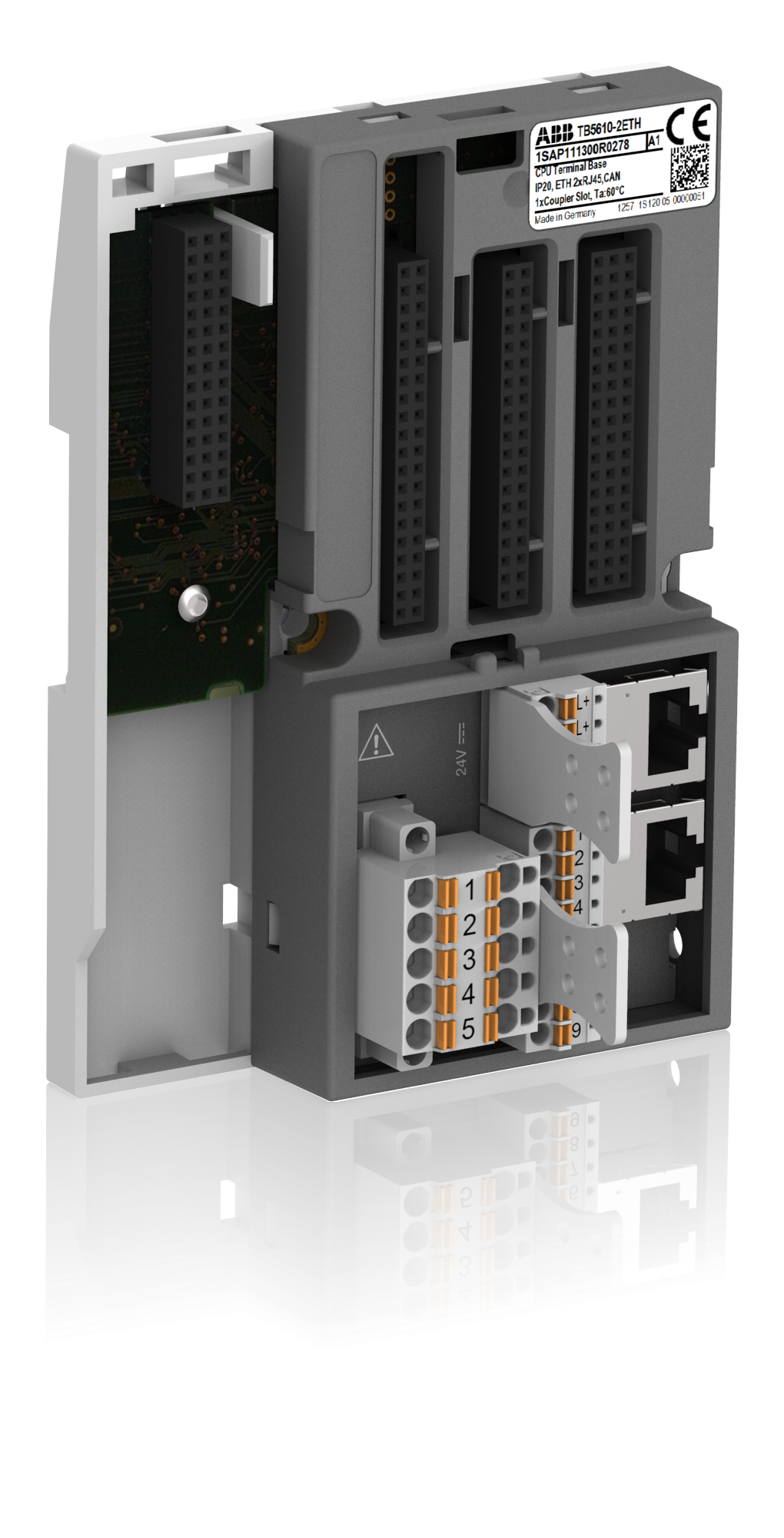

ABB 1SAP111300R0278 TB5610-2ETH AC500 Terminal Base 1-Slot 2x Ethernet PLC Accessory

% $-146.63
ABB 1SAP111300R0278 TB5610-2ETH AC500 terminal base, 1 slot
ABB 1SAP111300R0278 TB5610-2ETH AC500 terminal base, 1 slot

ABB 1SAP111300R0278 TB5610-2ETH AC500 Terminal Base 1-Slot 2x Ethernet PLC Accessory

Brand: ABB
Reference No: 1SAP111300R0278
Catalog No: TB5610-2ETH
Series: CPUs
Tariff Code (HS): 853890
Communication: 2x Ethernet, 1x serial, 1x CAN
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$146.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP111300R0278 (TB5610-2ETH) is an AC500 V3 terminal base with one slot for a communication module, alongside two Ethernet ports, one serial interface and one CAN interface. It carries the CPU module and distributes its DC supply across the backplane, with IP20 protection and a net weight of 0.157 kg.

Technical Specifications

Order code 1SAP111300R0278
Type code TB5610-2ETH
Brand ABB
Series AC500 CPUs (terminal base)
EAN 4013614508936
Function AC500 V3 terminal base, 1 communication module slot, 2 Ethernet, 1 serial, 1 CAN
Communication module slots 1
Input voltage type DC
Degree of protection IP20
Dimensions (L x H x W) 28 x 135 x 95.5 mm
Net weight 0.157 kg
Gross weight 0.228 kg

Selection Notes

TB5610-2ETH adds one communication module slot over the plain TB5600-2ETH, so it is the choice once a project needs exactly one add-on module, such as a single PROFIBUS or CANopen interface, alongside the CPU's own Ethernet, serial and CAN ports. If more than one add-on module is required, step up to the 2-, 4- or 6-slot bases in the same family instead.

Technical Details

Short Description
AC500 V3 terminal base, 1 communication module slot, 2 Ethernet, serial, CAN, IP20.
Mounting Type
AC500 CPU terminal base, 1 communication module slot
Protection Type
IP20
Catalog No
TB5610-2ETH
Delivery Date (Days)
30 days
Model Number
TB5610-2ETH
Tariff Code
853890
