MO132| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 25 | 1SAM360000R1014This part | Low stock | $50.69 | |
| 32 | 1SAM360000R1015 | Low stock | $80.05 |

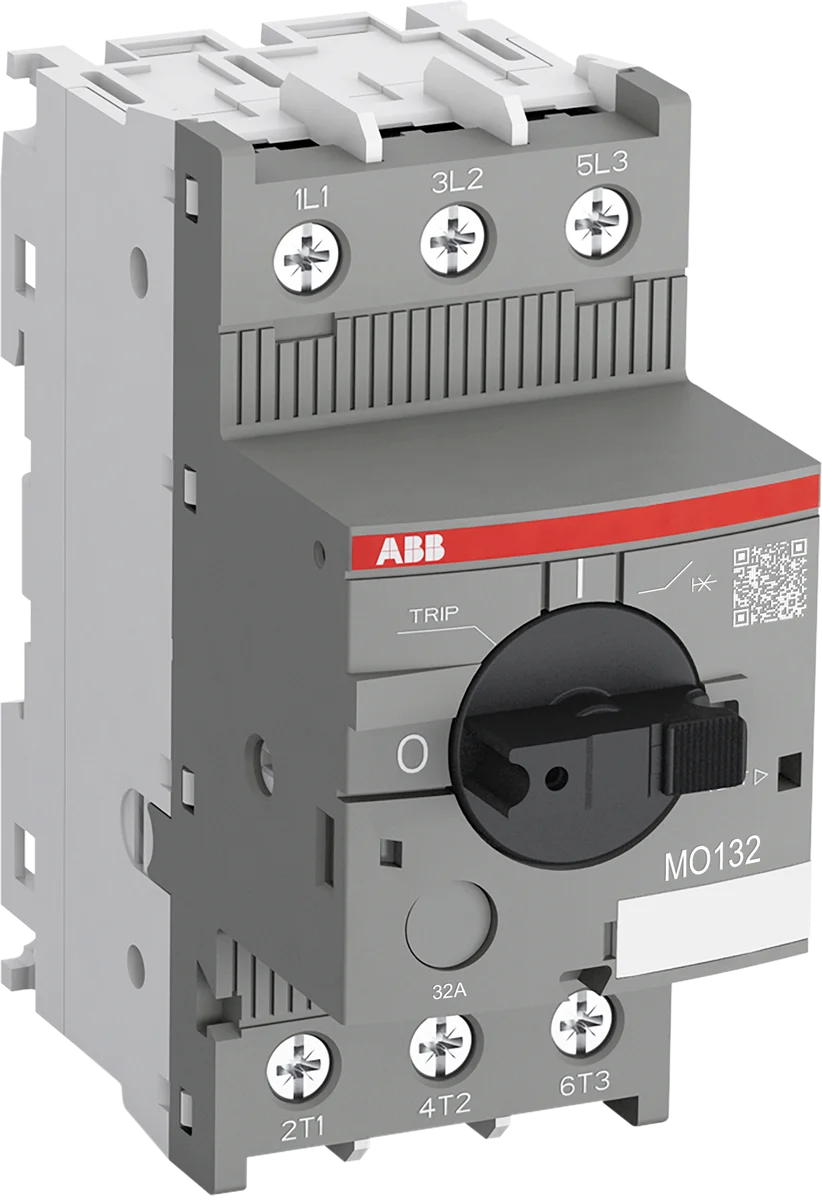

The ABB MO132-25 (SKU: 1SAM360000R1014) is a motor protection circuit breaker — a magnetic-only manual motor starter rated at 25 A — engineered for reliable short-circuit protection of motors and electrical installations in demanding industrial automation environments. Part of ABB's MO132 series, this compact 3-pole device delivers a high breaking capacity of 50 kA at 400 V AC, making it a dependable choice for control panel builders and plant engineers worldwide.
The MO132-25 is ideally suited for direct-on-line motor starting and short-circuit protection in industrial control panels, machine building, HVAC systems, conveyor drives, pump stations, and process automation equipment. Its magnetic-only trip mechanism ensures fast and reliable short-circuit disconnection without thermal overload intervention, making it the preferred choice when a separate thermal overload relay is used downstream. The 45 mm compact footprint and 3-pole configuration simplify DIN rail installation in space-constrained enclosures, while the broad international certification portfolio — including marine approvals from DNV, LR, RINA, and RMRS — qualifies the ABB MO132-25 for both onshore and offshore industrial environments.
| Product Net Width | 45 mm |
|---|---|
| Product Net Height | 97.8 mm |
| Product Net Depth / Length | 86.55 mm |
| Product Net Weight | 0.31 kg |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 50 kA, (400 V AC) 50 kA, (440 V AC) 20 kA, (500 V AC) 10 kA, (690 V AC) 3 kA |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 50 kA, (400 V AC) 50 kA, (440 V AC) 20 kA, (500 V AC) 10 kA, (690 V AC) 3 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 313 A |
| Setting Range | None |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 11 kW |
| Rated Operational Power AC-3e (Pe) | (400 V) Three Phase 11 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 25 A |
| Rated Operational Current AC-3 (Ie) | 25 A |
| Rated Operational Current AC-3e (Ie) | 25 A |
| Rated Frequency (f) | Main Circuit 50 Hz, Main Circuit 60 Hz |
| Operating Frequency (fsw) | 0 ... 400 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Power Loss | at Rated Operating Conditions AC-3 per Pole 2.2 W |
| Number of Poles | 3P |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 25 A |
| Degree of Protection | Housing IP20, Main Circuit Terminals IP10 |
| Pollution Degree | 3 |
| Electrical Durability | 50000 cycle |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 6 mm², Flexible 1/2x 1 ... 2.5 mm², Flexible 1/2x 2.5 ... 6 mm², Rigid 1/2x 1 ... 2.5 mm², Rigid 1/2x 2.5 ... 6 mm² |
| Tightening Torque | Main Circuit 2 N·m |
| Wire Stripping Length | Main Circuit 10 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mm, Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm, Electrical Conductive Board, Vertical 75 mm, Other Device Same Type, Horizontal 0 mm, Other Device Same Type, Vertical 150 mm |
| Contact Position Indication | ON / OFF / TRIP |
| Standards | IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L |
| Remarks | For overload protection of the motors, an appropriate thermal or electronic overload relays must be used |
| Short-Circuit Current Rating (SCCR) UL/CSA | Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 35 kA, Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 35 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 30 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 18 kA, Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 30 kA, Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 5 Hp, (208 V AC) Three Phase 7.5 Hp, (220 ... 240 V AC) Three Phase 7.5 Hp, (440 ... 480 V AC) Three Phase 15 Hp, (550 ... 600 V AC) Three Phase 20 Hp |
| Full Load Amps Motor Use | (200 V AC) Three Phase 17.5 A, (208 V AC) Three Phase 24.2 A, (220 ... 240 V AC) Three Phase 22 A, (440 ... 480 V AC) Three Phase 21 A, (550 ... 600 V AC) Three Phase 22 A |
| Locked Rotor Amps | (200 V AC) Three Phase 105.8 A, (208 V AC) Three Phase 140 A, (220 ... 240 V AC) Three Phase 127 A, (440 ... 480 V AC) Three Phase 116 A, (550 ... 600 V AC) Three Phase 116 A |
| General Use Rating UL/CSA | (600 V AC) 25 A |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-8 AWG, Stranded 1/2x 16-8 AWG |
| Tightening Torque UL/CSA | Main Circuit 18 in·lb |
| Part number | 1SAM360000R1014 |
|---|---|
| Type designation | MO132-25 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614400292 |
| ETIM class | EC000074 |
| eCl@ss | 27370401 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362010 |
| Ambient Air Temperature | Around the Enclosure 0 ... +40 °C, Operation -25 ... +60 °C, Storage -50 ... +80 °C |
|---|---|
| Ambient Air Temperature Compensation | No |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| REACH Declaration | 1SAA963005-4502 |
|---|---|
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 10 | EC000074 - Motor protection circuit-breaker |
|---|---|
| eClass | V11.0 : 27370401 |
| UNSPSC | 39121521 |
| E-Number (Sweden) | 3110042 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 92 mm |
| Package Level 1 Depth / Length | 102 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.325 kg |
| Package Level 1 EAN | 4013614400292 |
| Package Level 2 Units | carton 40 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 13.386 kg |
| Package Level 2 EAN | 4013614443749 |
| Shipping weight | 0.325 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheet| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 25 A | 1SAM360000R1014 This part | MO132-25 | Low stock | $50.69 | |||
| 32 A | 1SAM360000R1015 | MO132-32 | Low stock | $80.05 |
The rated current of MO132-25 is 25 A.
The rated operational voltage of MO132-25 is 400 V AC.
The tariff (HS) code on file for MO132-25 is 85362010.
The EAN (GTIN) of MO132-25 is 4013614400292.
MO132-25 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
