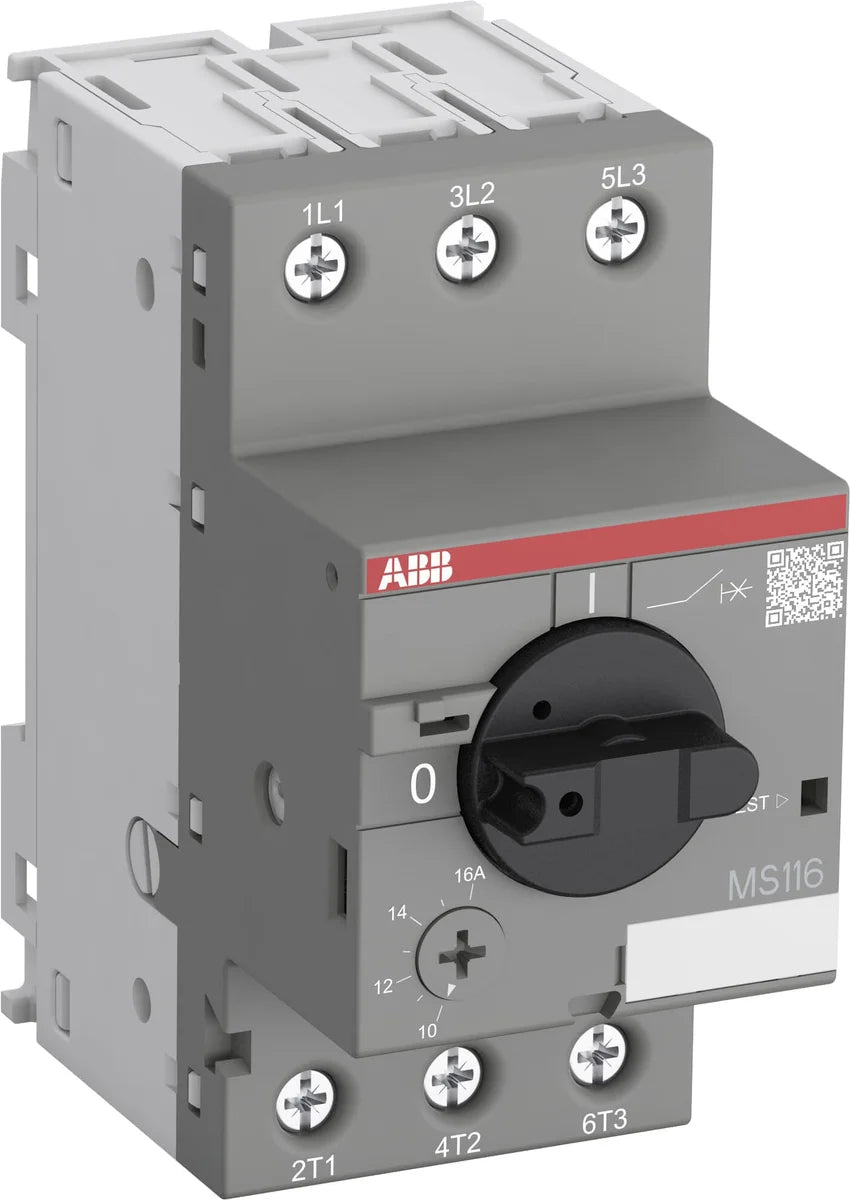

The ABB MS116-6.3 motor protection circuit-breaker (SKU 1SAM250000R1009) is a 3-pole manual motor starter rated at 4.0–6.3A with an exceptional 50 kA breaking capacity at 400 VAC, delivering reliable short-circuit and overload protection for three-phase motors in demanding industrial environments. Compact at just 45mm × 90mm × 85.6mm and weighing only 0.28 kg, the MS116-6.3 is engineered for space-efficient control panel integration across automation and motor control applications.
| Product Net Width | 45 mm |
|---|---|
| Product Net Height | 90 mm |
| Product Net Depth / Length | 85.6 mm |
| Product Net Weight | 0.265 kg |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 50 kA, (400 V AC) 50 kA, (440 V AC) 6 kA, (500 V AC) 6 kA, (690 V AC) 2 kA |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 75 kA, (400 V AC) 75 kA, (440 V AC) 18 kA, (500 V AC) 15 kA, (690 V AC) 3 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 78.8 A |
| Setting Range | 4.0 ... 6.3 A |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 2.2 kW |
| Rated Operational Power AC-3e (Pe) | (400 V) Three Phase 2.2 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 6.3 A |
| Rated Operational Current AC-3 (Ie) | 6.3 A |
| Rated Operational Current AC-3e (Ie) | 6.3 A |
| Rated Frequency (f) | Main Circuit 50 Hz, Main Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Power Loss | at Rated Operating Conditions AC-3 per Pole 1.8 W |
| Number of Poles | 3P |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 6.3 A |
| Degree of Protection | Housing IP20, Main Circuit Terminals IP10 |
| Pollution Degree | 3 |
| Electrical Durability | 100000 cycle |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm², Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm² |
| Tightening Torque | Main Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length | Main Circuit 9 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Mounting Position | 1 ... 6, any |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mm, Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm, Electrical Conductive Board, Vertical 75 mm, Other Device Same Type, Horizontal 0 mm, Other Device Same Type, Vertical 150 mm |
| Contact Position Indication | ON / OFF |
| Standards | IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L |
| Short-Circuit Current Rating (SCCR) UL/CSA | Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 18 kA, Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 5 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 18 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 5 kA |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 1 Hp, (208 V AC) Three Phase 1 Hp, (220 ... 240 V AC) Three Phase 1.5 Hp, (440 ... 480 V AC) Three Phase 3 Hp, (550 ... 600 V AC) Three Phase 5 Hp |
| Full Load Amps Motor Use | (200 V AC) Three Phase 6.3 A, (208 V AC) Three Phase 6.3 A, (220 ... 240 V AC) Three Phase 6.3 A, (440 ... 480 V AC) Three Phase 4.8 A, (550 ... 600 V AC) Three Phase 6.1 A |
| Locked Rotor Amps | (200 V AC) Three Phase 37.8 A, (208 V AC) Three Phase 37.8 A, (220 ... 240 V AC) Three Phase 37.8 A, (440 ... 480 V AC) Three Phase 32 A, (550 ... 600 V AC) Three Phase 36.8 A |
| General Use Rating UL/CSA | (600 V AC) 6.3 A |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-12 AWG, Stranded 1/2x 16-12 AWG |
| Tightening Torque UL/CSA | Main Circuit 10 in·lb |
| Part number | 1SAM250000R1009 |
|---|---|
| Type designation | MS116-6.3 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614320323 |
| ETIM class | EC000074 |
| eCl@ss | 27370401 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362010 |
| Ambient Air Temperature | Around the Enclosure 0 ... +40 °C, Operation -25 ... +70 °C, Operation Compensated -25 ... +55 °C, Storage -50 ... +80 °C |
|---|---|
| Ambient Air Temperature Compensation | Yes |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 2g 5 ... 150 Hz, 5g 3 ... 150 Hz |
| REACH Declaration | 1SAA963005-4502 |
|---|---|
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 10 | EC000074 - Motor protection circuit-breaker |
|---|---|
| eClass | V11.0 : 27370401 |
| UNSPSC | 39121521 |
| E-Number (Sweden) | 3111946 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 92 mm |
| Package Level 1 Depth / Length | 95 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.28 kg |
| Package Level 1 EAN | 4013614320323 |
| Package Level 2 Units | carton 40 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 11.586 kg |
| Package Level 2 EAN | 4013614408694 |
| Shipping weight | 0.28 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
