MS116| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 0.25 | 1SAM250000R1002 | In stock | $33.43 | |
| 0.40 | 1SAM250000R1003 | In stock | $31.65 | |
| 0.63 | 1SAM250000R1004This part | In stock | $31.65 | |
| 1.0 | 1SAM250000R1005 | In stock | $31.65 | |
| 1.6 | 1SAM250000R1006 | In stock | $31.65 |

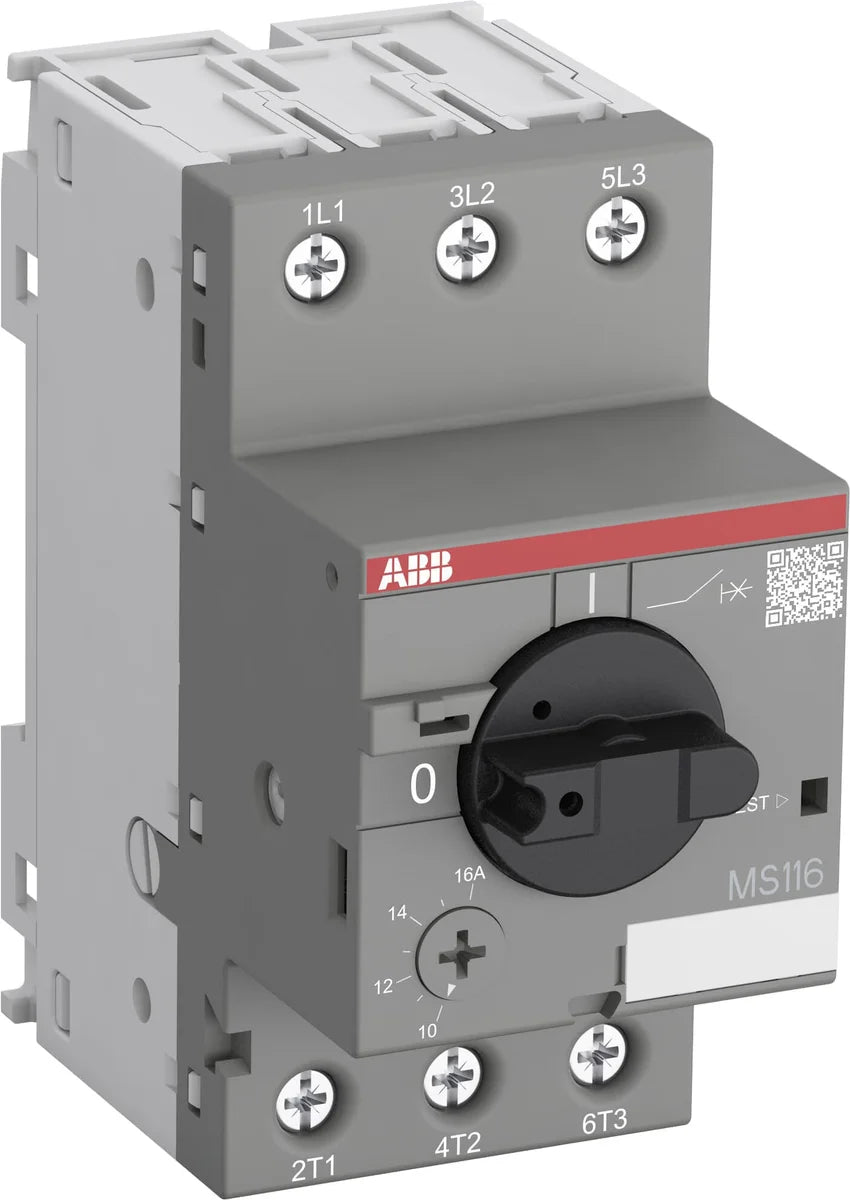

The ABB MS116-0.63 (SKU: 1SAM250000R1004) is a 3-pole manual motor starter and motor protection circuit-breaker rated for 0.40–0.63 A at 400 VAC, delivering a high breaking capacity of 50 kA to protect small motors in industrial control panels and automation systems. Part of ABB's proven MS116 series, the MS116-0.63 combines overload and short-circuit protection in a compact 45 mm wide device weighing just 0.24 kg, making it ideal for panel space-constrained installations.
| Product Net Width | 45 mm |
|---|---|
| Product Net Height | 90 mm |
| Product Net Depth / Length | 85.6 mm |
| Product Net Weight | 0.225 kg |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 50 kA, (400 V AC) 50 kA, (440 V AC) 50 kA, (500 V AC) 30 kA, (690 V AC) 30 kA |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 100 kA, (400 V AC) 100 kA, (440 V AC) 100 kA, (500 V AC) 100 kA, (690 V AC) 100 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 7.9 A |
| Setting Range | 0.40 ... 0.63 A |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 0.18 kW |
| Rated Operational Power AC-3e (Pe) | (400 V) Three Phase 0.18 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 0.63 A |
| Rated Operational Current AC-3 (Ie) | 0.63 A |
| Rated Operational Current AC-3e (Ie) | 0.63 A |
| Rated Frequency (f) | Main Circuit 50 Hz, Main Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Power Loss | at Rated Operating Conditions AC-3 per Pole 1.7 W |
| Number of Poles | 3P |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 0.63 A |
| Degree of Protection | Housing IP20, Main Circuit Terminals IP10 |
| Pollution Degree | 3 |
| Electrical Durability | 100000 cycle |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm², Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm² |
| Tightening Torque | Main Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length | Main Circuit 9 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Mounting Position | 1 ... 6, any |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mm, Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm, Electrical Conductive Board, Vertical 75 mm, Other Device Same Type, Horizontal 0 mm, Other Device Same Type, Vertical 150 mm |
| Contact Position Indication | ON / OFF |
| Standards | IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L |
| Short-Circuit Current Rating (SCCR) UL/CSA | Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 30 kA, Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 5 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 30 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 5 kA |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Full Load Amps Motor Use | (110 ... 120 V AC) Three Phase 0.63 A, (200 V AC) Three Phase 0.63 A, (208 V AC) Three Phase 0.63 A, (220 ... 240 V AC) Three Phase 0.63 A, (440 ... 480 V AC) Three Phase 0.63 A, (550 ... 600 V AC) Three Phase 0.63 A |
| Locked Rotor Amps | (110 ... 120 V AC) Three Phase 3.78 A, (200 V AC) Three Phase 3.78 A, (208 V AC) Three Phase 3.78 A, (220 ... 240 V AC) Three Phase 3.78 A, (440 ... 480 V AC) Three Phase 3.78 A, (550 ... 600 V AC) Three Phase 3.78 A |
| General Use Rating UL/CSA | (600 V AC) 0.63 A |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-12 AWG, Stranded 1/2x 16-12 AWG |
| Tightening Torque UL/CSA | Main Circuit 10 in·lb |
| Part number | 1SAM250000R1004 |
|---|---|
| Type designation | MS116-0.63 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614320279 |
| ETIM class | EC000074 |
| eCl@ss | 27370401 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362010 |
| Ambient Air Temperature | Around the Enclosure 0 ... +40 °C, Operation -25 ... +70 °C, Operation Compensated -25 ... +55 °C, Storage -50 ... +80 °C |
|---|---|
| Ambient Air Temperature Compensation | Yes |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 2g 5 ... 150 Hz, 5g 3 ... 150 Hz |
| REACH Declaration | 1SAA963005-4502 |
|---|---|
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 10 | EC000074 - Motor protection circuit-breaker |
|---|---|
| eClass | V11.0 : 27370401 |
| UNSPSC | 39121521 |
| E-Number (Sweden) | 3111936 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 92 mm |
| Package Level 1 Depth / Length | 95 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.24 kg |
| Package Level 1 EAN | 4013614320279 |
| Package Level 2 Units | carton 40 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 9.986 kg |
| Package Level 2 EAN | 4013614408649 |
| Shipping weight | 0.24 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheet| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 0.16 A | 1SAM250000R1001 | MS116-0.16 | In stock | $33.43 | |||
| 0.25 A | 1SAM250000R1002 | MS116-0.25 | In stock | $33.43 | |||
| 0.40 A | 1SAM250000R1003 | MS116-0.4 | In stock | $31.65 | |||
| 0.63 A | 1SAM250000R1004 This part | MS116-0.63 | In stock | $31.65 | |||
| 1.0 A | 1SAM250000R1005 | MS116-1.0 | In stock | $31.65 | |||
| 1.6 A | 1SAM250000R1006 | MS116-1.6 | In stock | $31.65 |
The rated current of MS116-0.63 is 0.63 A.
The rated operational voltage of MS116-0.63 is 400 V AC.
The tariff (HS) code on file for MS116-0.63 is 85362010.
The EAN (GTIN) of MS116-0.63 is 4013614320279.
MS116-0.63 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
