ABB 1SAJ590000R0103 UMC100-PAN LCD Panel with USB Interface Operator Panel for Motor Management Device

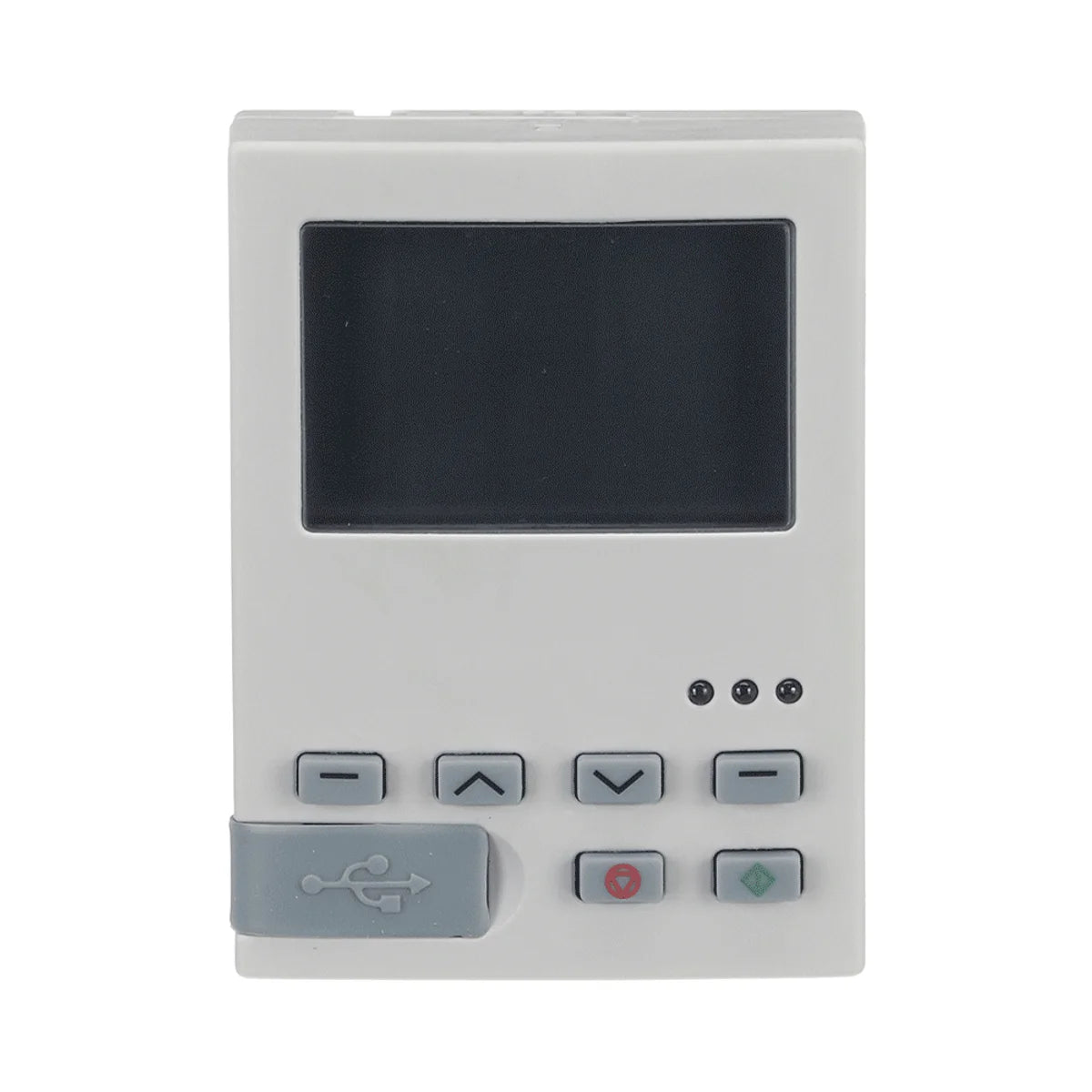

The ABB UMC100-PAN (1SAJ590000R0103) is an LCD operator panel with USB interface designed for the UMC100.3 Universal Motor Controller, providing door-mounted local control and monitoring of motor management functions. This compact panel — measuring just 50 × 17 × 67 mm and weighing 47 g — replaces the previous 1SAJ590000R0102 and offers engineers a practical front-of-panel interface for commissioning, diagnostics, and parameter configuration directly on the switchboard door.

Technical Specifications

Certifications & Standards

• CAN/CSA C22.2 No.60947-1: Canadian standard for low-voltage switchgear and controlgear — general rules
• CAN/CSA C22.2 No.60947-4-1: Canadian standard for electromechanical contactors and motor starters
• IEC/EN 61000-6-2: Electromagnetic compatibility — generic immunity standard for industrial environments
• IEC/EN 61000-6-4: Electromagnetic compatibility — generic emission standard for industrial environments
• EN 61000-6: EMC generic standards for industrial environments
• UL 60947-1: UL standard for low-voltage switchgear and controlgear — general rules
• UL 60947-4-1A: UL standard for AC electromechanical contactors and motor starters
• CSA C22.2 No.60947: CSA general low-voltage switchgear and controlgear standard
• CSA: Canadian Standards Association certified
• ATEX: Certified for use in potentially explosive atmospheres (EU Directive 2014/34/EU)
• cULus: Combined UL and CSA certification for North American markets
• CE: Conformité Européenne — meets EU health, safety, and environmental protection requirements
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU chemical safety regulation (EC No 1907/2006)
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU

Applications & Use Cases

• Door-mounted local operator interface for ABB UMC100.3 Universal Motor Controllers in MCC panels and switchboards
• On-site commissioning and parameter programming of motor management devices via USB connection
• Real-time motor diagnostics and fault display in industrial automation and process control applications
• Motor protection configuration in pump stations, compressor panels, HVAC systems, and conveyor drives
• Suitable for use in hazardous area panels certified to ATEX requirements
