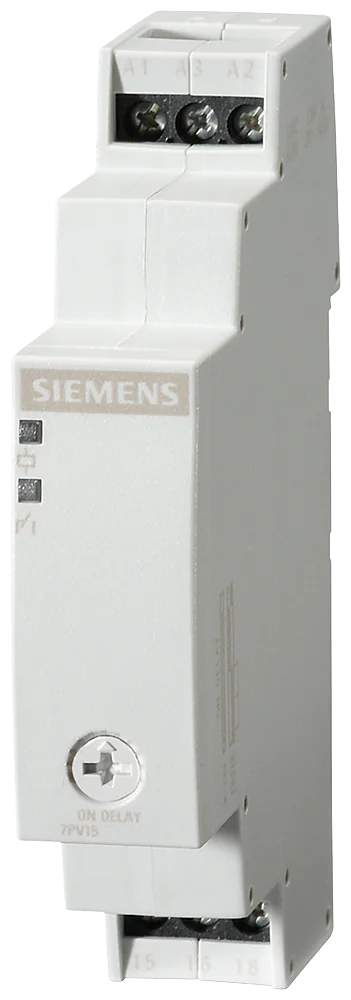

Siemens 7PV1512-1AP30 7PV1 24/230V Relay

Name: Siemens 7PV1512-1AP30 7PV1 24/230V Relay
Brand: Siemens
SKU: 7PV1512-1AP30
Price: 35.19 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 7PV1512-1AP30

Catalog No: 7PV1512-1AP30

Series: 7PV1

Rated Voltage: 24/230V

Stock: 0

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$35.19

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 7PV1512-1AP30 is a relay from the SENTRON/SIRIUS 7PV1 series. Timing relay, electronic ON delay 1 change-over contact, 1 time range 0.5...10 s 24/230 V AC and 24 V DC with LED, Screw terminal. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	7PV1512-1AP30
Brand	Siemens
Series	7PV1
Product Type	Relay
Product component semi-conductor output	No
Product extension required remote control	No
Product extension optional remote control	No
Power loss [W] maximum	2 W
Test voltage for isolation test	2.2 kV
Degree of pollution	2
Surge voltage resistance rated value	4 000 V
Test voltage for surge voltage test	4 800 V
Shock resistance according to IEC 60068-2-27	11 g / 15 ms
Vibration resistance according to IEC 60068-2-6	10 ... 55 Hz: 0.35 mm
Mechanical service life (operating cycles) typical	10 000 000
Adjustable time	0.5 ... 10 s
Relative setting accuracy relating to full-scale value	5 %; +/-
ON period/maximum minimum	35 ms
Recovery time	500 ms
Relative repeat accuracy	2 %; +/-
Influence of the surrounding temperature	2% in complete temperature range for the set duration
Power supply influence	2% in complete voltage range for the set duration
Weight	0.065 kg
Country of Origin	CZ

Certifications & Standards

EN 61000-6

Applications & Use Cases

The Siemens 7PV1512-1AP30 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 7PV1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Voltage (VAC)

24/230V

Catalog No

7PV1512-1AP30

Standards

EN 61000-6

Delivery Date (Days)

1-2 days

Model Number

7PV1
