Siemens 7KM1020-0BA01-1DA0 Energy Analyzer

Siemens 7KM1020-0BA01-1DA0 7KM1 400/230V Energy Analyzer

Name: Siemens 7KM1020-0BA01-1DA0 7KM1 400/230V Energy Analyzer
Brand: Siemens
SKU: 7KM1020-0BA01-1DA0
Price: 225.22 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 7KM1020-0BA01-1DA0

Catalog No: 7KM1020-0BA01-1DA0

Series: 7KM1

Rated Voltage: 400/230V

Stock: 90

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$225.22

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

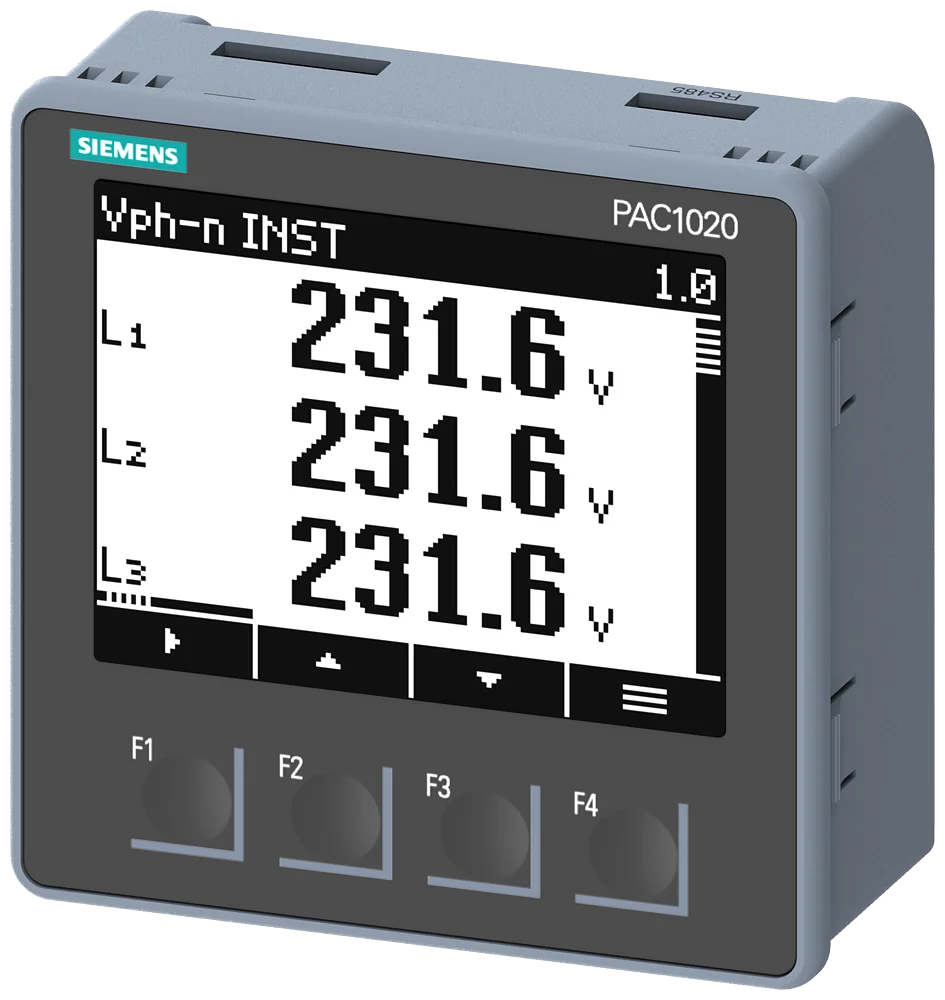

The Siemens 7KM1020-0BA01-1DA0 is a multimeter from the SENTRON/SIRIUS 7KM1 series. SENTRON PAC1020, 96 x 96 mm Power Monitoring Device, control panel instrument with measurement of electrical variables, protocol: Modbus RTU, with graphical display, Ue rated max: 400/230 V, 45-65 Hz, Ie rated: X/5A AC, auxiliary power: 85 V – 276 V AC screw terminal connection. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	7KM1020-0BA01-1DA0
Brand	Siemens
Series	7KM1
Product Type	Energy Analyzer
Product brand name	SENTRON
Product designation	multimeter
Design of the product	basic
Product type designation	7KM PAC1020
For voltage measurement	TRMS
For current measurement	TRMS
Type of measured value detection	complete
Voltage curve	Sinusoidal or distorted
Initial value	45 Hz
Full-scale value	65 Hz
Set at 50 Hz	No
Set to 60 Hz	No
Design of the power supply	Wide-range power supply
Type of voltage of the supply voltage	AC/DC
Supply voltage at AC	100 ... 250 V
Supply voltage at DC	100 ... 250 V
Protection class IP on the front	IP40
Operating resource protection class when installed	II
Weight	0.299 kg
Country of Origin	CN

Certifications & Standards

IEC62053-21
IEC62053-31

Applications & Use Cases

The Siemens 7KM1020-0BA01-1DA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 7KM1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Voltage (VAC)

400/230V

Catalog No

7KM1020-0BA01-1DA0

Standards

IEC62053-21, IEC62053-31

Delivery Date (Days)

1-2 days

Model Number

7KM1
