Siemens 6XV1870-3QN50 SIMATIC NET IE TP Cord RJ45/RJ45 Cat6a 50 m Industrial Network Cable

% $-187.82

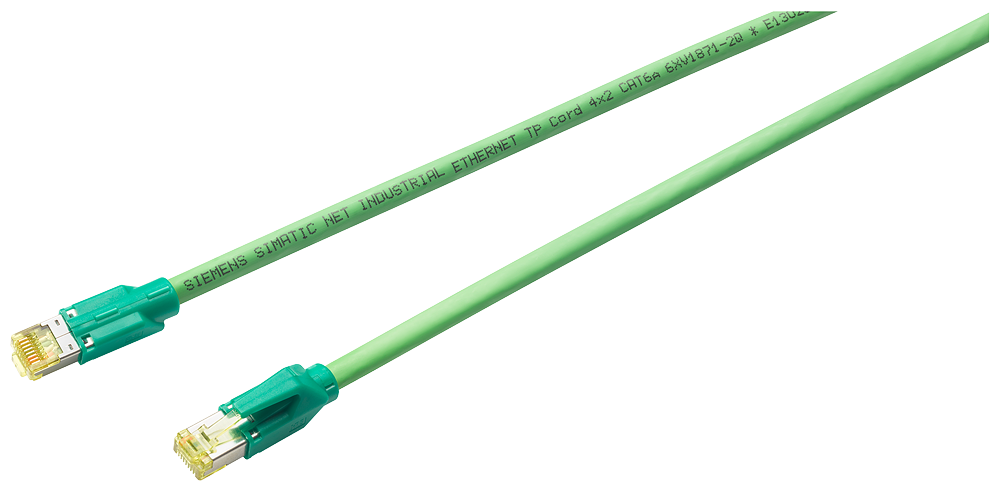

Siemens 6XV1870-3QN50 IE TP Cord RJ45/RJ45 Industrial Network Cable – Cat6a 50 m
Siemens 6XV1870-3QN50 IE TP Cord RJ45/RJ45 Industrial Network Cable – Cat6a 50 m

Siemens 6XV1870-3QN50 SIMATIC NET IE TP Cord RJ45/RJ45 Cat6a 50 m Industrial Network Cable

Brand: Siemens
Reference No: 6XV1870-3QN50
Catalog No: 6XV1870-3QN50
Series: SIMATIC NET
Tariff Code (HS): 85444210
Rated Voltage: 80 V
Communication: PoE/PoE+/PoE++, 10GBASE-T (Cat6a)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$187.82

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6XV1870-3QN50 is a 50 m SIMATIC NET Industrial Ethernet TP Cord with two factory-assembled RJ45 connectors, built to Cat6a structured cabling standards rated up to 600 MHz. Its S/FTP shielded 4x2 design carries PoE, PoE+, and PoE++ power alongside 10GBASE-T data on the same run, holding loop resistance to 290 mΩ/m maximum and coupling loss above 70 dB.

Technical Specifications

SKU 6XV1870-3QN50
EAN 4019169855327
Brand Siemens
Series SIMATIC NET
Product Type Designation IE TP Cord RJ45/RJ45, 4x2
Cable Designation S/FTP, LI 02YSCH 4x2x0,15 PIMF GN FRNC
Wire Length 50 m
Number of Electrical Connections 2
Structured Cabling Standard Cat6A
Attenuation at 10 MHz (max) 0.086 dB/m
Attenuation at 100 MHz (max) 0.28 dB/m
Attenuation at 300 MHz (max) 0.501 dB/m
Attenuation at 600 MHz (max) 0.735 dB/m
Impedance (1-100 MHz) 100 Ω
Impedance (10-600 MHz) 100 Ω
Impedance Tolerance (1-100 MHz) 15%
Impedance Tolerance (10-600 MHz) 10%
Coupling Loss at 30-100 MHz (min) 70 dB
Transfer Impedance at 10 MHz 10 mΩ/m
Loop Resistance (max) 290 mΩ/m
Operating Voltage (RMS) 80 V
NVP Value 80%
Number of Electrical Cores 8
Shield Design S/FTP, overlapped aluminum-clad foil, tinned copper braided shield
Conductor Diameter (AWG26) 0.5 mm
Cable Sheath Outer Diameter 6.2 mm
Wire Insulation Material polyethylene (PE)
Cable Sheath Material FRNC
Cable Sheath Color green
Bending Radius, Single Bend (min) 31 mm
Bending Radius, Multiple Bends (min) 43.5 mm
Weight per Length 50 kg/km
Connector Type RJ45
Plug-in Connection Design RJ45-180
Ambient Temperature, Operation -25 ... +80 °C
Ambient Temperature, Storage -25 ... +80 °C
Ambient Temperature, Fixed Installation -40 ... +80 °C
Fire Behavior flame resistant per IEC 60332-1-2, EN 60332-3-24
Burning Behaviour Class (EN 13501-6) Eca
Protection Class IP20
Halogen-Free Yes
PoE Capability Yes
PoE+ Capability Yes
PoE++ Capability Yes
Test Voltage AC, Core-to-Core 500 V
Test Voltage AC, Core-Shield 1500 V
Country of Origin HU
Net Weight 0.498 kg

Certifications & Standards

  • EAC
  • UL
  • RoHS

Selection Notes

At 50 m this is the longest pre-terminated cord in the TP Cord series, useful for switch-to-device runs that would otherwise need a coupler and a second cord segment. The 0.735 dB/m attenuation at 600 MHz and ±10% impedance tolerance across 10–600 MHz keep the full Cat6a link within spec for 10GBASE-T at this length. Pick a shorter cord from the series whenever the physical route is well under 50 m to avoid coiling and securing excess slack in the cabinet.

Technical Details

Short Description
Siemens 6XV1870-3QN50 IE TP Cord RJ45/RJ45, Cat6a S/FTP, 50 m, PoE++.
Rated Voltage (VAC)
80 V
Protection Type
IP20
Catalog No
6XV1870-3QN50
Standards
EAC approval, UL approval, RoHS conformity
Delivery Date (Days)
10-15 days
Model Number
6XV1870-3QN50
Tariff Code
85444210
