Siemens 6XV1840-2AN50 SIMATIC NET IE FC TP Standard Cable GP 2x2 CAT5E 50 m Industrial Network Cable

% $-117.24
Siemens 6XV1840-2AN50 IE FC TP Standard Cable CAT5E Industrial Network Cable – 50 m, PROFINET
Siemens 6XV1840-2AN50 IE FC TP Standard Cable CAT5E Industrial Network Cable – 50 m, PROFINET

Siemens 6XV1840-2AN50 SIMATIC NET IE FC TP Standard Cable GP 2x2 CAT5E 50 m Industrial Network Cable

Brand: Siemens
Reference No: 6XV1840-2AN50
Catalog No: 6XV1840-2AN50
Series: SIMATIC NET
Tariff Code (HS): 85444920
Rated Voltage: 80 V
Communication: PROFINET, Industrial Ethernet (100BaseTX), PoE/PoE+
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$117.24

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6XV1840-2AN50 is a SIMATIC NET IE FC TP Standard Cable GP 2x2 for PROFINET Type A, a CAT5E four-wire shielded cable supplied as a 50 m reel with FastConnect termination. It supports PoE and PoE+ over its 100 Ω data pairs, keeps attenuation under 0.195 dB/m at 100 MHz, and is rated for continuous duty from -40 to +75°C.

Technical Specifications

SKU 6XV1840-2AN50
Brand Siemens
Series SIMATIC NET
EAN 4019169856379
Country of Origin SK
Product Type Designation IE FC TP Standard Cable GP 2x2 (Type A)
Product Description Standard bus cable (4 wires), preferred length, not assembled
Suitability for Use Standard cable with rigid cores for fast installation
Cable Designation SF/UTP, 2YY (ST) CY 2x2x0,64/1,5-100 GN
Cable Length 50 m
Attenuation at 10 MHz (max) 0.052 dB/m
Attenuation at 100 MHz (max) 0.195 dB/m
Impedance at 1-100 MHz 100 Ω
Impedance Tolerance at 1-100 MHz 15%
Near-End Crosstalk per Length at 1-100 MHz 0.5 dB/m
Transfer Impedance per Length at 10 MHz 10 mΩ/m
Loop Resistance per Length (max) 115 mΩ/m
Operating Voltage (RMS) 80 V
NVP 69%
Electrical Cores 4

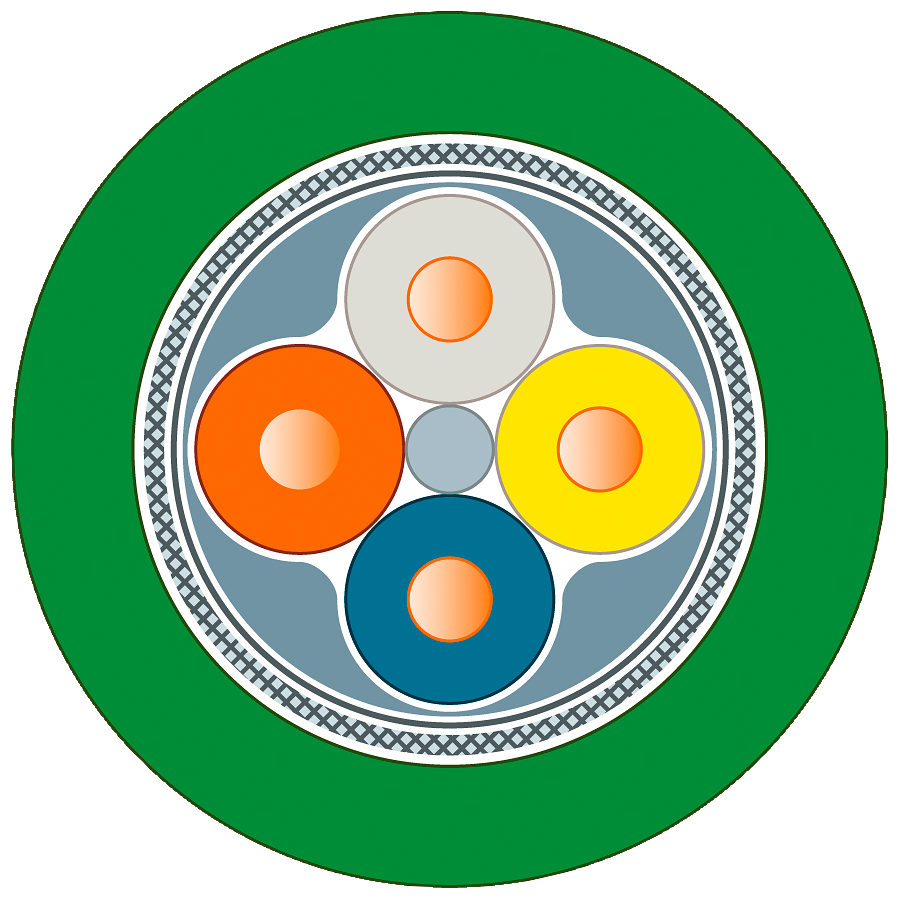

Shield Design SF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires
FastConnect Termination Yes
AWG22 Conductor Core Diameter 0.64 mm
Inner Conductor Diameter 0.64 mm
Wire Insulation Diameter 1.5 mm
Inner Sheath Diameter 3.9 mm
Cable Sheath Diameter 6.5 mm
Cable Sheath Diameter Tolerance 0.2 mm
Wire Insulation Material polyethylene (PE)
Inner Sheath Material PVC
Cable Sheath Material PVC
Data Wire Insulation Color white/yellow/blue/orange
Cable Sheath Color green
Bending Radius, Single Bend (min) 19.5 mm
Bending Radius, Multiple Bends (min) 49 mm
Tensile Load (max) 150 N
Weight per Length 61 kg/km
Net Weight 3.05 kg
Ambient Temperature, Operation -40 to +75°C
Ambient Temperature, Storage -40 to +75°C
Ambient Temperature, Transport -40 to +75°C
Ambient Temperature, Installation -40 to +60°C
Electrical Properties Measured At 20°C
Fire Behavior flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4)
Burning Behavior Class (EN 13501-6) Eca
Chemical Resistance, Mineral Oil oil resistant according to IEC 60811-2-1 (4h/70°C)
Chemical Resistance, Grease Conditional resistance
Chemical Resistance, Water conditional resistance
UV Resistance resistant
PoE Capability Yes
PoE+ Capability Yes
Silicon-Free Yes
Max Length, 100BaseTX (Industrial Ethernet) 100 m
Test Voltage AC, Core-to-Core 2000 V
Test Voltage AC, Core-Shield 2000 V
UL/ETL Listing (300 V) c(ETL)us / CMG / (ETL)us PLTC/ITC / Sun Res
UL/ETL Style (600 V) cRUus AWM 21694 AWM I A/B 60°C 600V FT2
Structured Cabling Standard Cat5e
Air Pollution Resistance (ANSI/ISA-71.04) G3
GWP Total (CO2eq) 0.9 kg
GWP Manufacturing (CO2eq) 0.81 kg
GWP Operation (CO2eq) 0.02 kg
GWP End of Life (CO2eq) 0.07 kg

Certifications & Standards

  • EAC
  • CE
  • RoHS
  • EPD

Selection Notes

At 50 m this reel still fits within the 100 m maximum for a 100BaseTX Industrial Ethernet segment, so a single PROFINET Type A run reaches most field devices without a splice or switch in the middle. PoE+ delivery over the same four cores removes the need for a separate power cable to the end device. Use the 20 m variant for short cabinet runs or the 200 m variant when the route must be cut into multiple shorter segments.

Technical Details

Short Description
SIMATIC NET IE FC TP Standard cable, CAT5E, 50 m, PoE/PoE+, FastConnect termination.
Rated Voltage (VAC)
80 V
Catalog No
6XV1840-2AN50
Standards
EAC approval, CE marking, RoHS conformity, Environmental Product Declaration
Delivery Date (Days)
10-15 days
Model Number
6XV1840-2AN50
Tariff Code
85444920
