Siemens 6XV1830-0EN20 SIMATIC NET PROFIBUS FC Standard Cable 20 m Industrial Network Cable

% $-43.26
Siemens 6XV1830-0EN20 PROFIBUS FC Standard Cable Industrial Network Cable – 20 m, FastConnect
Siemens 6XV1830-0EN20 PROFIBUS FC Standard Cable Industrial Network Cable – 20 m, FastConnect

Siemens 6XV1830-0EN20 SIMATIC NET PROFIBUS FC Standard Cable 20 m Industrial Network Cable

Brand: Siemens
Reference No: 6XV1830-0EN20
Catalog No: 6XV1830-0EN20
Series: SIMATIC NET
Tariff Code (HS): 85444920
Rated Voltage: 80 V
Communication: PROFIBUS DP
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$43.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6XV1830-0EN20 is a SIMATIC NET PROFIBUS FC Standard bus cable, a two-wire shielded design supplied as a 20 m reel for FastConnect termination. It holds a 150 Ω rated impedance and 80 V RMS operating voltage, and its aluminum-clad foil plus braided copper-wire shield keeps it rated for continuous duty from -40 to +75°C.

Technical Specifications

SKU 6XV1830-0EN20
Brand Siemens
Series SIMATIC NET
EAN 4019169400329
Country of Origin SK
Product Type Designation PROFIBUS FC Standard Cable GP
Product Description Standard bus cable (2 wires), preferred length, not assembled
Suitability for Use Standard cable specially designed for fast, permanent installation
Cable Designation 02YSY (ST) CY 1x2x0,64/2,55-150 VI KF 40 FR
Cable Length 20 m
Attenuation at 9.6 kHz (max) 0.0025 dB/m
Attenuation at 38.4 kHz (max) 0.004 dB/m
Attenuation at 4 MHz (max) 0.022 dB/m
Attenuation at 16 MHz (max) 0.042 dB/m
Impedance (rated) 150 Ω
Impedance at 9.6 kHz 270 Ω
Impedance at 38.4 kHz 185 Ω
Impedance at 3-20 MHz 150 Ω
Impedance Tolerance at 9.6 kHz 10%
Impedance Tolerance at 38.4 kHz 10%
Impedance Tolerance at 3-20 MHz 10%
Loop Resistance per Length (max) 110 mΩ/m
Shield Resistance per Length (max) 9.5 Ω/km
Capacitance per Length at 1 kHz 28.5 pF/m
Operating Voltage (RMS) 80 V
Electrical Cores 2

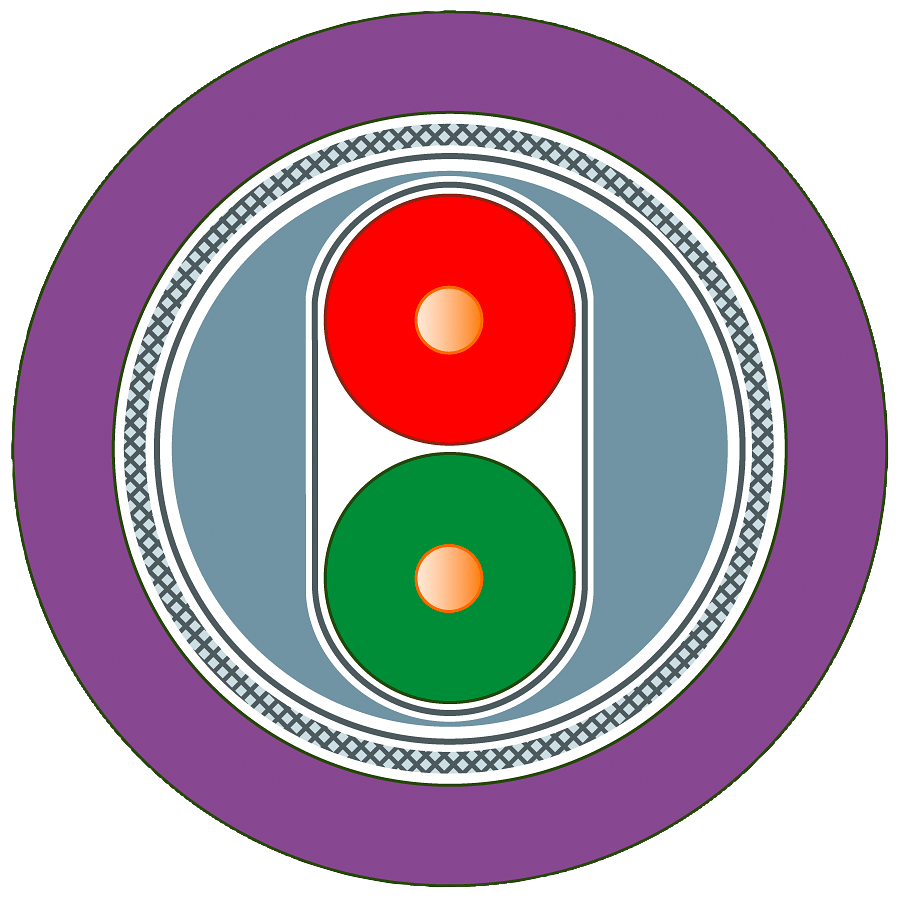

Shield Design Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
FastConnect Termination Yes
Inner Conductor Diameter 0.65 mm
Wire Insulation Diameter 2.55 mm
Inner Sheath Diameter 5.4 mm
Cable Sheath Diameter 8 mm
Cable Sheath Diameter Tolerance 0.4 mm
Wire Insulation Material polyethylene (PE)
Inner Sheath Material PVC
Cable Sheath Material PVC
Data Wire Insulation Color red/green
Cable Sheath Color Violet
Bending Radius, Single Bend (min) 37.5 mm
Bending Radius, Multiple Bends (min) 75 mm
Tensile Load (max) 100 N
Weight per Length 78 kg/km
Net Weight 1.66 kg
Ambient Temperature, Operation -40 to +75°C
Ambient Temperature, Storage -40 to +75°C
Ambient Temperature, Transport -40 to +75°C
Ambient Temperature, Installation -40 to +75°C
Electrical Properties Measured At 20°C
Fire Behavior flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4)
Burning Behavior Class (EN 13501-6) Eca
Chemical Resistance, Mineral Oil oil resistant according to IEC 60811-2-1 (4h/70°C)
Chemical Resistance, Grease Conditional resistance
Chemical Resistance, Water conditional resistance
UV Resistance resistant
Silicon-Free Yes
UL/ETL Listing (300 V) c(ETL)us, CMG / (ETL)us CL3 / Sun Res
UL/ETL Style (600 V) cRUus AWM 21694 AWM I A/B 60°C 600V FT2
Air Pollution Resistance (ANSI/ISA-71.04) G3
GWP Total (CO2eq) 0.92 kg
GWP Manufacturing (CO2eq) 0.8 kg
GWP Operation (CO2eq) 0.02 kg
GWP End of Life (CO2eq) 0.1 kg

Certifications & Standards

  • EAC
  • CE
  • UL
  • RoHS
  • EPD

Selection Notes

At 20 m this reel is sized for a single cabinet-to-cabinet or panel-internal PROFIBUS DP run, so the full length lands in one FastConnect termination without a mid-run splice. Attenuation stays under 0.042 dB/m even at 16 MHz, leaving margin for the short segment. Move up to the 50 m or longer variant when the segment spans separate panels or floors.

Technical Details

Short Description
SIMATIC NET PROFIBUS FC Standard bus cable, 20 m, 150 ohm, FastConnect termination.
Rated Voltage (VAC)
80 V
Catalog No
6XV1830-0EN20
Standards
EAC approval, CE marking, UL approval, RoHS conformity, Environmental Product Declaration
Delivery Date (Days)
10-15 days
Model Number
6XV1830-0EN20
Tariff Code
85444920
