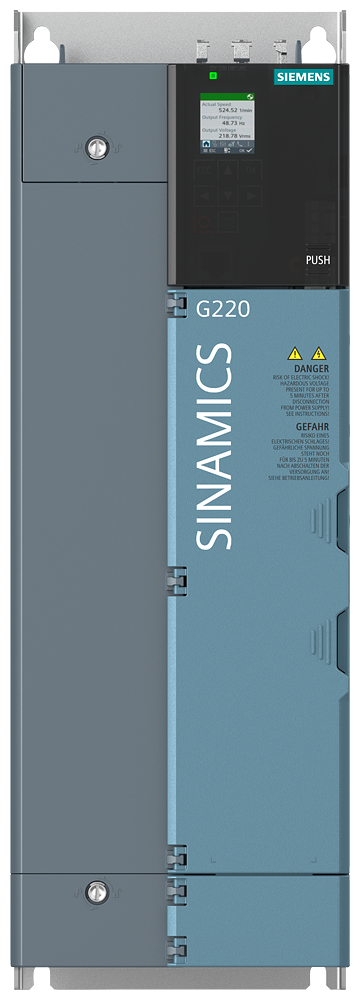

Siemens 6SL4113-0CA20-0AF0 SINAMICS G220 380-500V 18.5kW FSD1 Variable Frequency Drive

The Siemens 6SL4113-0CA20-0AF0 is a SINAMICS G220 variable frequency drive rated 18.50 kW under the low-overload duty profile or 15.00 kW under the high-overload profile, for 380...415V / 440...500V (-20/+10 %) three-phase supplies at 50/60 Hz (47...63 Hz). Built in frame size FSD1 (400 x 150 x 245 mm) with IP20 / UL open type protection, it includes an integrated braking chopper, SIL3 safety functions, and PROFINET/Modbus TCP communication.

Technical Specifications

Selection Notes

Choose the low-overload (LO) 18.5 kW rating for variable-torque loads such as pumps and fans that only need 150% overload for 3 s and 110% for the remaining 57 s of the 300 s cycle. Pick the 15 kW high-overload (HO) rating instead for constant-torque loads such as conveyors or mixers, since HO trades continuous power for a deeper 200%/3 s and 150%/57 s overload margin. Frame FSD1 is the smaller of the two frame sizes used across this power step, so confirm panel clearance before stepping up to a higher-power sibling in the next frame size.

Applications

Sizes pumps, fans, compressors and other variable-torque centrifugal loads at the low-overload rating, or conveyors, mixers and constant-torque machinery at the high-overload rating, on PROFINET or Modbus TCP networks without an external fieldbus module.
