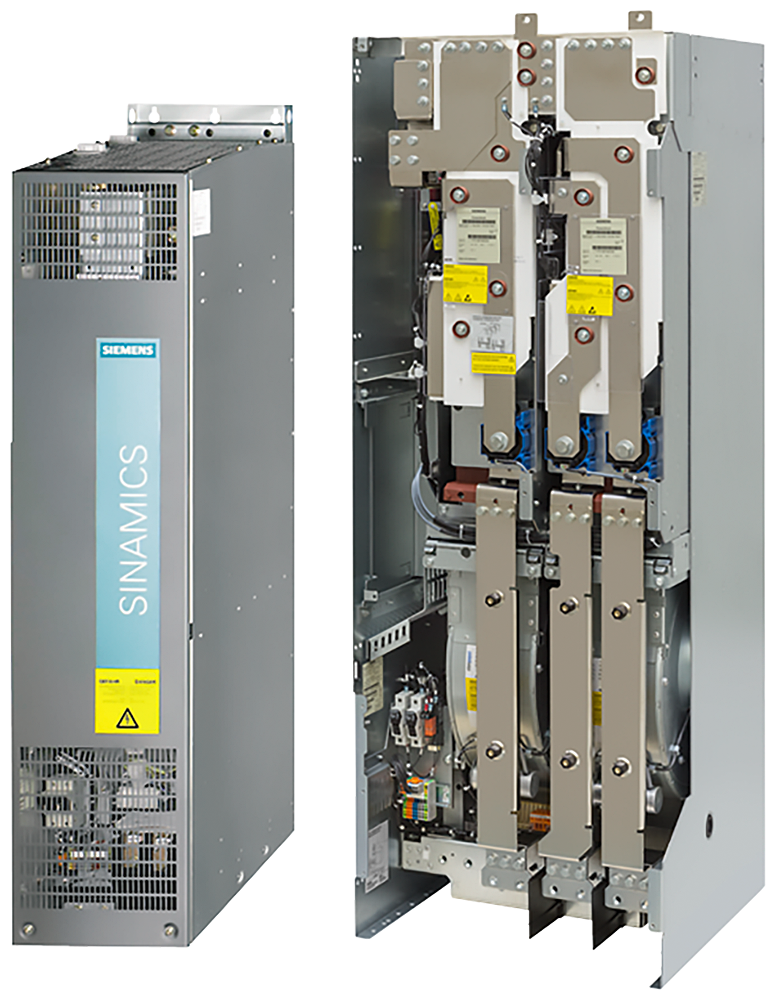

Siemens 6SL3310-1GH38-1AA3 SINAMICS G130 Power Module 800kW 810A 660-690V VFD Power Module

The Siemens 6SL3310-1GH38-1AA3 is a SINAMICS G130 Power Module rated 800 kW at 810 A for a 660-690V 3AC, 50/60 Hz supply. It uses a 6-pulse, non-regenerative line supply in the CIM design and includes an integrated Drive-CLiQ cable; the IP00 enclosure and 530.0 kg weight place it in the chassis power range. A separate SINAMICS control unit is required to complete the drive.

Technical Specifications

Selection Notes

At 800 kW / 810 A, this Power Module sits at the upper end of the SINAMICS G130 chassis range covered by this pair of ratings, and it pairs with a separate SINAMICS control unit rather than a built-in one, so the control unit and any line or motor reactors are ordered as separate line items. The 6-pulse, non-regenerative supply passes current only from line to motor: braking energy from the driven load must be handled with a braking unit and resistor or a regenerative line module, not fed back into the supply. Choose the higher-power variant in this Power Module series instead if the driven motor's nameplate current exceeds this module's 810 A rating.
