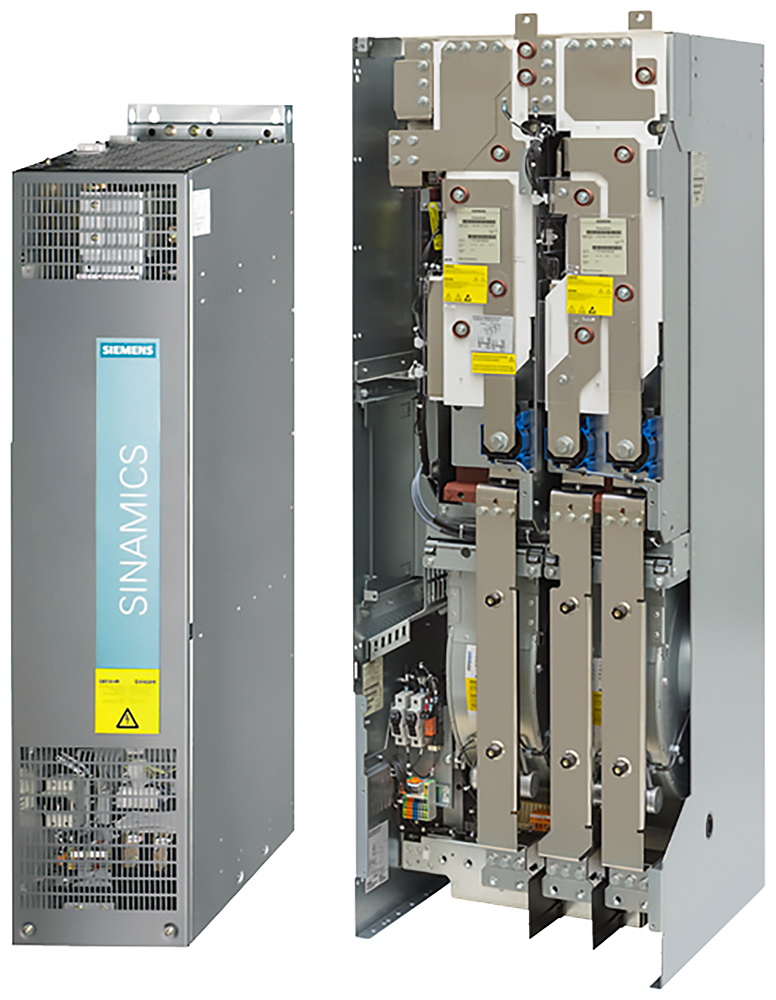

SINAMICS G130Siemens 6SL3310-1GH28-5AA3 SINAMICS G130 CIM 660-690V 3AC 85A 75kW VFD Power Module
Siemens SINAMICS G130 power module, CIM design, 85A at 660-690V 3AC, 75kW type rating, IP20 FSF.
Description
About the 6SL3310-1GH28-5AA3
About the 6SL3310-1GH28-5AA3
The Siemens 6SL3310-1GH28-5AA3 is a SINAMICS G130 power module in CIM design, FSF frame, rated 85 A at 660-690V 3AC, 50/60 Hz, for a 75 kW type rating. It uses a 6-pulse supply without power recovery and includes a Drive-CLiQ cable; the control module is ordered separately. IP20 protection degree, 104.0 kg net weight, manufactured in Germany.
Selection Notes
This is the 660-690V line-voltage variant of the G130 CIM range, built for higher-voltage supplies rather than the 380-480V modules in the 6SL3310-1GE3 line; do not mix it with those on a shared 400V bus. At 85 A / 75 kW it is the entry point of the 690V G130 range shown here, in the same FSF frame used by higher-current 380-480V modules. As with the 380-480V units, the 6-pulse, non-regenerative supply means braking energy must be dissipated through a braking module or resistor, and the control module is a separate order item sized to the same current class.
Specification
Full specification
Rated data 21
| Input: Supply frequency | 47…63 Hz |
|---|---|
| Input: Supply voltage | 690 V ±10 % |
| Input: Rated input current | 93 A |
| Input: Max. current | 131 A |
| Input: Pulse number | 6 |
| Input: Energy recovery capability | No / (2Q) |
| Output: Output voltage | 690 V |
| Output: Rated power (LO) in kW | 75 kW |
| Output: Rated power (HO) in kW | 55 kW |
| Output: Rated output current | 85 A |
| Output: Rated output current (LO) | 80 A |
| Output: Rated output current (HO) | 76 A |
| Output: Output current Max | 120 A |
| Output: Pulse frequency (factory setting) | 1.25 kHz |
| Basic data: Power losses ∆P | 1.44 kW |
| Basic data: Sound pressure level LpA (1 m) | 64 dB |
| Basic data: Conductor cross section, max. (IEC) | 4 x 240 mm² |
| Basic data: Degree of protection | IP20 |
| Basic data: Dimensions (H x W x D) | 1,400 mm x 326 mm x 356 mm |
| Basic data: Weight approx. | 104 kg |
| Basic data: Frame size | FX |
Environmental conditions 4
| Installation altitude | 1,000 m |
|---|---|
| Coolant | Air |
| Coolant requirement, air | 0.17 m³/s |
| Ambient temperature | 0 °C - +40 °C |
Converter losses to IEC61800-9-2* 6
| Efficiency class | IE2 |
|---|---|
| Comparison with the reference converter (90% / 100%) | 30.4 % |
| I: 1,120.0 W (1.10 %) | 1,260.0 W (1.20 %) / 1,440.0 W (1.40 %) |
| 100 %: 724.0 W (0.70 %) | 779.0 W (0.80 %) / 847.0 W (0.80 %) |
| 50 %: 591.0 W (0.60 %) | 617.0 W (0.60 %) |
| 25 %: 50 % | 90 % / f |
Show all 42 specifications ↓ Show less ↑11 more values in Identification, Special design, Logistics.
Identification 5
| Part number | 6SL3310-1GH28-5AA3 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
Special design 2
| Supplementary system components | 6SL30401GA011AA0 - Control Unit Kit CU320-2 PN (PROFINET, EtherNet/IP) |
|---|---|
| Supplementary system components: Page 1 of 1 | Generated Sun Nov 1 01:54:25 CET 2026 |
Logistics 4
| Shipping weight | 124.0 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6SL3310-1GH28-5AA3
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6SL3310-1GH28-5AA3
What is the rated current of 6SL3310-1GH28-5AA3?
The rated current of 6SL3310-1GH28-5AA3 is 85 A.
Which supply voltage is 6SL3310-1GH28-5AA3 rated for?
The rated operational voltage of 6SL3310-1GH28-5AA3 is 660–690 V AC.
What motor power is 6SL3310-1GH28-5AA3 rated for?
The rated motor power of 6SL3310-1GH28-5AA3 is 75 kW.
What is the HS code of 6SL3310-1GH28-5AA3 for customs?
The tariff (HS) code on file for 6SL3310-1GH28-5AA3 is 85044095.
Where does 6SL3310-1GH28-5AA3 ship from, and how fast?
6SL3310-1GH28-5AA3 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
