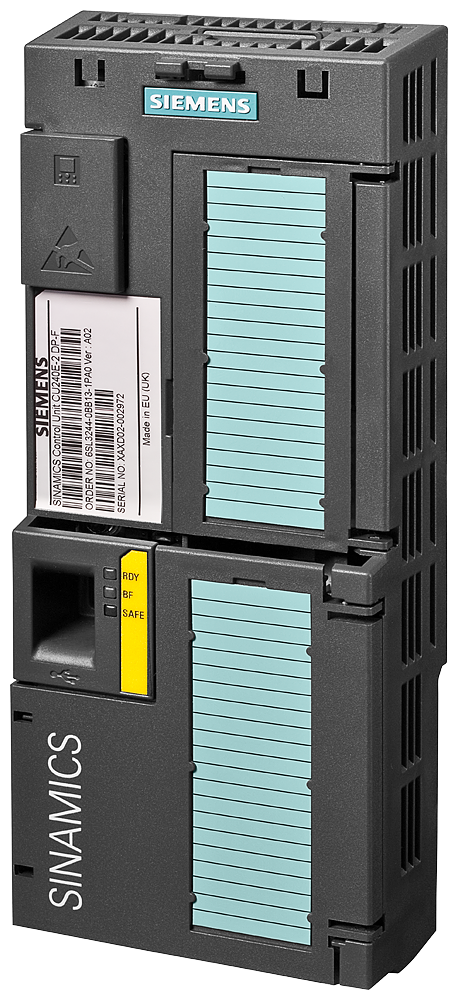

Siemens 6SL3244-0BB13-1FA0 SINAMICS G120 CU240E-2 PN-F Control Unit

The Siemens 6SL3244-0BB13-1FA0 is a SINAMICS G120 CU240E-2 PN-F control unit with an integrated PROFINET interface and Safety Integrated F-type functions (STO, SS1, SLS, SSM, SDI). It provides 6 digital inputs, 3 digital outputs, 2 analog inputs, 2 analog outputs, and up to 3 fail-safe digital inputs, plus a PTC/KTY motor temperature interface. It draws a maximum 0.50 A / 5.50 W from a 20-29 V DC external 24 V supply and weighs 0.49 kg in an IP20 enclosure.

Technical Specifications

Selection Notes

The "F" in this control unit's designation is the deciding factor over a base CU240E-2 PN: it adds STO, SS1, SLS, SSM and SDI Safety Integrated functions and up to 3 fail-safe digital inputs, so specify it when the drive itself must implement a safety function (e.g. safely limited speed for a guard door) rather than relying on an external safety relay. It ships without a Power Module - it must be paired with a compatible SINAMICS G120 power stage sized to the motor. Sensorless vector and encoderless torque control cover most general-purpose applications without an encoder feedback cable; if closed-loop encoder feedback is required, a different CU240E-2 variant with an encoder interface is needed.

Applications

Controls SINAMICS G120 modular drives on machines needing PROFINET connectivity plus a drive-integrated safety function, such as guarded conveyor sections, mixers, and fans with speed-related safety requirements.
