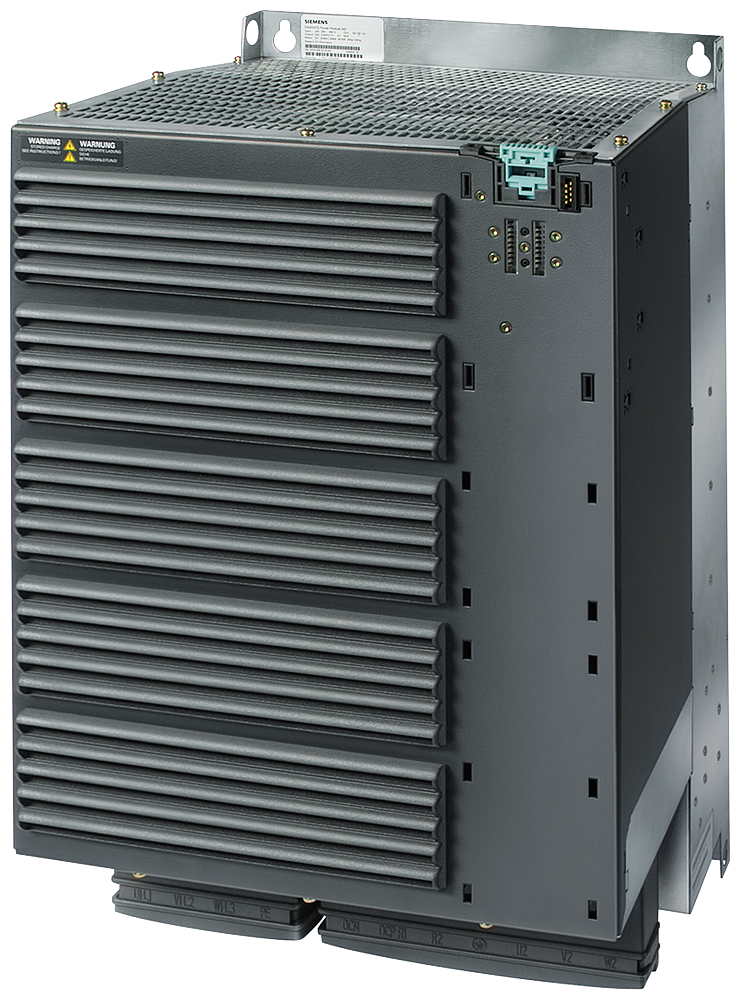

Siemens 6SL3225-0BE35-5AA0 SINAMICS G120 PM250 IP20 FSF 400V 55kW Power Module

The Siemens 6SL3225-0BE35-5AA0 is a SINAMICS G120 PM250 power module rated 55 kW high overload / 75 kW light overload at 3AC 380-480V, IP20 FSF frame. It includes a built-in Class A EMC filter and supports regenerative operation within the G120 modular drive system, with 220 A max output current at 4 kHz pulse frequency. The control unit and BOP operator panel are ordered separately.

Technical Specifications

Selection Notes

At 55 kW HO / 75 kW LO, this is the mid-range FSF-frame PM250, positioned between the 45 kW and 75 kW variants and sharing the 934 x 350 x 316 mm / 52.0 kg FSF footprint with both. Choose it over the 45 kW module when the HO nameplate current exceeds 90 A output, and over the 75 kW module when the load stays within 220 A max output current and the 150%/3s, 110%/57s HO overload profile. The built-in Class A filter keeps conducted EMC emissions within first-environment limits, and the module supports regenerative operation when paired with a regen-capable Control Unit.
