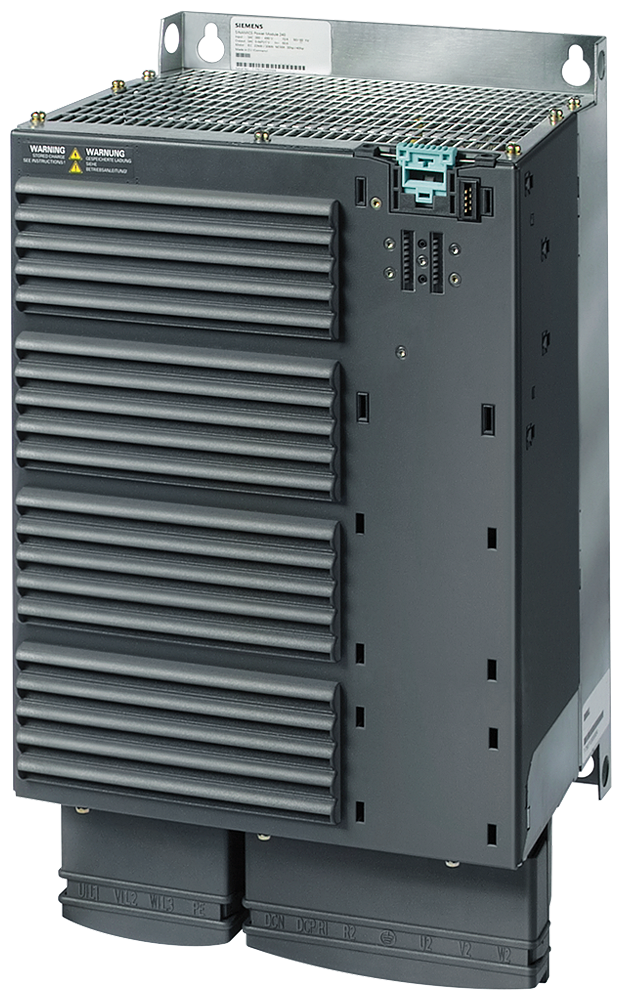

Siemens 6SL3225-0BE33-0AA0 SINAMICS G120 PM250 FSE 30kW 400V VFD Power Module

The Siemens 6SL3225-0BE33-0AA0 is a SINAMICS G120 Power Module PM250 in frame FSE with an integrated Class A EMC filter and energy-recovery capability, rated 380-480V 3AC input at 47-63Hz. Low-overload power is 37.00kW and high-overload power 30.00kW, with a maximum output current of 120.00A and IP20 protection without control unit fitted.

Technical Specifications

Selection Notes

The FSE frame is the largest PM250 in this set, with a 56.00A rated HO input current and 120.00A maximum output current well above the FSD modules' range - use it once continuous torque exceeds what an FSD module supports on a 380-480V supply. Class A filter and energy-recovery capability match the rest of the PM250 line, so braking energy still returns to the supply instead of heating a resistor.

Applications

Used as the power stage of a SINAMICS G120 drive for large pumps, fans, and hoists on a 380-480V three-phase supply where regenerative braking reduces resistor heat load. Pairs with a matching Control Unit and BOP display.
