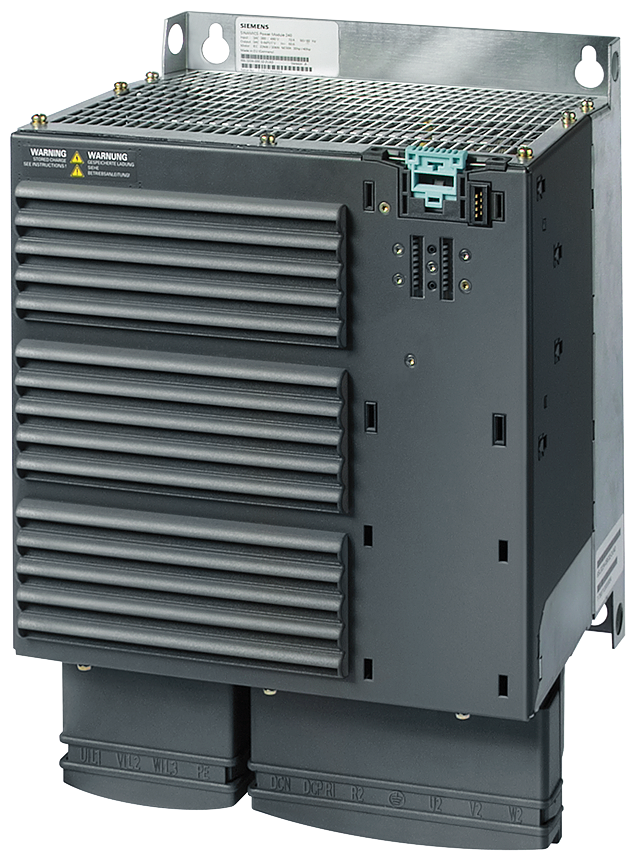

Siemens 6SL3225-0BE32-2AA0 SINAMICS G120 PM250 FSD 22kW 400V VFD Power Module

The Siemens 6SL3225-0BE32-2AA0 is a SINAMICS G120 Power Module PM250 in frame FSD with an integrated Class A EMC filter and energy-recovery capability, rated 380-480V 3AC input at 47-63Hz. Low-overload power is 30.00kW and high-overload power 22.00kW, with a maximum output current of 90.00A and IP20 protection without control unit fitted.

Technical Specifications

Selection Notes

At 42.00A rated HO input current and 90.00A maximum output, this FSD module sits above the 18.5kW variant in the same frame - pick it once continuous torque runs closer to the FSD frame's upper range rather than its entry point. Class A filter and energy-recovery capability match the rest of the PM250 line, returning braking energy to the supply instead of a resistor.

Applications

Used as the power stage of a SINAMICS G120 drive for larger pumps, fans, and hoists on a 380-480V three-phase supply where regenerative braking reduces resistor heat load. Pairs with a matching Control Unit and BOP display.
