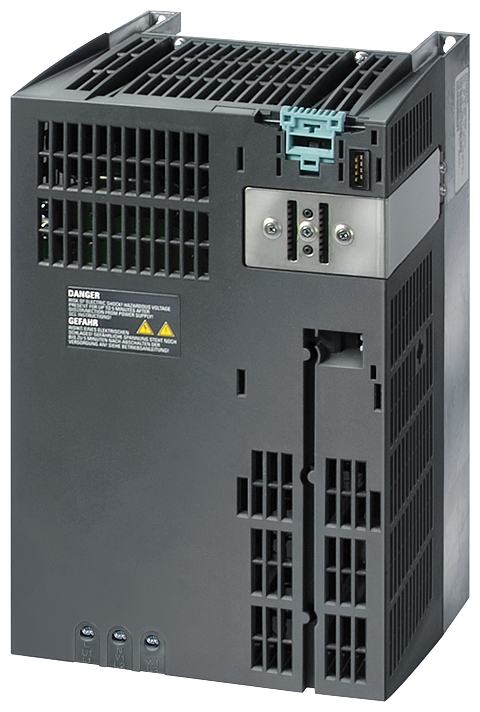

Siemens 6SL3225-0BE27-5AA1 SINAMICS G120 PM250 FSC 7.5kW 400V VFD Power Module

The Siemens 6SL3225-0BE27-5AA1 is a SINAMICS G120 Power Module PM250 in frame FSC with an integrated Class A EMC filter and energy-recovery capability, rated 380-480V 3AC input at 47-63Hz. Low-overload power is 11.00kW and high-overload power 7.50kW, with a maximum output current of 38.00A and IP20 protection without control unit fitted.

Technical Specifications

Selection Notes

The Class A filter and energy-recovery capability distinguish this PM250 from a PM240-2 of similar power - braking energy is returned to the supply rather than dissipated in a resistor, relevant for hoists, centrifuges, and other frequently decelerating loads. At 11.00kW (LO) / 7.50kW (HO) with a 19.00A rated HO current and 38.00A maximum output, it sits above the 5.5kW FSC variant in the same frame - pick it once the driven load's continuous torque exceeds what the smaller module supports.

Applications

Used as the power stage of a SINAMICS G120 drive for fans, pumps, and hoists on a 380-480V three-phase supply where regenerative braking reduces resistor heat load. Pairs with a matching Control Unit and BOP display; screw-type terminals are fitted as standard.
