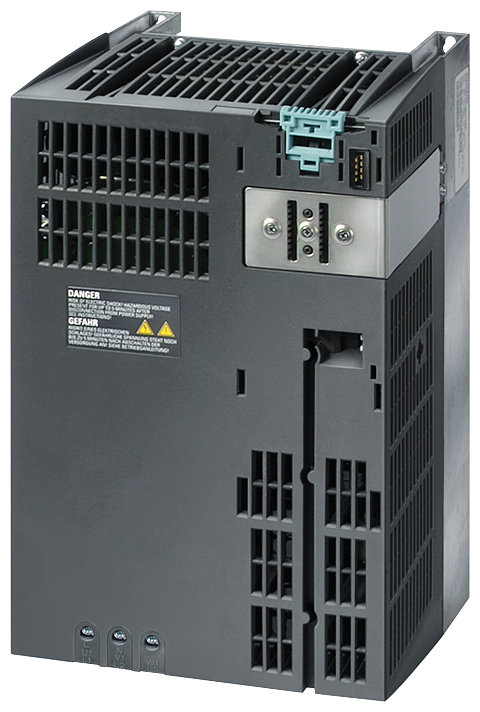

Siemens 6SL3225-0BE25-5AA1 SINAMICS G120 PM250 FSC 5.5kW 400V VFD Power Module

The Siemens 6SL3225-0BE25-5AA1 is a SINAMICS G120 Power Module PM250 in frame size FSC with an integrated Class A EMC filter and energy-recovery capability, rated 380-480V 3AC input at 47-63Hz. Low-overload power is 7.50kW and high-overload power 5.50kW, with a maximum output current of 26.40A and IP20 protection without control unit fitted.

Technical Specifications

Selection Notes

The integrated Class A filter and energy-recovery capability set the PM250 apart from a PM240-2 of similar power - braking energy returns to the supply instead of heating a resistor, which matters for hoists, centrifuges, and other frequently decelerating loads. At 7.50kW (LO) / 5.50kW (HO) with an 18.00A rated LO current, this is the smallest FSC-frame PM250 in the range; step up to the next current rating once continuous torque exceeds what this module supports.

Applications

Used as the power stage of a SINAMICS G120 drive for fans, pumps, and small hoists on a 380-480V three-phase supply where regenerative braking reduces resistor heat load. Pairs with a matching Control Unit and BOP display; screw-type terminals are fitted as standard.
