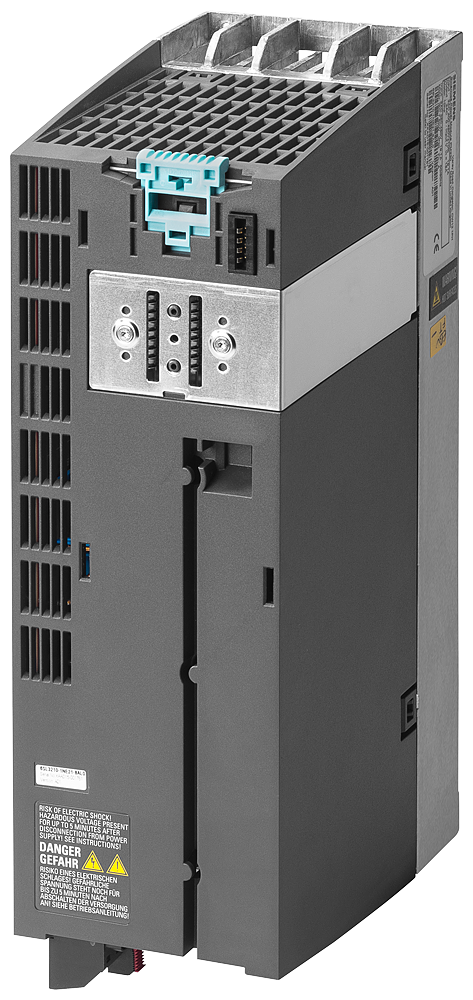

Siemens 6SL3210-1PE18-0UL1 SINAMICS PM240-2 380-480V 3kW FSA IP20 VFD Power Module

The Siemens 6SL3210-1PE18-0UL1 is a SINAMICS PM240-2 power module in frame size FSA with an integrated braking chopper, rated 380-480 V 3 AC, 47-63 Hz. Low-overload power is 3.00 kW and high-overload power is 2.20 kW, with a maximum output current of 11.80 A and IP20 protection without control unit.

Technical Specifications

Selection Notes

The high-overload (HO) rating of 2.20 kW at up to 200% for 3 s covers punch, cutting, or press-type loads with brief torque spikes, while the low-overload (LO) 3.00 kW rating with only 150% for 3 s fits centrifugal pumps and fans with steady loading - pick the duty class that matches the load profile rather than the higher kW number by default. The integrated braking chopper drives an external braking resistor directly for fast-decelerating loads without an add-on braking module. As a Power Module rather than a Control Unit, it requires a matching CU (e.g. CU230P-2 or CU240E-2) to form a complete SINAMICS G120 drive.

Applications

Variable-speed control of 3-phase induction motors up to 3 kW (LO) or 2.2 kW (HO) on 380-480 V supplies, in modular SINAMICS G120 drive assemblies for pumps, fans, and general machine axes.
