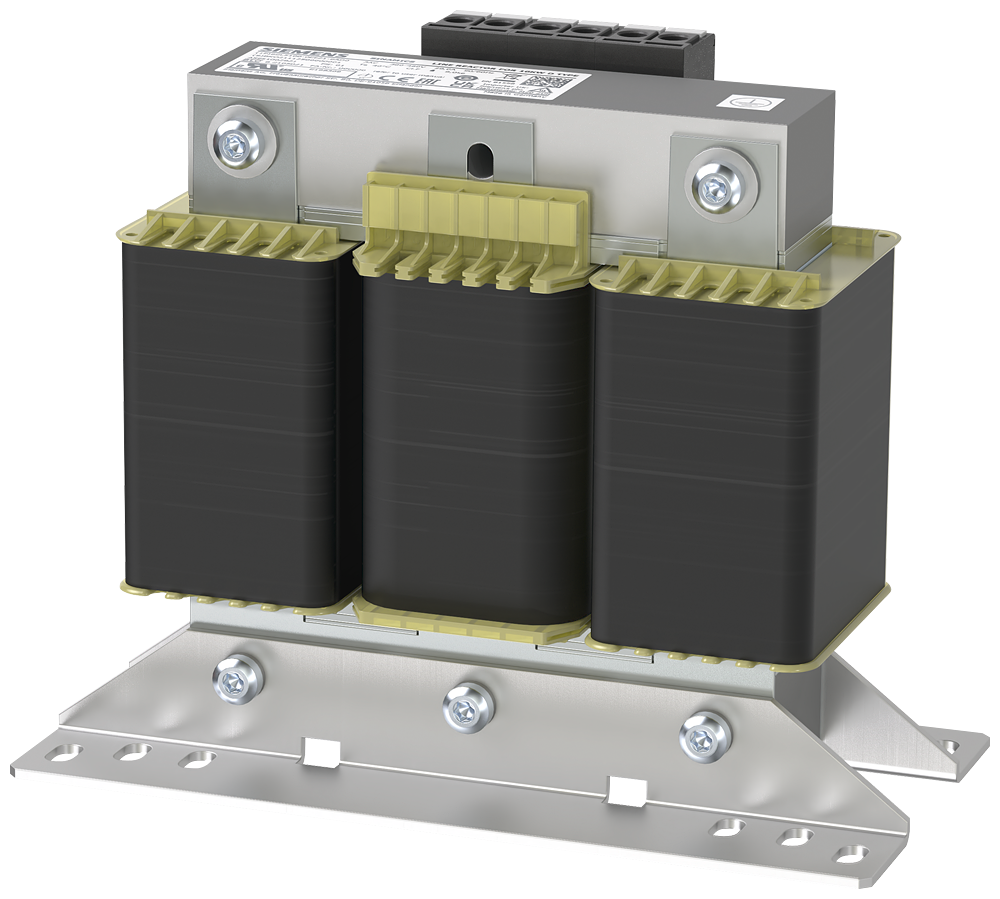

SINAMICS S120Siemens 6SL3100-0EE21-6AA0 SINAMICS S120 Line Reactor for 16kW Combi Line Module 380-480V VFD Reactor
SINAMICS S120 line reactor for 16kW Combi Line Module, 3AC 380-480V, 50/60Hz, 10.7kg
Description
About the 6SL3100-0EE21-6AA0
About the 6SL3100-0EE21-6AA0
The Siemens 6SL3100-0EE21-6AA0 is a SINAMICS S120 line reactor sized for the 16 kW Combi Line Module, rated for a 3-phase AC input of 380-480 V at 50/60 Hz. It has screw-type terminals accepting 10.00 mm squared conductors, measures 219 x 176 x 120 mm, and weighs 10.7 kg.
Selection Notes
This reactor is matched to the 16 kW Smart Line Module frame size, not selected independently by current rating - pairing it with a different SLM power rating in the same Combi Line Module family requires the corresponding line reactor sized for that module. The 380-480 V input range covers standard three-phase supplies without a separate low-voltage variant, and the screw-type terminals with 10 mm squared conductor capacity set the maximum field wiring gauge for the installation.
Applications
Line-side harmonic reduction and commutation reactance ahead of a 16 kW SINAMICS S120 Combi Line Module in modular multi-axis drive systems.
Specification
Full specification
| Part number | 6SL3100-0EE21-6AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Rated operational voltage | 380–480 V AC |
|---|---|
| Motor power | 16 kW |
| Shipping weight | 10.0 kg |
|---|
| HS code | 85045000 |
|---|---|
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | Low stock |
| Series | SINAMICS S120 |
|---|---|
| Application | Line reactor for 16 kW Combi Line Module (SLM) |
| Number of phases | 3 AC |
| Line voltage | 380 ... 480 V |
| Width | 219.0 mm (8.6 in) |
| Height | 176.0 mm (6.9 in) |
| Depth | 120.0 mm (4.7 in) |
| Net weight | 10.7 kg (23.6 lb) |
| Conductor cross-section | 10.00 mm2 |
| Terminal version | Screw-type terminals |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6SL3100-0EE21-6AA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6SL3100-0EE21-6AA0
Which supply voltage is 6SL3100-0EE21-6AA0 rated for?
The rated operational voltage of 6SL3100-0EE21-6AA0 is 380–480 V AC.
What motor power is 6SL3100-0EE21-6AA0 rated for?
The rated motor power of 6SL3100-0EE21-6AA0 is 16 kW.
What is the HS code of 6SL3100-0EE21-6AA0 for customs?
The tariff (HS) code on file for 6SL3100-0EE21-6AA0 is 85045000.
Where does 6SL3100-0EE21-6AA0 ship from, and how fast?
6SL3100-0EE21-6AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
