- Part number
- 6SL3000-0CE25-5AA0

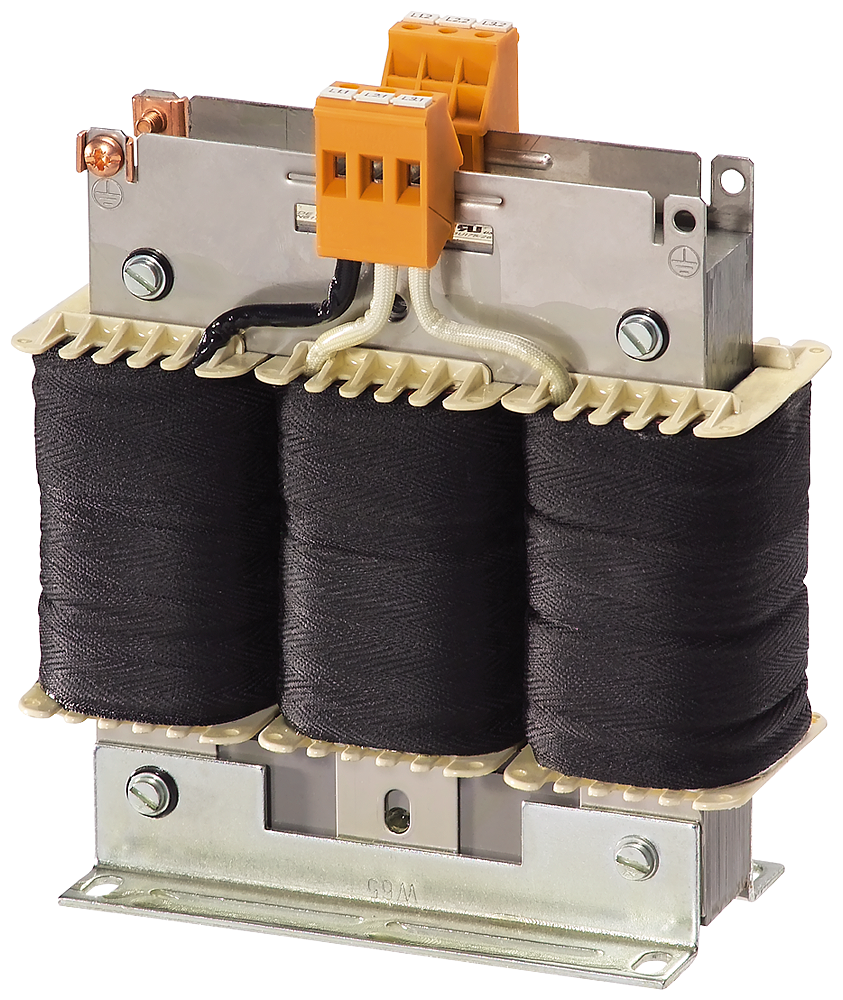

SINAMICS S120Siemens 6SL3000-0CE25-5AA0 SINAMICS S120 Line Reactor 55kW SLM VFD Reactor
SINAMICS S120 line reactor for the 55kW Smart Line Module, 380-480V 3AC, 50/60Hz, 36.0kg.
Description
About the 6SL3000-0CE25-5AA0
About the 6SL3000-0CE25-5AA0
The Siemens 6SL3000-0CE25-5AA0 is a SINAMICS S120 line reactor sized for the 55 kW Smart Line Module, rated for a 3-phase 380-480 V, 50/60 Hz supply. It sits ahead of the module on the mains side, limiting line current harmonics and commutation notching on the rectifier input, and weighs 36.0 kg.
Selection Notes
This reactor is matched by power rating to the 55 kW Smart Line Module, so it must be paired with that module size rather than a different SLM or BLM rating in the S120 line-up; a mismatch leaves the module under- or over-reactored on the mains side. Where the drive uses a Basic Line Module instead of a Smart Line Module, the corresponding BLM-rated reactor in this series is the correct part.
Specification
Full specification
| Part number | 6SL3000-0CE25-5AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Rated operational voltage | 380–480 V AC |
|---|---|
| Motor power | 55 kW |
| Shipping weight | 41.0 kg |
|---|
| HS code | 85045000 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Series | SINAMICS S120 |
|---|---|
| Application | Line reactor for 55 kW Smart Line Module |
| Input Voltage | 380-480 V 3AC |
| Frequency | 50/60 Hz |
| Country of Origin | HU |
| Net Weight | 36.0 kg |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6SL3000-0CE25-5AA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6SL3000-0CE25-5AA0
Which supply voltage is 6SL3000-0CE25-5AA0 rated for?
The rated operational voltage of 6SL3000-0CE25-5AA0 is 380–480 V AC.
What motor power is 6SL3000-0CE25-5AA0 rated for?
The rated motor power of 6SL3000-0CE25-5AA0 is 55 kW.
What is the HS code of 6SL3000-0CE25-5AA0 for customs?
The tariff (HS) code on file for 6SL3000-0CE25-5AA0 is 85045000.
Where does 6SL3000-0CE25-5AA0 ship from, and how fast?
6SL3000-0CE25-5AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
