Siemens 6GT2891-4EH20 SIMATIC RFID RS422 Connecting Cable Wire End M12 2m Cable

% $-143.55
Siemens 6GT2891-4EH20 SIMATIC RFID RS422 cable wire end sleeves to M12 - 2m
Siemens 6GT2891-4EH20 SIMATIC RFID RS422 cable wire end sleeves to M12 - 2m

Siemens 6GT2891-4EH20 SIMATIC RFID RS422 Connecting Cable Wire End M12 2m Cable

Brand: Siemens
Reference No: 6GT2891-4EH20
Catalog No: 6GT2891-4EH20
Series: SIMATIC RFID
Tariff Code (HS): 85444290
Rated Voltage: 300 V
Communication: RS-422
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$143.55

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

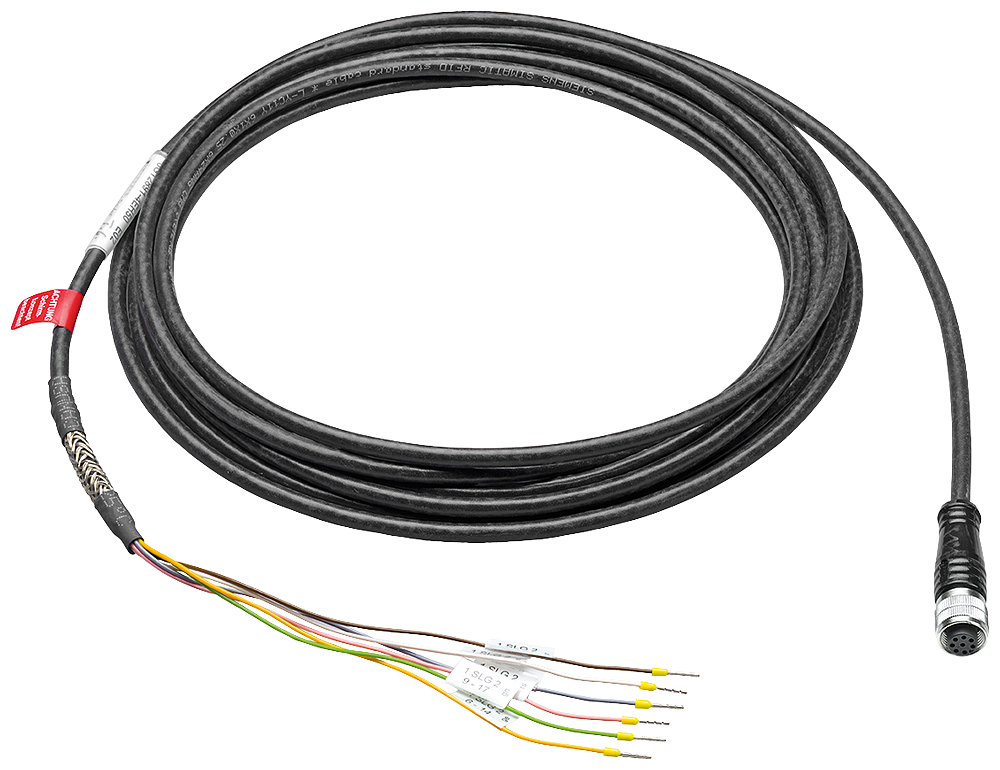

The Siemens 6GT2891-4EH20 is a SIMATIC RFID RS422 connecting cable that wires an RF61xR, RF650R or RF68xR reader to the ASM 475 communication module, or carries its 24 V supply, through labeled wire end sleeves on one side and a straight M12 8-pin female connector on the other. The 6-core cable runs 2 m and carries EAC approval.

Technical Specifications

Catalog No 6GT2891-4EH20
SKU 6GT2891-4EH20
Brand Siemens
Series SIMATIC RFID
Product Type Designation Cable RS422, wire end sleeves / M12
Product Description Highly flexible communication line (6-core)
Suitability for Use Plug-in cable for connecting a reader to the ASM 475 communication module or 24V power supply of the RF61xR, RF650R and RF68xR readers
Cable Designation L-YC11Y 6x1x0.25 6x24AWG CM
Wire Length 2 m
Number of Electrical Connections 2
Type of Electrical Connection Wire end sleeves (labeled) / M12 (female, 8 pin, straight)
Loop Resistance per Length (max) 160 mΩ/m
Insulation Resistance Coefficient 20 GΩ·m
Operating Voltage (max) 300 V
Number of Electrical Cores 6
Shield Design Braided shield made of tin-plated copper wires
Outer Diameter of Cable Sheath 5.4 mm
Outer Diameter Tolerance 0.2 mm
Wire Insulation Material PVC
Cable Sheath Material PUR
Color of Data Wire Insulation DIN 47100
Cable Sheath Color Black
Bending Radius, Single Bend (min) 21.6 mm
Bending Radius, Multiple Bends (min) 43 mm
Bending Radius, Continuous Bending 75 mm
Number of Bending Cycles 3,000,000
Tensile Load (max) 200 N
Weight per Length 45 kg/km
Ambient Temperature, Operation -30 ... +80 °C
Ambient Temperature, Storage -30 ... +80 °C
Ambient Temperature, Transport -30 ... +80 °C
Ambient Temperature, Installation -30 ... +80 °C
Fire Behavior Flame resistant according to IEC 60332-1-2
Burning Behavior Class (EN 13501-6) Eca
Chemical Resistance to Mineral Oil Resistant
Chemical Resistance to Grease Resistant
UV Radiation Resistance Resistant
Silicone-Free Yes
UL/ETL Listing, 300V Rating Yes; CM (cable without plug only)
EAC Approval Yes
General Product Approval EMV
China RoHS Manufacturer Declaration
Country of Origin DE
Net Weight 0.112 kg
EAN 4019169669160

Certifications & Standards

  • EAC

Technical Details

Short Description
SIMATIC RFID RS422 cable, wire end sleeves to M12 8-pin, 2m, EAC approved.
Rated Voltage (VAC)
300 V
Catalog No
6GT2891-4EH20
Standards
EAC approval
Delivery Date (Days)
10-15 days
Model Number
6GT2891-4EH20
Tariff Code
85444290
