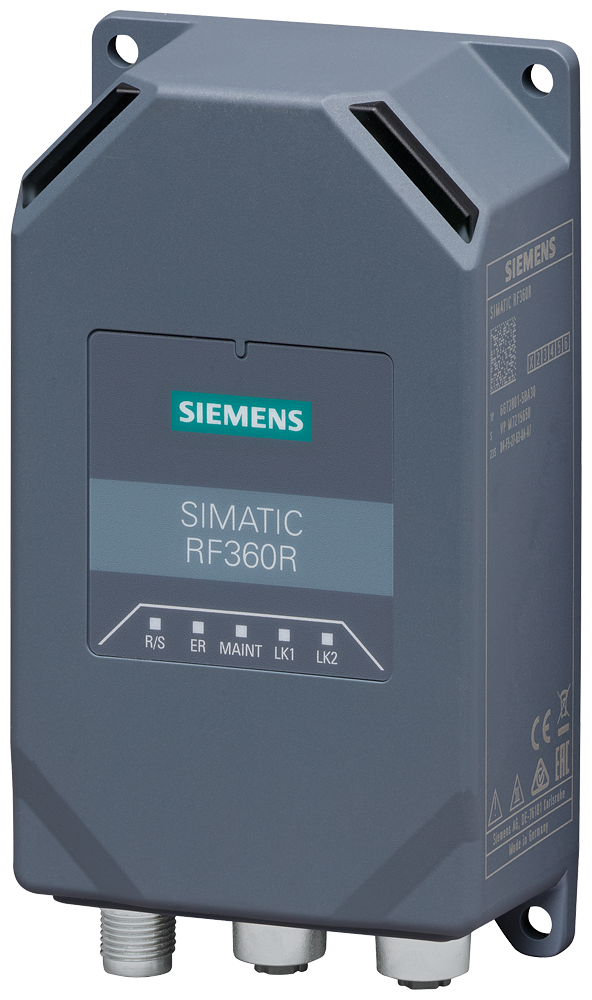

Siemens 6GT2801-5BA30 SIMATIC RF300 Compact Reader RF360R PROFINET Ethernet IP67 RFID Reader

The Siemens 6GT2801-5BA30 is a SIMATIC RF300 RF360R compact RFID reader with a built-in OPC UA server, connecting directly to PROFINET, Ethernet, and EtherNet/IP networks. It reads ISO 15693 transponders at 13.56 MHz without a separate communication module. The IP67-rated housing runs on 24 V DC and supports Media Redundancy Protocol for ring topologies.

Technical Specifications

Certifications & Standards

• EPD

Selection Notes

Because the RF360R integrates an OPC UA server and connects straight to PROFINET or Ethernet, it removes the separate communication module that the RS422-interface readers in the family need - useful where the PLC network already reaches the read point. Media Redundancy Protocol support lets it sit on a ring topology without a single point of failure. The -25 to +55 degC operating range is narrower than the RS422-interface readers, so cabinet cooling matters more in hot environments.

Applications

Suited to PROFINET-based conveyor or sortation lines where the RFID read point can connect straight to the plant network via Ethernet, cutting out a separate interface converter.
