- Part number
- 6GK7543-1MX00-0XE0
- Model no
- TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks.
Siemens has announced the end of 6GK7543-1MX00-0XE0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.
SIMATIC S7-1500Siemens 6GK7543-1MX00-0XE0 SIMATIC NET TIM 1531 IRC SINAUT DNP3 IEC 60870-5 Telecontrol Module

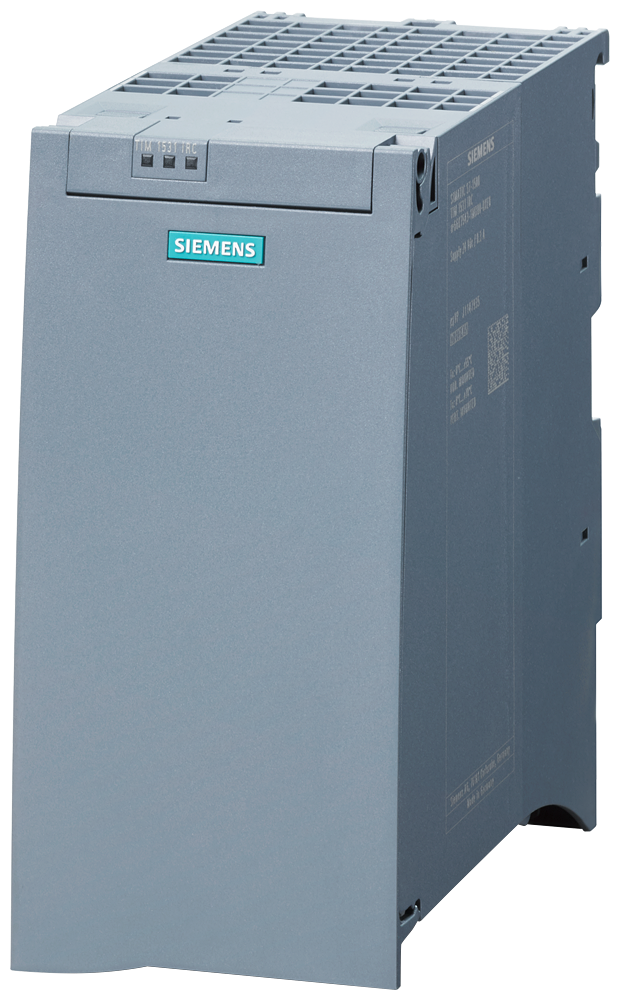

Siemens TIM 1531 IRC telecontrol module for SIMATIC S7-1500/400/300, SINAUT ST7, DNP3, IEC 60870-5
Description
About the TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks.
About the TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks.
The Siemens TIM 1531 IRC (6GK7543-1MX00-0XE0) is a telecontrol interface module for SIMATIC S7-1500, S7-400, S7-300, and ET200SP stations, supporting SINAUT ST7, DNP3, and IEC 60870-5-101/104 protocols over three RJ45 ports and one switchable RS-232/RS-485 interface. It buffers up to 250,000 events during a connection outage and synchronizes time from an NTP server or control center.
Certifications & Standards
- CE
- RCM
- RoHS
- EAC
- ATEX
- IECEx
- CCC-Ex
- FM
- EPD
Selection Notes
The double-wide format and three Ethernet ports plus a switchable RS-232/RS-485 interface let this TIM run parallel telecontrol paths - LAN/WAN via Ethernet and a classic dial-up or radio link via the serial port - buffering up to 250,000 events if either connection drops. Its cross-platform compatibility with S7-1500, S7-400, S7-300, and ET200SP backplanes makes it the choice when a single telecontrol module design needs to cover mixed-CPU installations rather than a PROFINET or PROFIBUS-only CM or CP module.
Applications
Suited to substations, pumping stations, and remote SCADA-connected sites running SINAUT ST7, DNP3, or IEC 60870-5-101/104 telecontrol protocols across mixed SIMATIC S7-1500, S7-400, S7-300, or ET200SP hardware.
Specification
Full specification
General 2
| product type designation | TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks. |
|---|---|
| product brand name | SIMATIC NET |
Transfer rate 4
| transfer rate: at the 1st interface | 10 ... 1000 Mbit/s |
|---|---|
| transfer rate: at the 2nd interface | 10 ... 100 Mbit/s |
| transfer rate: at the 3rd interface | 10 ... 100 Mbit/s |
| transfer rate: according to RS 232 | 300 ... 115200 bit/s |
Interfaces 9
| number of interfaces / according to Industrial Ethernet | 3 |
|---|---|
| number of electrical connections: for external data transmission / according to RS 232 | 1 |
| number of electrical connections: for power supply | 1 |
| number of slots: for memory cards | 1 |
| type of electrical connection: of Industrial Ethernet interface | RJ45 port |
| type of electrical connection: at interface 1 / for external data transmission | 9 pin Sub-D-connector, RS232 switchable to RS485 |
| type of electrical connection: for power supply | 2-pole plugable terminal block |
| slot version: of the memory card | SD 1.0, SD 1.1, SDHC, Siemens SMC |
| storage capacity / of the memory card / maximum | 32 Gibyte |
Show all 153 specifications ↓ Show less ↑138 more values in Identification, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Performance data / S7 communication, Performance data / IT functions, Performance data / telecontrol, Performance data / teleservice, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / routing, Product functions / security, Product functions / time, Product functions / position detection, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments / header, Standards, specifications, approvals / marine classification / header, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK7543-1MX00-0XE0 |
|---|---|
| Type designation | TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622276792 |
| ETIM class | EC001423 |
| eCl@ss | 27242208 |
Supply voltage, current consumption, power loss 7
| type of voltage / of the supply voltage | DC |
|---|---|
| supply voltage | 24 V |
| supply voltage / external / at DC / rated value | 24 V |
| consumed current: from external supply voltage / at DC / at 24 V / typical | 0.15 A |
| power loss [W] / with external supply voltage / at 24 V DC: in update mode / typical | 3.9 W |
| power loss [W] / with external supply voltage / at 24 V DC: in communication mode / typical | 3.9 W |
| product extension / optional / backup battery | No |
Ambient conditions 7
| ambient temperature: during operation | 0 ... 70 °C |
|---|---|
| ambient temperature: for vertical installation / during operation | 0 ... 50 °C |
| ambient temperature: for horizontally arranged busbars / during operation | 0 ... 70 °C |
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 7
| module format | Compact module S7-1500 double-wide |
|---|---|
| width | 70 mm |
| height | 147 mm |
| depth | 129 mm |
| fastening method: 35 mm DIN-rail mounting | No |
| fastening method: S7-300 rail mounting | No |
| fastening method: S7-1500 rail mounting | Yes |
Product features, product functions, product components / general 4
| product function: DynDNS client | No |
|---|---|
| number of units: note | Number of TIM per S7-1500: 1 |
| wire length: with RS 232 interface / maximum | 6 m |
| wire length: with RS 485 interface / maximum | 30 m |
Performance data / S7 communication 6
| number of possible connections / for S7 communication: maximum | 132; only via LAN |
|---|---|
| number of possible connections / for S7 communication: with PG connections / maximum | 4 |
| number of possible connections / for S7 communication: with OP connections / maximum | 4 |
| service: of SIMATIC communication / as server | Yes |
| service: SINAUT ST7 via S7 communication | Yes |
| service: PG/OP communication | Yes |
Performance data / IT functions 3
| number of possible connections: as server / by means of HTTP / maximum | 2 |
|---|---|
| number of possible connections: as server / by means of HTTPS / maximum | 2; 2 per Ethernet interface |
| number of possible connections: as email client / maximum | 1 |
Performance data / telecontrol 19
| suitability for use: node station | Yes |
|---|---|
| suitability for use: substation | Yes |
| suitability for use: TIM control center | Yes |
| control center connection | Systems with ST7, DNP3 and IEC 60870-5-101/104 protocol |
| by means of a permanent connection | Systems with ST7, DNP3 and IEC 60870-5-101/104 protocol |
| protocol / is supported: DNP3 | Yes |
| protocol / is supported: IEC 60870-5 | Yes |
| protocol / is supported: SINAUT ST1 protocol | No |
| protocol / is supported: SINAUT ST7 protocol | Yes |
| protocol / is supported: Modbus RTU | No |
| product function / data buffering if connection is aborted | Yes; 100000 data telegrams (ST7) or 250000 events (IEC 60870-5 / DNP3) |
| number of data points per device / maximum | 3000 |
| number of DNP3 masters: for Ethernet / maximum | 4 |
| number of DNP3 masters: with RS 232 interface / maximum | 4 |
| product feature / buffered message frame memory | Yes |
| transmission format: for SINAUT ST7 protocol with polling or spontaneous / 10-bit or 11-bit | Yes |
| operating mode for scanning of data transmission: with dedicated line/radio link / with SINAUT ST7 protocol | Polling, polling with time slot procedure |
| operating mode for scanning of data transmission: with dial-up network / with SINAUT ST7 protocol | spontaneous |
| hamming distance: for SINAUT ST7 protocol | 4 |
Performance data / teleservice 4
| diagnostics function / online diagnostics with SIMATIC STEP 7 | Yes |
|---|---|
| product function: program download with SIMATIC STEP 7 | Yes |
| product function: remote firmware update | Yes |
| product function: remote configuration | Yes |
Product functions / management, configuration, engineering 14
| product function / MIB support | Yes |
|---|---|
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| configuration software: required | STEP 7 Professional V14 SP1 (TIA Portal) or higher |
| configuration software: for CPU configuring / required / SINAUT TD7 block library for CPU | No |
| configuration software: for PG configuring / required / SINAUT ST7 configuration software for PG | No |
| storage location / of TIM configuration data | Flash or SD card of the TIM 1531 IRC |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
| identification & maintenance function: I&M2 - installation date | Yes |
| identification & maintenance function: I&M3 - comment | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Product functions / diagnostics 1
| product function / web-based diagnostics | Yes |
|---|
Product functions / routing 15
| service / routing / note | IP routing up to 1 Mbps |
|---|---|
| product function: static IP routing | Yes |
| product function: static IP routing IPv6 | Yes |
| product function: dynamic IP routing | No |
| product function: dynamic IP routing IPv6 | No |
| protocol / is supported: RIP v1 | No |
| protocol / is supported: RIPv2 | No |
| protocol / is supported: RIPnG for IPv6 | No |
| protocol / is supported: OSPFv2 | No |
| protocol / is supported: OSPFv3 for IPv6 | No |
| protocol / is supported: VRRP | No |
| protocol / is supported: VRRP for IPv6 | No |
| protocol / is supported: BGP | No |
| protocol / is supported: PPP | No |
| protocol / is supported: PPoE via DSL | No |
Product functions / security 6
| product function: MSC client via GPRS modem with MSC capability | Yes |
|---|---|
| protocol: is supported / MSC protocol | Yes |
| protocol: with Virtual Private Network MSC / is supported | TCP/IP |
| key length / for MSC / with Virtual Private Network | 128 bit |
| number of possible connections: as MSC client / with VPN connection | 1 |
| number of possible connections: as MSC server / with VPN connection | 127 |
Product functions / time 12
| product function / SICLOCK support | No |
|---|---|
| product function / pass on time synchronization | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: NTP (secure) | Yes |
| product component / hardware real time clock | No |
| product feature / hardware real time clock w. battery backup | No |
| time synchronization: from NTP-server | Yes |
| time synchronization: from GPS-signal | No |
| time synchronization: from control center | Yes |
| time synchronization: from mobile network provider | No |
| time synchronization: PC | No |
| time synchronization: manual setting | No |
Product functions / position detection 2
| product function: position detection with GPS | No |
|---|---|
| product function: pass on position data | No |
Standards, specifications, approvals 4
| certificate of suitability / CE marking | Yes |
|---|---|
| certificate of suitability / Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability / RoHS conformity | Yes |
| certificate of suitability / EAC approval | Yes |
Standards, specifications, approvals / hazardous environments / header 4
| certificate of suitability / ATEX | Yes |
|---|---|
| certificate of suitability / IECEx | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability / FM registration | Yes |
Standards, specifications, approvals / marine classification / header 1
| Marine classification association / Det Norske Veritas (DNV) | Yes |
|---|
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 128.35 kg |
| global warming potential [CO2 eq]: during manufacturing | 18.7 kg |
| global warming potential [CO2 eq]: during operation | 109 kg |
| global warming potential [CO2 eq]: after end of life | 0.65 kg |
Logistics 7
| Net weight | 0.356 kg |
|---|---|
| Package dimensions | 5 × 65 × 110 mm |
| Country of origin | DE |
| Shipping weight | 0.856 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK7543-1MX00-0XE0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- / CE marking
- / Regulatory Compliance Mark (RCM)
- / RoHS conformity
- / EAC approval
- / ATEX
- / IECEx
- / CCC / for hazardous zone according to GB standard
- / FM registration
- Environmental Product Declaration
Quick answers
Questions about the TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks.
What is the HS code of TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks. for customs?
The tariff (HS) code on file for TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks. is 85176200.
What is the EAN of TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks.?
The EAN (GTIN) of TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks. is 4047622276792.
Where does TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks. ship from, and how fast?
TIM 1531 IRC TIM 1531 IRC Communications module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS- 232/RS-485 interface for communication via classic wide area networks. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Guides
Guides for PLC & controllers
Main Types of Programmable Logic Controllers: A Complete PLC Guide
Compare the 5 main PLC types, IEC 61131-3 languages, scan-time sizing, and brand options to choose the right controller for your plant. Shop at...
Programmable Logic Controller Guide: Selection, Application, and Maintenance for Engineers
PLC selection guide for engineers covering IEC 61131 compliance, Siemens, Rockwell, Schneider, ABB comparison, scan time sizing, and wiring. Shop at Stoklink.
Reviews
Customer reviews
Series
Siemens SIMATIC S7-1500
- Brand
- Siemens
- Series
- SIMATIC S7-1500
