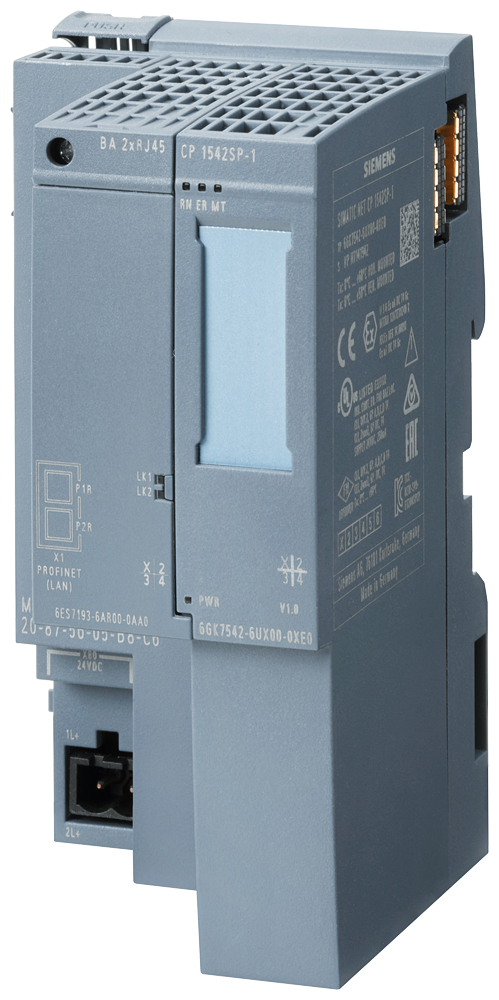

SIMATIC NETSiemens 6GK7542-6UX00-0XE0 SIMATIC NET CP 1542SP-1 ET 200SP PROFINET Communication Module
Siemens 6GK7542-6UX00-0XE0 SIMATIC NET CP 1542SP-1 communication processor for ET 200SP, PROFINET/Industrial Ethernet.
Description
About the CP 1542SP-1 Communications processor CP 1542SP-1 for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet; open IE communication (TCP/IP, ISO-on-TCP, UDP), PG/OP, S7 routing, IP broadcast/multicast, SNMPV1, DHCP, Email, IPV4/IPV6, time-of-day synchronization via NTP, access to web server of CPU, bus adapter required.
About the CP 1542SP-1 Communications processor CP 1542SP-1 for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet; open IE communication (TCP/IP, ISO-on-TCP, UDP), PG/OP, S7 routing, IP broadcast/multicast, SNMPV1, DHCP, Email, IPV4/IPV6, time-of-day synchronization via NTP, access to web server of CPU, bus adapter required.
The Siemens 6GK7542-6UX00-0XE0 is a SIMATIC NET CP 1542SP-1 communication processor that connects a SIMATIC ET 200SP station to Industrial Ethernet over an integrated 2-port switch at 10 to 100 Mbit/s. It handles open IE communication over TCP/IP, ISO-on-TCP, and UDP, PG/OP traffic, S7 routing, and NTP time synchronization, and requires a separate bus adapter.
Certifications & Standards
- CE
- UKCA
- RCM
- RoHS
- EAC
- ATEX
- IECEx
- CCC-Ex
- FM
- EPD
Selection Notes
Up to 2 CP 1542SP-1 modules can be plugged per ET 200SP CPU for redundant or segmented network connections, and simultaneous operation alongside a CM DP module is supported if PROFIBUS is also needed on the same station. The 32 open (T-block) connections plus 16 S7 connections give enough headroom for a station also running SNMP, DCP, and LLDP management traffic without exhausting connection resources. Because the bus adapter, RJ45, FC, or SCRJ, is ordered separately, confirm the physical media choice before ordering - the CP itself is media-agnostic at the module level.
Applications
Adding a second, independently addressable Industrial Ethernet connection to a SIMATIC ET 200SP station for network segmentation, redundant PG/OP access, open TCP/IP or UDP communication to third-party devices, or NTP-synchronized time distribution.
Specification
Full specification
General 2
| product type designation | CP 1542SP-1 Communications processor CP 1542SP-1 for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet; open IE communication (TCP/IP, ISO-on-TCP, UDP), PG/OP, S7 routing, IP broadcast/multicast, SNMPV1, DHCP, Email, IPV4/IPV6, time-of-day synchronization via NTP, access to web server of CPU, bus adapter required. |
|---|---|
| product brand name | SIMATIC NET |
Transfer rate 1
| transfer rate: at the 1st interface | 10 ... 100 Mbit/s |
|---|
Interfaces 3
| number of interfaces / according to Industrial Ethernet | 1 |
|---|---|
| number of electrical connections: at the 1st interface / according to Industrial Ethernet | 2 |
| type of electrical connection: at the 1st interface / according to Industrial Ethernet | via ET 200SP bus adapter (RJ45, FC, SCRJ), integrated switch |
Show all 75 specifications ↓ Show less ↑69 more values in Identification, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Performance data / open communication, Performance data / S7 communication, Performance data / multi-protocol mode, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments / header, Standards, specifications, approvals / Environmental Product Declaration, Declaration of Con- China RoHS Manufacturer Declara-, Logistics.
Identification 10
| Part number | 6GK7542-6UX00-0XE0 |
|---|---|
| Type designation | CP 1542SP-1 Communications processor CP 1542SP-1 for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet; open IE communication (TCP/IP, ISO-on-TCP, UDP), PG/OP, S7 routing, IP broadcast/multicast, SNMPV1, DHCP, Email, IPV4/IPV6, time-of-day synchronization via NTP, access to web server of CPU, bus adapter required. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622199619 |
| ETIM class | EC001423 |
| eCl@ss | 27242208 |
Supply voltage, current consumption, power loss 3
| type of voltage / of the supply voltage | DC |
|---|---|
| supply voltage | 24 V |
| power loss [W] | 6 W |
Ambient conditions 6
| ambient temperature: for vertical installation / during operation | -30 ... +50 °C |
|---|---|
| ambient temperature: for horizontally arranged busbars / during operation | -30 ... +60 °C |
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 4
| width | 60 mm |
|---|---|
| height | 117 mm |
| depth | 74 mm |
| fastening method: 35 mm DIN-rail mounting | Yes |
Product features, product functions, product components / general 2
| number of units: per CPU / maximum | 2 |
|---|---|
| number of units: note | 2 CPs can be pluged in per CPU, simultaneous operation with BA Send and CM DP is possible |
Performance data / open communication 2
| number of possible connections / for open communication: by means of T blocks / maximum | 32 |
|---|---|
| data volume: as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum | 65536 byte |
Performance data / S7 communication 2
| number of possible connections / for S7 communication: maximum | 16 |
|---|---|
| number of possible connections / for S7 communication: with OP connections / maximum | 16 |
Performance data / multi-protocol mode 1
| number of active connections / with multi-protocol mode | 32 |
|---|
Product functions / management, configuration, engineering 9
| product function / MIB support | Yes |
|---|---|
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v3 | No |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| configuration software: required | STEP 7 Professional V14 (TIA Portal) or higher |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Product functions / diagnostics 1
| product function / web-based diagnostics | Yes; via ET 200SP CPU |
|---|
Product functions / security 1
| product function: blocking of communication via physical ports | Yes |
|---|
Product functions / time 5
| product function / SICLOCK support | Yes |
|---|---|
| product function / pass on time synchronization | No |
| protocol / is supported: NTP | Yes |
| protocol / is supported: NTP (secure) | No |
| time synchronization: from NTP-server | Yes |
Standards, specifications, approvals 5
| certificate of suitability / CE marking | Yes |
|---|---|
| certificate of suitability / UKCA marking | Yes |
| certificate of suitability / Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability / RoHS conformity | Yes |
| certificate of suitability / EAC approval | Yes |
Standards, specifications, approvals / hazardous environments / header 4
| certificate of suitability / ATEX | Yes |
|---|---|
| certificate of suitability / IECEx | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability / FM registration | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 207.05 kg |
| global warming potential [CO2 eq]: during manufacturing | 19.13 kg |
| global warming potential [CO2 eq]: during operation | 187.74 kg |
| global warming potential [CO2 eq]: after end of life | 0.18 kg |
Declaration of Con- China RoHS Manufacturer Declara- 2
| formity tion | For use in hazard- |
|---|---|
| General Product Approval China RoHS | ous locations |
Logistics 7
| Net weight | 0.201 kg |
|---|---|
| Package dimensions | 110 × 62 × 24 mm |
| Country of origin | DE |
| Shipping weight | 0.701 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
